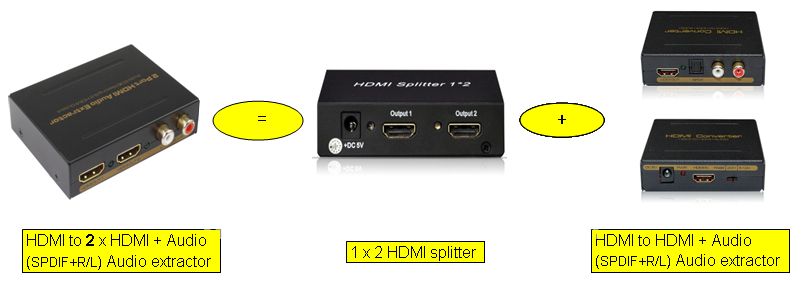

HDMI Splitter 1×2 HDMI + Audio (SPDIF+L/R) Audio Extractor, 3D,1080P

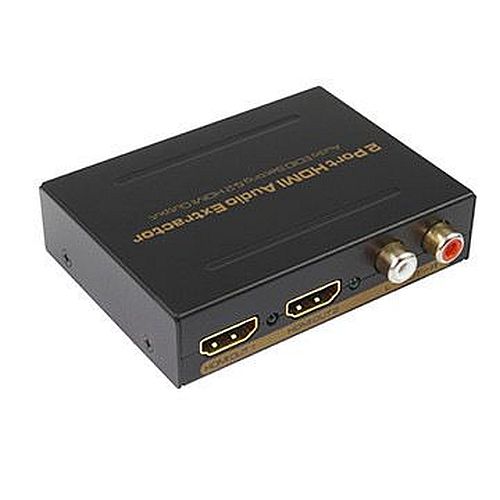

The 2 Port HDMI Audio Extractor can allow two HD Display/TV connected to one HDMI Source and also can extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or 2 channel analog audio output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format output. It is one perfect audio extractor for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.

FEATURES：

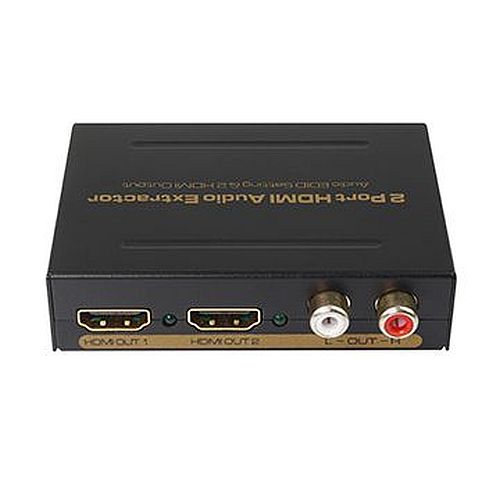

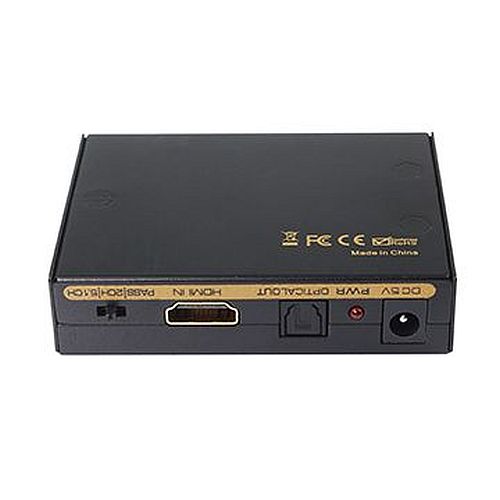

• 1X HDMI input and 2X HDMI output，can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
• Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
• Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
• Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
• LED indication: when source or sink is working, LED relative to is light.
• Uses 24bit /192KHz DAC
• No loss of quality
• Installs in minutes

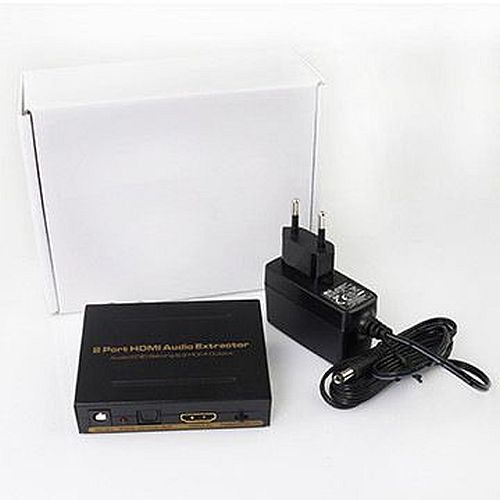

• DC5V/1A power adapter

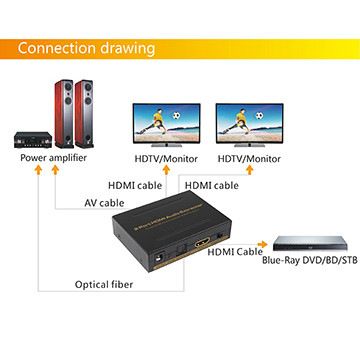

OPERATIONG AND CONNECTION:

1. Connect one HDMI cable from a DVD/Blu-ray player into the HDMI input port of extractor.
2. Connect one HDMI cable from TV/Monitor into the HDMI output port of extractor.
3. If you need a digital audio, connect one optical fiber from digital power amplifier into the SPDIF output port of extractor.
4. If you need an analog audio, Connect two AV cables from analog power amplifier/TV into the analogaudio output ports of Extractor, the channel must correspond, and switch EDID mode in 2CH.
5. Connect 5V power supply to the extractor and inserted into the power socket.

SPECIFICATIONS:

HDMI resolution …………………………………………………… up to 1080P/50/60fs (3D 24/30fs)

Support video color format …………………………..…..….……. 24bit/deep color 30bit,36bit

HDMI Audio Format …….. DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD

PDIF Digital audio format ……………………………….. Dolby Digital (AC3)/DTS/LPCM 2CH

HDMI Max bandwidth …………………………………………………………………….. 225MHz

HDMI Max baud rate …………………….………………….…………………………. 6.75Gbps

Input/Output TMDS signal ………….……………………………….……. 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………………………………..……..… 5Volts p-p (TTL)

DAC sample frequency range …………………………………………….…..…. 32～192 KHz

DAC Bit rate range …………………………………………………………………… 16～24 Bit

Analog output level(1kHz@0dB) ………………………………………………………………………… 1V RMS

SNR @ 0dB(CCIR/ARM) ………………………………………………………….……… ≥90dB

Distortion ……………………………………………………………………………….…… ≤0.1%

Frequency response ………………………………………………………………. 20Hz~20KHz

HDMI input cable distance ……………………………… ≤15m AWG26 HDMI standard cable

HDMI output cable distance …………………………….. ≤20m AWG26 HDMI standard cable

Max working current ……………………………………………..……………….………… 600mA

Power adapter format Input …………….….………… AC 100V～240V 50HZ/60Hz, DC5V/1A

Operating Temperature range ……..………………….………………….…………. -10 to +55℃

Storage Temperature range ………………………………………………………….. -20 to +60℃

Operating Humidity range ………………………….….…….. 10 to 90%RH (No Condensation)

Storage Humidity range ………………………….…………….. 5 to 95%RH (No Condensation)

Case Dimension (L x W x H) ………………………..………..….………………… 85x62x21 (mm)

Weight …….…………………………….……………………..………………………………….. 130g

Notes:

1. Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
2. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
3. All parts will be free from the strong shake, hit, fall.
4. Touching the power adaptor with the wet hands is prohibited.
5. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
6. Pls turn the power off when the machines not used for long time.
7. Pls do not open the cover and do not touch the inside parts.
8. Pls use the original factory power adaptor.
