Zidoo Z1000 4K HDR network player

Zidoo Z1000 – The latest 4K UHD network player with HDD from the Zidoo Android TV Box family.

Key features of the Zidoo Z1000 4K HDD network player:

Video

• Full 4K 60Hz support on HDMI 2.0a connector, HDR / HDR10, 10-bit color depth, 1.07 billion colors.
• New image quality optimization technology and optimized conversion algorithm from HDR to SDR. That’s why Zidoo Z1000 allows you to accurately reproduce the original colors during 4K HDR playback, also without an HDR TV. Expanded SDR HDR mapping function.
• Accurate and automatic frame switching and resolution (23,976.59.94,25,30.50,60).
• H.265 / HEVC 10bit hardware video decoding.
• Full Blu-Ray navigation menu (also UHD) and DVD.
• Extended function of editing the subtitle display, size, color, font. Online subtitle download support. Support for special effects in SUP and ASS subtitles.
• Zidoo Poster Wall function. Automatic classification and sorting of movie, series and music libraries.
• Kodi ZDMC and access to the Google Play store

Audio

• Support for full passthrough multi-channel HD-Audio multichannel audio, including the highest Dolby Atmos and DTS: X formats, as well as stereo downmix.
• Plays flac 24bit / 192kHz natively via HDMI, optical coaxial and USB – with connected DAC.
• Support for other lossless audio formats: SACD, DFF, DSF, APE, FLAC, WAV and etc. as well as CUE tracks. The ability to control your mobile phone without having to turn on the image display device to listen to music.
• Only on Zidoo, sampling frequency on the SPDIF connector – 192KHz. The limits of Android capabilities have been exceeded for the first time.
• Plays SACD – conversion up to 176 kHz.

Functionality

• Zidoo is one of the largest suppliers of devices with Realtek processors. As a result of the cooperation of both companies and collecting experience of hundreds of thousands of users, an efficient and optimized 1296 layout was created
• New, improved, Realtek 1296 quad-core processor, 2GB of memory, 16GB of built-in eMMC memory, Gigabit LAN network card, WiFi in 802.11ac 2T2R 867 Mb / s standard and Bluetooth 4.2.
• Compared to the Z series, the manufacturer has optimized the player’s hardware capabilities
• Android 7.1 and parallel OpenWRT with NAS and torrent client function
• Premium system overlay – known from the X20 series.
• A new, elegant, black housing made of aluminum.
• Large LED display.

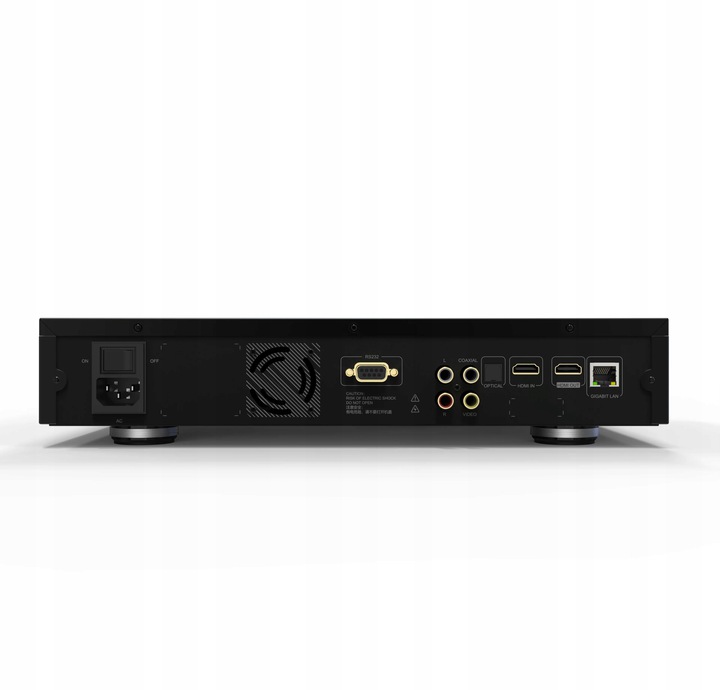

• A wealth of interfaces: 1x SATA 3.0 3.5 ″ Pocket, 1x external SATA 3.0 connector, 2x USB 2.0, 2x USB 3.0, 1x Spdif Toslink, 1x Spdif Coaxial, 1x composite video, 1x RCA Audio (left and right), 1x RS232, 1x HDMI OUT 2.0a output, 1x HDMI IN 2.0 input.
• Independent SATA 3.0 ports. Patented HDD metal pocket solution.
• The new, improved WiFi 2T2R MIMO module supports speeds of up to 867 Mb / s.
• Intelligent temperature control, efficient fan.
• Possibility of remote control from phones, tablets or PC (TV does not have to be running)
• Support HTTP, RS232 (on / off), Control4
• Support for network protocols: NFS, UPNP, DLNA, SMB V2, SMB V1
• HDMI input, possibility of connecting a second source with PIP function and network streaming. Perfect for connecting e.g. Chromecast and extending the device’s VOD function.
• Ergonomic, backlit IR remote with command learning function.

Cooperation between Zidoo and Realtek

Zidoo is one of the largest suppliers of devices with Realtek processors. As a result of the cooperation of both companies and collecting experience of hundreds of thousands of users, an efficient and optimized 1296 layout was created

The latest technologies and quality assurance

Quality is the driving force of large projects. ZIDOO attaches great importance to the quality of its products, which use the highest quality electronic components in accordance with environmental standards around the world. Z1000 has not only a stable structure, but also good heat dissipation properties, e.g. the motherboard uses gold precipitation technology, which guarantees the product’s lifetime.

Functional remote with learning function

Illuminated, fully functional remote control with the function of learning IR commands. Comfortable remote control “without a dead angle”.

Extensive support for networking protocols

Support for NFS, SMB V2, SMB V1, DLNA UPNP and many other network protocols means that the Z1000 can work successfully on any network.

Technical data

• Chipset: REALTEK RTD1296DD
• Maximum resolution: 4K 60Hz HDR
• CPU architecture: ARM CORTEX A53
• Number of cores: 4
• Clock speed: 2 GHz
• GPU: MALI-T820MP3
• System: ANDROID 7.1 + OPENWRT
• RAM: 2GB
• Built-in memory: 16GB
• HDD pocket: 1x 3.5 ″ SATA 3.0
• USB 2.0: 2
• USB 3.0: 2
• Other: SATA 3.0 external
• Bluetooth: Yes. 4.1
• Network connection: 1xRJ45, Gigabit Ethernet
• WiFi: DUAL-BAND 802.11 A / B / G / N / AC 2X2 MIMO
• HDMI output: 1x HDMI 2.0A
• HDMI input: 1x HDMI
• Composite Video: 1
• Stereo L / R Audio: 1
• S / PDIF Toslink: 1
• S / PDIF Coaxial: 1
• RS-232: 1
• Video codecs: HDR, 10-BIT HEVC / H.265 to 4K @ 60FPS, VP9 to 4K @ 60FPS, H.264 to 4K @ 24FPS
• Audio Codecs: Support HD Audio multichannel passthrough and downmix to stereo 3D SBS: Yes
• 3D Top Bottom: Yes
• 3D Frame Packing: Yes
• Blu-Ray 3D: Yes
• DVD ISO: Yes
• Blu-Ray ISO: Yes
• Dolby Digital (AC3) Downmix: Yes
• Dolby Digital (AC3) Passthrough: Yes
• Dolby TrueHD Downmix: Yes
• Dolby TrueHD Passthrough: Yes
• DTS Downmix: Yes
• DTS Passthrough: Yes
• DTS-HD MA Downmix: Yes
• DTS-HD MA Passthrough: Yes
• Kodi: ZDMC version – installed separately
• Google Play: Yes – Installed separately
• Fan: Yes
• Pilot: IR
• Length (mm): 350
• Depth (mm): 240
• Height (mm): 75
• Weight (kg): 2.8
• Power supply: 100-240V ~ 50 / 60Hz Max1.3A
