Zidoo X20 Pro Player 4K UHD HDR10 DAC Saber Atmos

Main features:

1. Standard size 430 MM, fully aluminum housing
2. New improved version of the Realtek 1296 Quad Core 64 bit processor A53, High quality SMPS system with high power
3. 2 GB DDR4 RAM, 16 GB eMMC embedded memory, gigabit LAN, 802.11 AC 2T2R 867Mbps WIFI, Bluetooth 4.1
4. Wealth of connectors: SATA3.0 * 2, USB 2.0 * 2, USB 3.0 * 1, TYPEC * 1, Coaxial * 1, Optical * 1, AV Output * 1, Left / Right channel * 1, RS232 * 1, Composite * 1 , HDMI OUT * 2, HDMI IN * 1
5. Full functional, remote control Bluetooh 3 in 1, remote control “without a dead angle”
6. Large LED display
7. Independent, double SATA 3.0 ports, Patented, metal built-in disk bay for installing two high capacity disks
8. Android 7.1 system with access to Google Play and parallel operating OpenWRT with NAS and torrent functions.
9. Intelligent temperature control, efficient two fans
10. Dual HDMI output ports (audio and video separation)
11. 4K HDR playback without TV with HDR, thanks to the optimized HDR algorithm for SDR
12. Full bandwidth support for multichannel HD-Audio multichannel, including the highest Dolby Atmos and DTS: X formats, like the downmix.
13. Accurate frame switching and resolution. (23.97659.94,25,30,50,60)
14. Output signal 4K 60P, color area: HDR / HDR10, 10-bit color depth, 10.7 million colors
15. Supports hardware H.265 / HEVC video decoding
16. Support for the full BD navigation menu
17. Enhanced subtitles function, support for random changes of any fonts with different color effects; Support for downloading subtitles online; Support for special effects in SUP and ASS subtitles
18. Wall-Poster function. Automatic classification and sorting of movie and music libraries. Possibility of remote control from phones, tablets or PC (TV does not have to be running)
19. Supports SACD, DFF, DSF, APE, FLAC, WAV and etc. Lossless audio formats; CUE path support; It supports the control of the mobile phone without having to turn on the device displaying the image in order to listen to music
20. Support for network protocols: NFS, SMB V2, SMB V1
21. HTTP support, RS232 (Control on-off), Control4
22. Dedicated network player – no play store and google services support
23. Support Tidal hifi 192kHz, Tidala must be installed with apk
24. Plays native flac 24 bits / 192kHz via HDMI outputs, optical coax and USB – with connected DAC
25. Plays SACD – conversion to 176 kHz

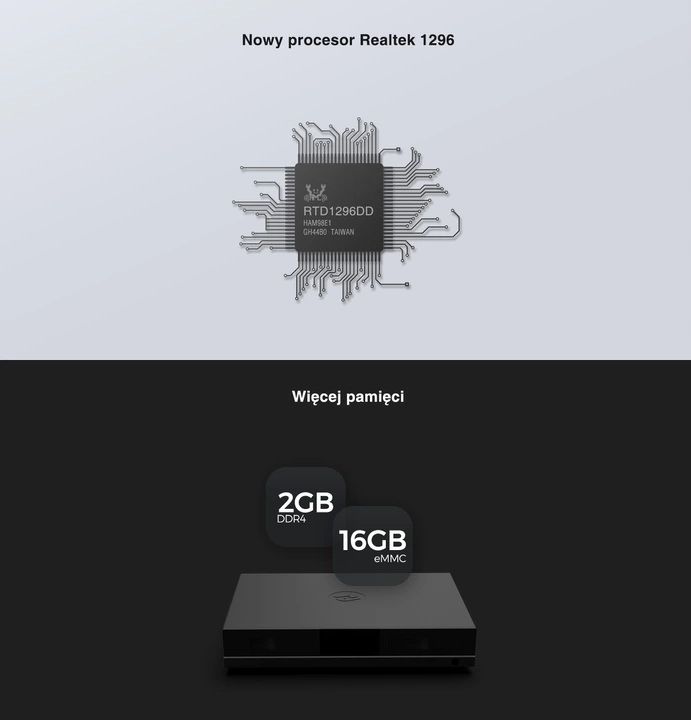

The new, improved version of the Realtek 1296 Quad-Core 64 bit A53 processor, created as a result of cooperation between Zidoo and Realtek and based on Zidoo’s experience. High quality SMPS system with high power.

Zidoo X20 is equipped with 2 GB DDR4 RAM memory and 16 GB of built-in eMMC memory. Good hardware configuration makes the X20 a powerful network player.

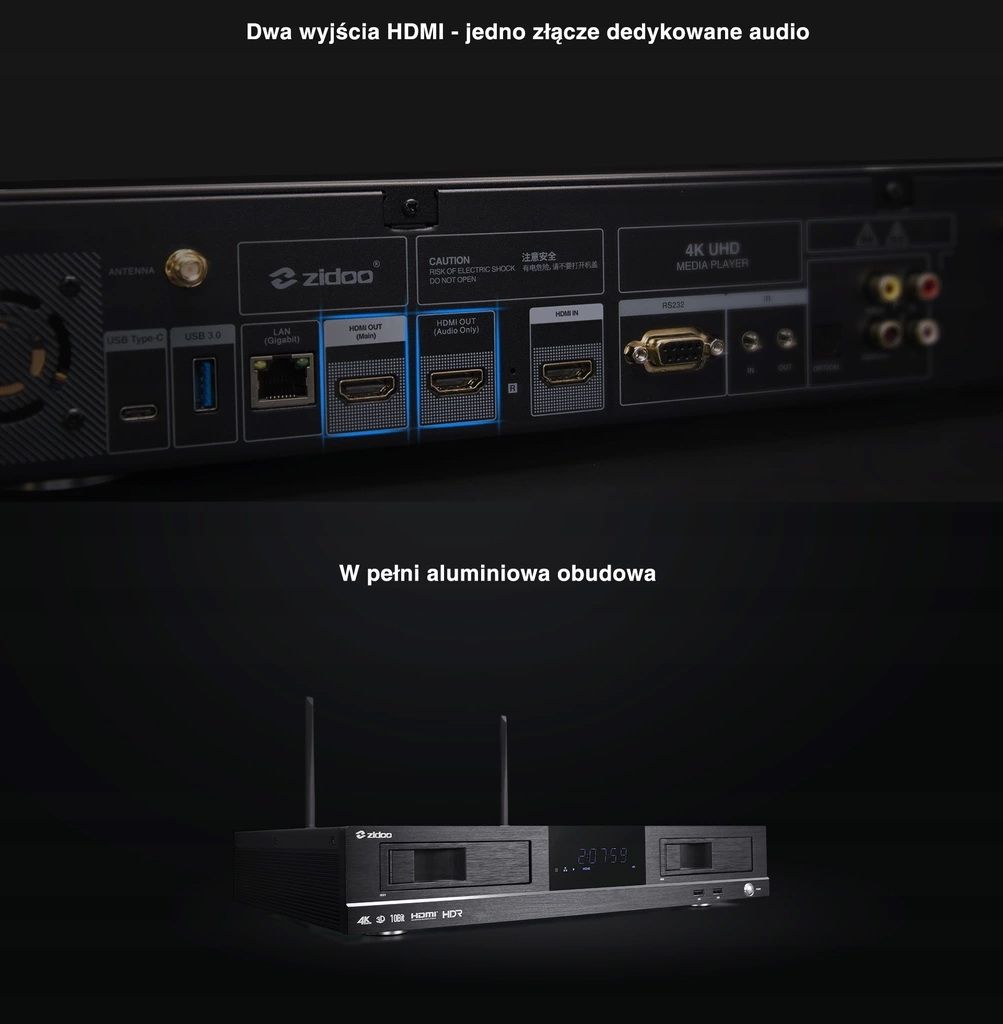

The Zidoo X20 model has been equipped with an additional HDMI output dedicated exclusively to audio signals, enabling the reception of an existing, older device, eg a Full HD receiver, audio content from the 4K stream and HDCP 2.2. At the input resolution of 4K @ 60Hz on one HDMI output we get the signal without changes, and on the second HDMI output a black image of lower resolution with unchanged sound is displayed. Thanks to such a solution, we can use Zidoo X20 simultaneously, 4K TV and receiver or other device supporting sound with maximum 1080p input resolution.

The player supports full passthrough as well as downmix of all HD-Audio multi-channel audio formats, including Dolby Atmos and DTS: X.

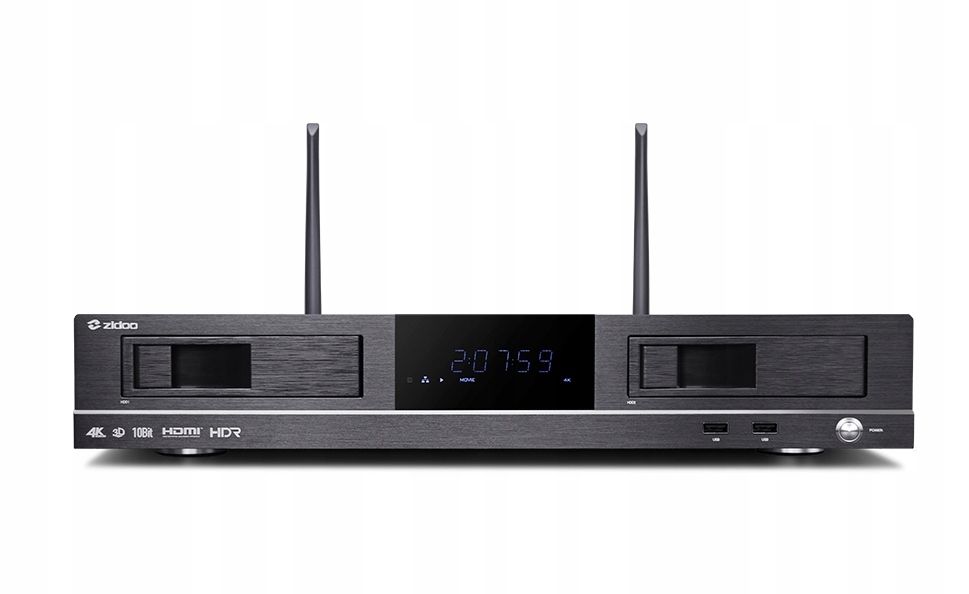

Standard size 430mm, fully aluminum housing with large LED display, light blue screen and elegant metal housing complement each other. The playing time is always visible on the display screen.

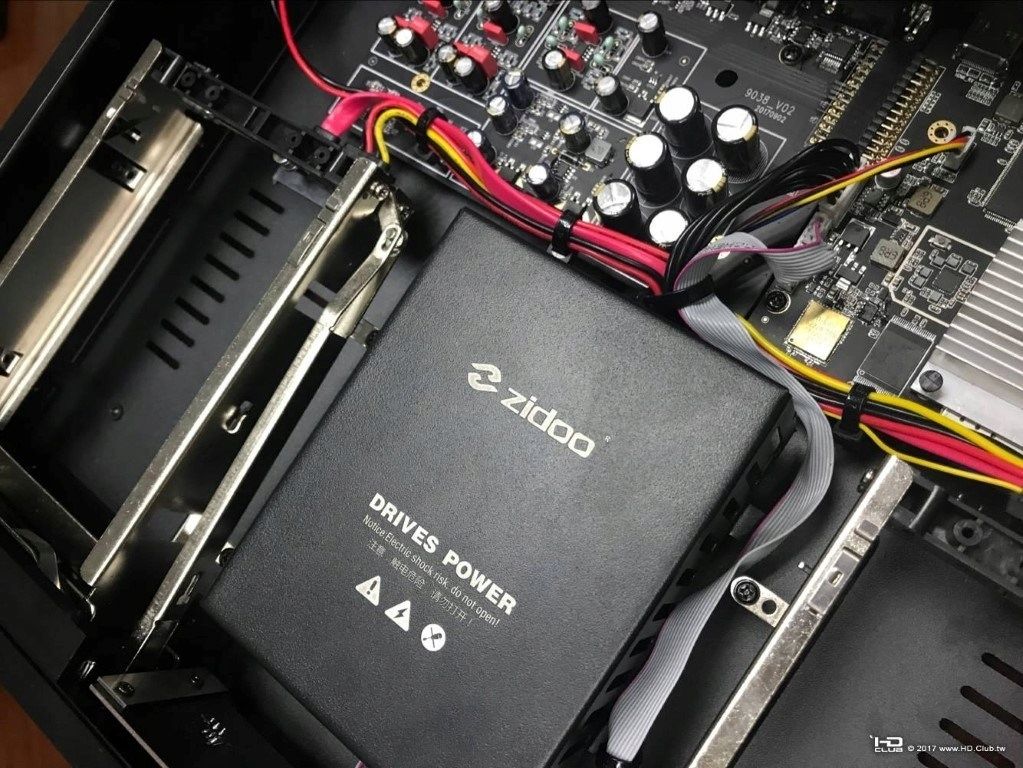

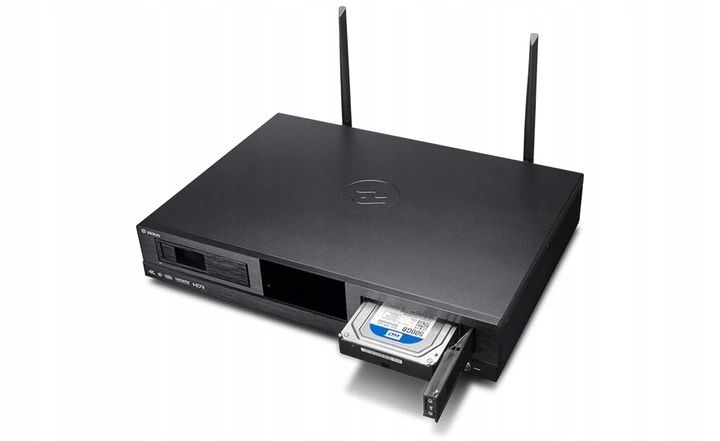

Zidoo X20 is equipped with two independent 3.5 “HDD disk pockets. The disks can be mounted at the same time, easy to insert and remove, without the need for specialized tools.

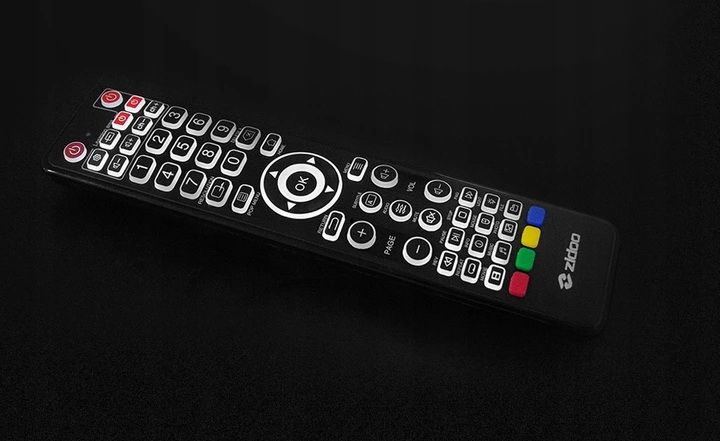

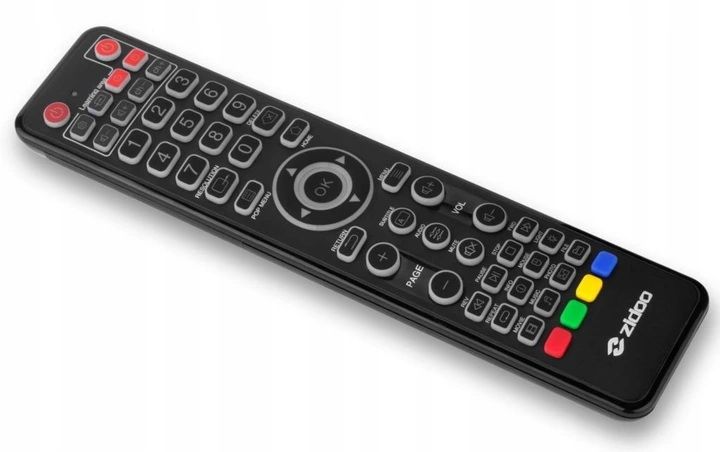

Comfortable and fully functional, backlit remote control Bluetooh 3in1 offers control “without a dead angle”.

• Processor: Realtek RTD1296 quad core Cortex A53 processor
• Graphics: ARM Mali-T820 MP3 GPU
• RAM memory: – 4GB DDR4
• Flash memory: – 32GB eMMC flash, 2x SATA 3.0 for connecting 2.5 or 3.5 “drives
• Android 7.1 OS with access to Google Play & OpenWRT system
• Video:

  1x HDMI 2.0a OUT with HDCP 2.2, 4K 60 Hz. 1x HDMI OUT 1.4

  1x HDMI 2.0 IN with HDCP 2.2 PiP support, recording support, and UDP broadcasting

  1x RCA composite

  Decoding – HDR10, HDR to SDR conversion, 10-bit HEVC / H.265 to 4K @ 60fps, VP9 to 4K @ 60 fps, H.264 to 4K @ 24 fps, automatic clashing (23.976 and 29.94 fps)

  Full Menu BD

• Audio

  ESS 9038Q2M DAC

  7.1-ch HD audio pass-through via HDMI, including Dolby Atmos and DTS: X (and downmix)

  24bit, 192Khz playback – support for SACD, DFF, DSF, APE, FLAC, WAV and other lossless formats

  optical and coaxial S / PDIF

  RCA stereo audio

  XLR Audio output

• Connectivity – Gigabit Ethernet, 802.11ac 2T2R MIMO WiFi up to 867 Mbps, Bluetooth 4.0
• USB – 1x USB 3.0 port, 2x USB 2.0 port, 1x USB type C
• Control – RS232, IR, front panel, on / off button
• Power supply – Built-in, 100-240VAC 1.3A 50/60 Hz input
• Materials – Aluminum
• Dimensions – 430 x 303 x 80 mm (not counting the antenna)
• Weight – 6 kg

Quality is one of the x20 manufacturer’s currencies. Zidoo attaches great importance to the quality of products. The Zidoo models use the highest quality electronic components that meet high environmental standards. The X20 not only has a solid structure, but it also catches heat well. The ports are gold-plated and the high-quality built-in power supply guarantees a significantly longer product life.

H.265 HEVC hardware decoding with 4Kx2K 60Hz and the use of professional image processing techniques. Everything to improve and increase the importance of each pixel and to make the image even clearer.

HDMI 2.0aw Zidoo X20 supports HDR transmission, which will optimize image quality on the hardware side; HDR provides more image details – it improves the dark picture. Zidoo X20 provides 4K HDR playback without TV with HDR, thanks to an optimized HDR to SDR transmission algorithm

A wide range of HDR / HDR10 colors and 10 bit color depth, 1 billion colors and high color reduction.

The full navigational Blu-ray menu makes movie control much easier. More fun with an ordinary movie.

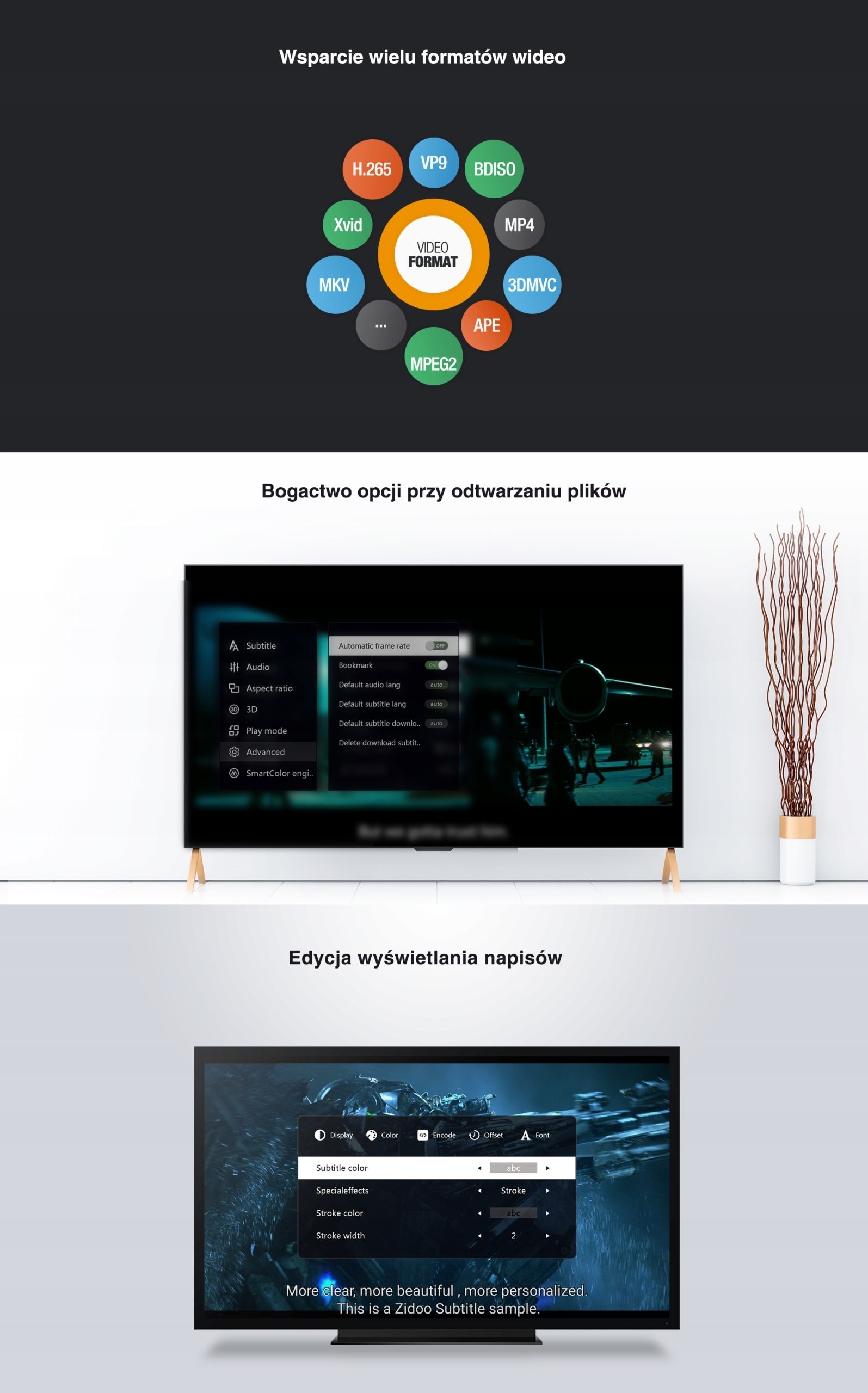

Zidoo X20 Pro supports almost all formats and video codecs.

The built-in powerful multimedia player supports:

• 3D MVC (Blu-ray, MKV),
• subtitles (PGS, external subtitles),
• 3D depth of field (FOD).

In addition, the specified playing time and the possibility of advanced subtitle settings.

A unique subtitling system – automatic online search. In addition, subtitles can be edited at your own discretion.

Zidoo music player 2.0 has a new user interface. It supports natively SACD, DFF, DSF, APE, FLAC, WAV and many other audio formats as well as CUE display and has a built-in equalizer. Automatically downloads album art. Allows you to control the music player directly from the phone or browser mac / windows / linux.

Thanks to this feature, Zidoo does not need to operate the display, which makes it a real network player.

Zidoo X20 can be integrated in Smart Home control installations. It supports HTTP, RS323, Control4 – which allows for many control options. It also allows control with the Logitech Harmony family of keyfobs.

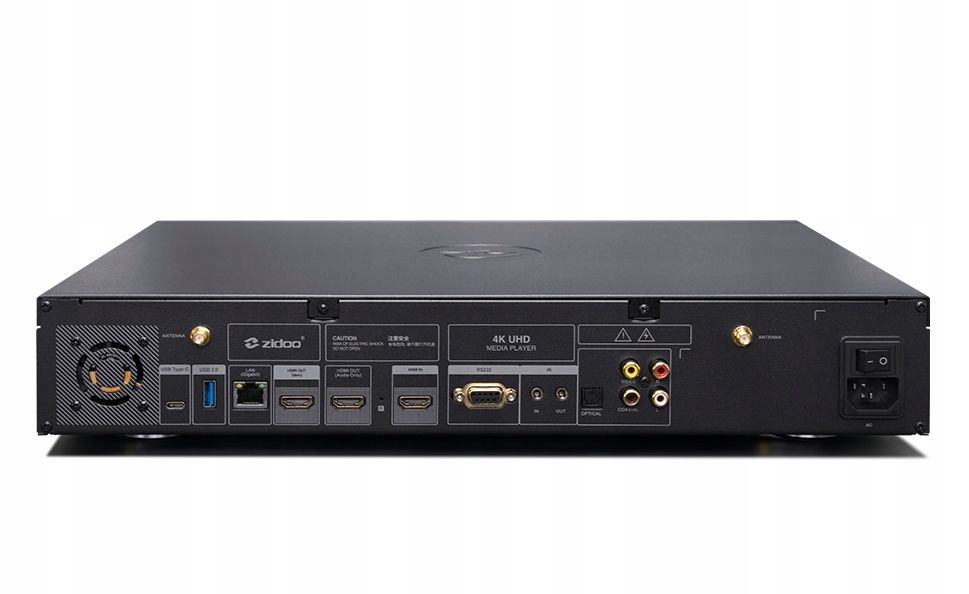

Wealth of connectors: SATA3.0 * 2, USB 2.0 * 2, USB 3.0 * 1, TYPEC * 1, Coaxial * 1, Optical * 1, AV Output * 1, Left / Right channel * 1, RS232 * 1, Composite * 1 , HDMI OUT * 2, HDMI IN * 1. Android 7.1 OS with full access to Google Play. The device also has an OpenWRT system that allows you to use the device as a NAS server. More: www.openwrt.org
