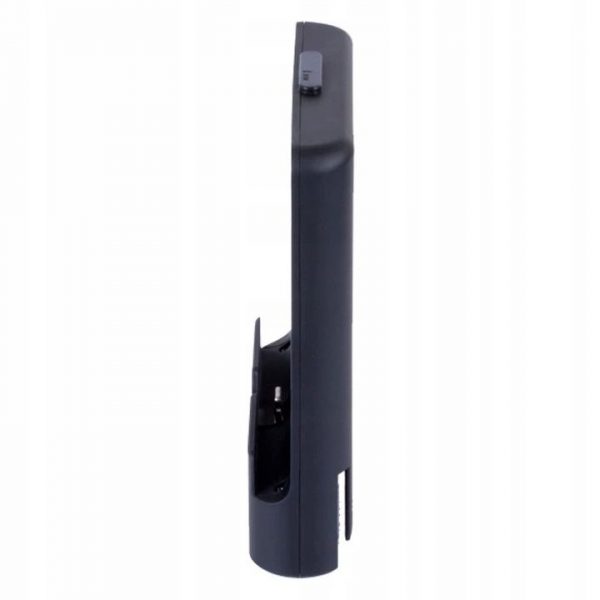

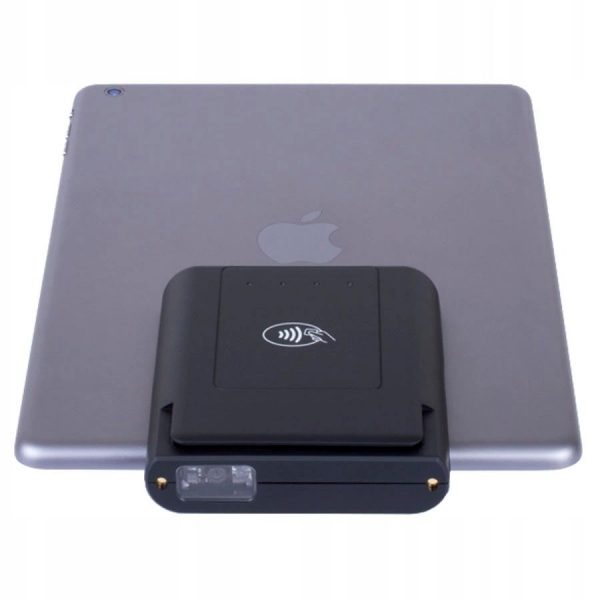

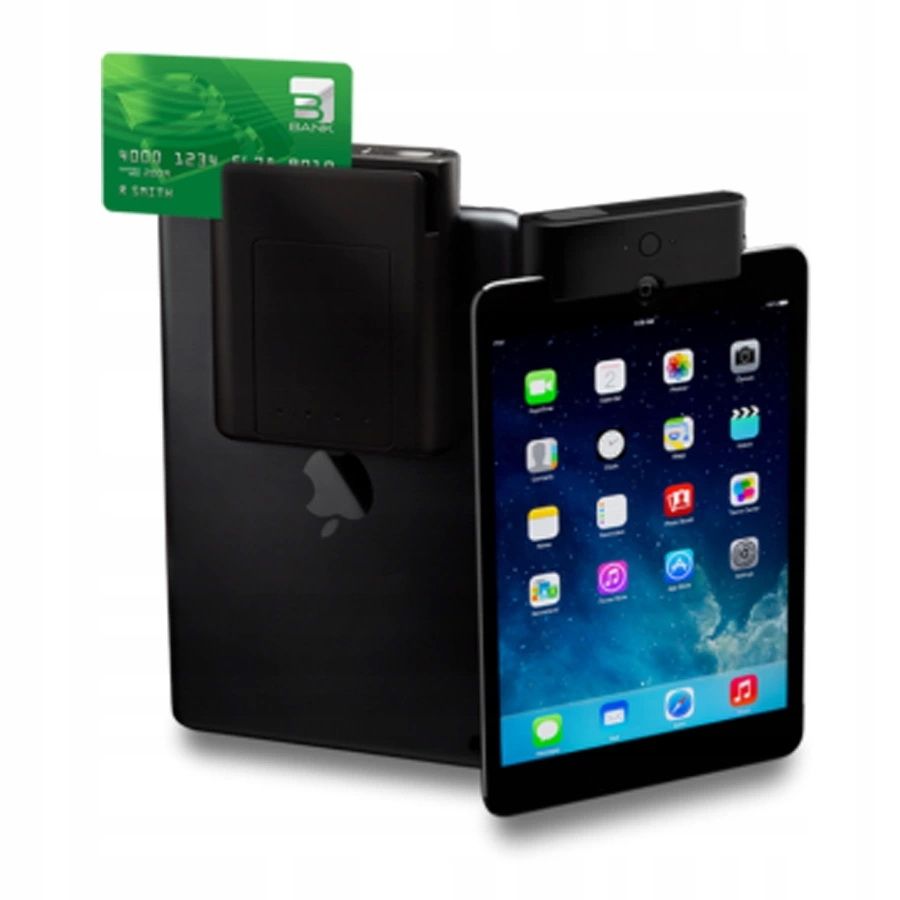

INFINEA TAB MINI is a solution developed especially for devices with iOS. It is a combination of a 2D barcode scanner and a magnetic card reader, transforming these devices into advanced mobile solutions. In contrast, wireless communication options enable the transfer of collected data in real time. The ergonomic shape and light weight make it an ideal solution wherever mobile devices are necessary. Its advanced features, performance, options and accessories make it suitable for use in many areas.

Depending on the needs, the devices can be equipped with 2D readers, magnetic card readers, BT and RFID modules. Safety, ergonomics and work efficiency improve the available protective casing, holsters and pistol grips, desk chargers.

All devices are compatible with over 100 fully-functioning iOS applications. We also provide SDKs to enable the development and integration of new and existing applications.

INFINEA TAB MINI is dedicated to iPad Air, iPad Air 2, iPad mini 2, iPad mini 4, iPhone 6+.

• Keyboard and buttons: Scan button
• Magnetic card reader: Three paths – two-way
• Encryption of magnetic card reader: AES-256, DUKPT for AES-128 and 3DES
• Chip card reader: 2D reader
• MiFARE Mini MiFARE Classic 1K / 4K, MiFare Ultra-Light / Ultra-Light-C, MiFARE PLUS 2K / 4K, ISO 14443 A & B, ISO 15693, DESFire, FeliCa: Opticon MDI3100 * – image sensor 752×480 CMOS (option),
• Supported 1D and 2D Symbols: Connections
• BARCODE 1D: JAN / UPC / EAN incl. Add on, Codabar / NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5 , Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI / Plessey, S-Code, Telepen, Tri-Optic, UK / Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D CODE: Aztec Code, Aztec Runes, Chinese Sensitive code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2-5), MicroPDF417, Micro QR Code, PDF417, QR code: 9 – Apple connector, USB BT 2.0 Class 2 (optional) – SPP – Serial port, mini USB type C
• Connections: 9-pin Apple connector, USB BT 2.0 Class 2 (optional) – SPP – Serial port, mini USB type C
• Dedicated devices: iPad Air, iPad Air 2, iPad mini 2, iPad mini 4, iPhone 6+
• Signaling: 2 LEDs indicating battery status and device status, four LEDs for payment transactions
• Audio functions: Electromagnetic buzzer
• Power supply: DC 5V via mini USB, 5V DC power supply for single or 5-station charging station
• Battery: 3.7V / 1100mAh lithium-ion battery
• Reliability: 1,000,000 stretches with a magnetic card
• Certifications: CE, FCC, PCI PTS 3.x, EMV Level 1 Contactless, VISA payWave, MasterCard Contactless, American Express expressPay, Discover Zip, Apple® Mfi
• Dimension X x D x H: 103 x 88 x 24 mm
• Weight: 140 g with battery and 2D code reader (without iPad Mini)
• Operating temperature range: -10 ° C to + 40 ° C / 5 to 90% RH
• Storage temperature range: -20 ° C to + 50 ° C / 5 to 90% RH
• Accessories: Charging station for one device (GT1), charging station for 5 devices (GT5), holster, stand
