Converter SDI to HDMI Scaler with Extend Transmission Function

Specifications:

Features:

• SDI Input Format: Support SD-SDI, HD-SDI and 3G-SDI
• Video Output Signal: one SDI output(loop output), one HDMI signal output
• Support SDI Resolution:SD-SDI:480I@60Hz,576I@60Hz; HD-SDI:720P@50Hz,720P@ 60Hz, 1080I@50/60Hz,1080P@25 Hz,1080P@30 Hz;3G-SDI:1080P@50/60Hz.
• HDMI Output:720P/ 60Hz,1080P/ 60Hz,PASS Three Modes For Choose (Default Pass Mode)
• Support SDI transmission Speed: SD-SDI:270Mb/s,HD-SDI:1.485Gb/s and 3G-SDI: 2.97Gb/s.
• Input Audio Signal: SDI Built-in
• One SDI signal loop output
• Support up to 3G-SDI
• Support Auto Recognition Resolution
• Audio and Video Output Simultaneously
• No loss of quality
• Installs in minutes
• Wide voltage input, It can support DC 5V~ 12V input

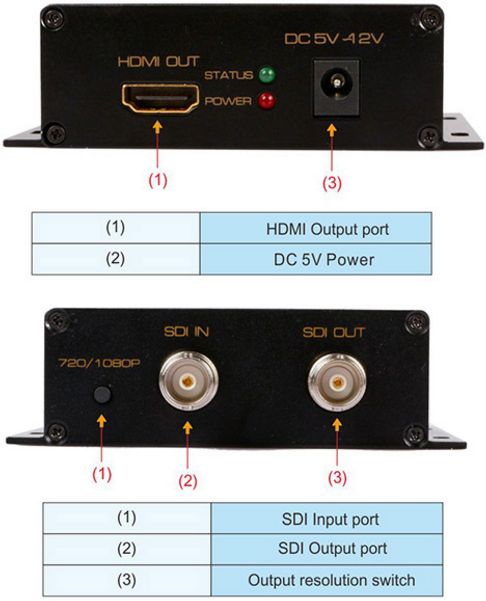

Operating and Connecting:

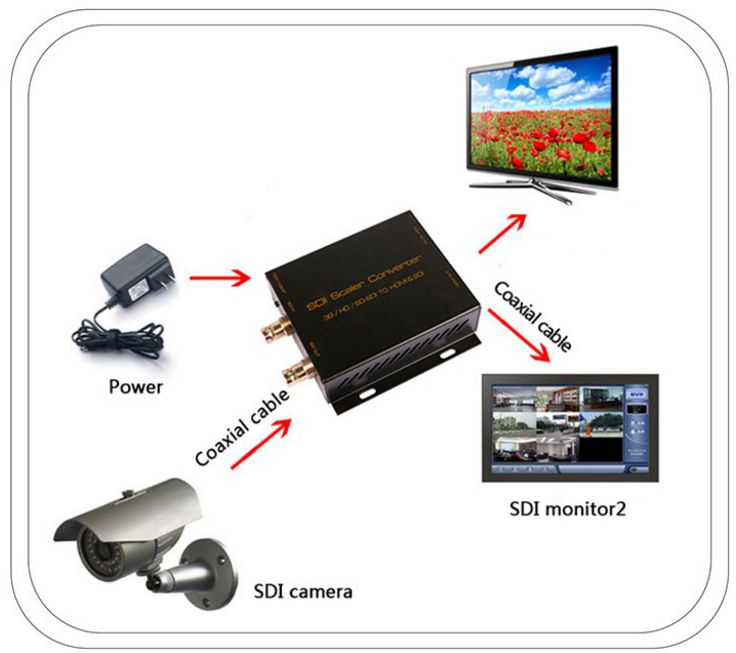

• To use the coaxial cable to connect the SDI source with the SDI input port of the converter.
• To use the HDMI cable to connect the Display with the HDMI output port of the converter.
• To use the coaxial cable to connect the SDI Display with the loop out SDI port or cascade the other SDI to HDMI converter
• To connect the power adaptor with the converter.

Notes:

• Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
• The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
• All parts will be free from the strong shake, hit, fall.
• Touching the power adaptor with the wet hands is prohibited.
• Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
• Pls turn the power off when the machine is not used for long time.
• Pls do not open the cover and do not touch the inside parts.
• Pls use the original factory power adaptor
