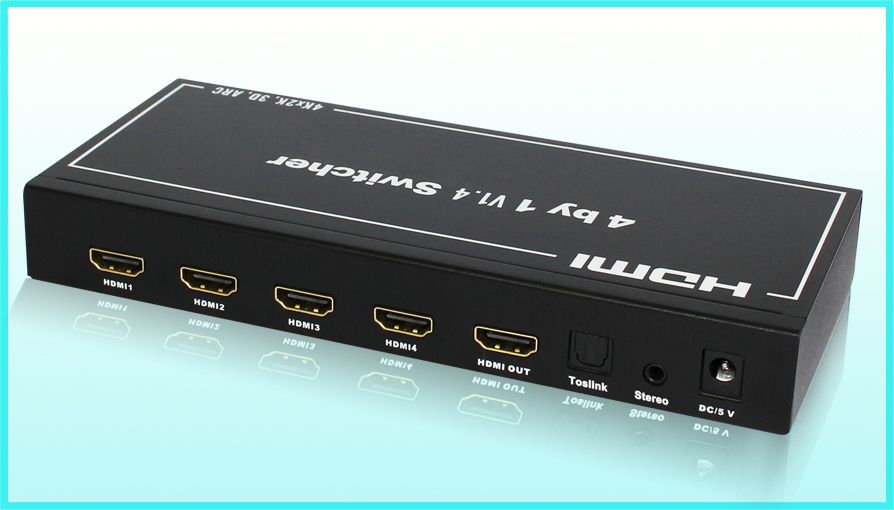

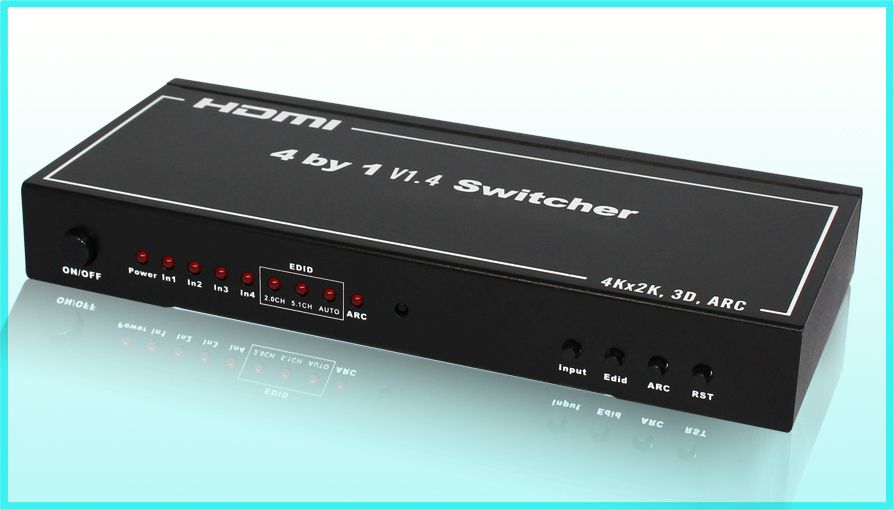

HDMI 1.4 SWITCHER 4×1 WITH AUDIO + ARC HDS-941A
72,00$
Allows you to manually switch between four HDMI sources to one device. Supports multiplexed HDMI 4-input and 1-output
The output port supporting Audio Return Channel (ARC)
- HDMI v1.4 supports:
- 4Kx2K@30Hz
- Audio Return Channel (ARC)
- 3D
- Deep Color support 36/30/24-bit
- Audio EDID select function.
- Supports CEC bypass on HDMI out
- Support digital audio format: DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
- Input Ports: 4x HDMI (Female type)
- Output Ports: 1 x HDMI (Female type)
Introduction
This is a high performance HDMI Switcher with four HDMI inputs & one output HDMI Switcher, the HDMI Switcher provides an S/PDIF link and earphone to output the HDMI source audio.the S/PDIF link support Audio Return Channel (ARC) from a compaitble ARC TV following the HDMI v1.4 specification.
Feature
- Supports multiplexed HDMI 4-input and 1-output.
- The output port supporting Audio Return Channel (ARC).
- HDMI v1.4 supports:- 4Kx2K@30Hz-Audio Return Channel (ARC)- -3D.
- Deep Color support 36/30/24-bit.
- Audio EDID select fuction.
- Supports CEC bypass on HDMI out.
- Support digital audio format ,DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD.
- Super wideband IR control system, IR transport channel can be forward or backward.
Additional information
Manufacturer | |
---|---|
Power Supply | |
Accessories | HDMI Switcher – 1pcs<br>5V/1A DC power adaptor – 1pcs<br>Remote Control – 1pcs<br>Operation Manual – 1pcs<br>38KHz IR Receiver -1pcs<br>HDMI IR adaptor(optional) |
size | 82*190*26 |
color | Black |
