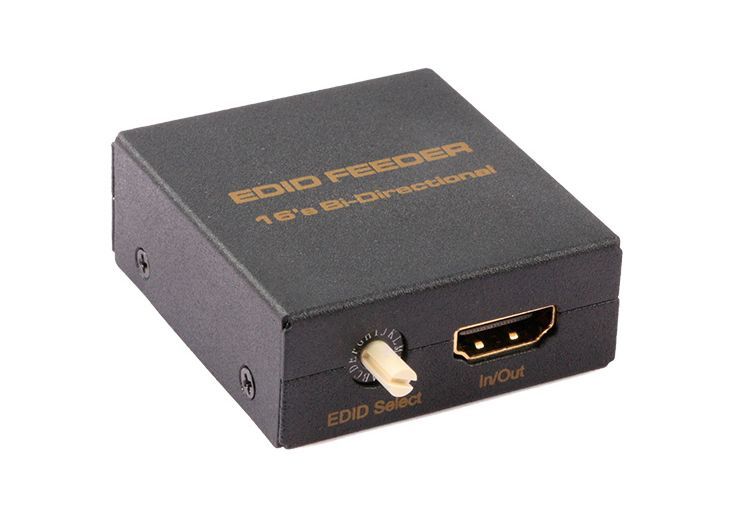

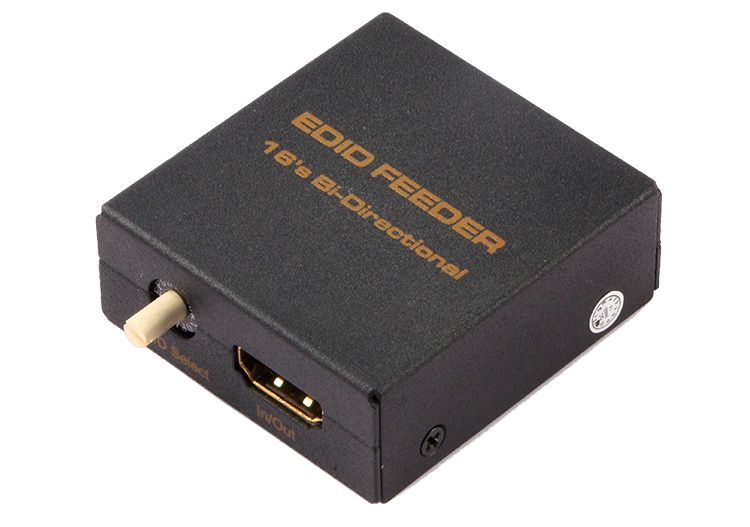

HDMI EDID Feeder 4K and 3D Compatible

Description:

• A HDMI signal input, a HDMI signal output.
• With 16 optional EDID mode, so as to easily solve the compatibility problems between devices.
• Have to function, make your connection more convenient. Plug and play, easy to use.
• HDMI maximum support 4K signal input and output, support CEC function.

Use the AWG26 HDMI standard cable input, transmission distance up to 5 meters, the output transmission distance up to 5 meters.

Features:

HDMI EDID Settings Manager EDID mode 16:

A: 4K 2CH (maximum support 2160P/30Hz input and output video signal, audio signal support LPCM 2)
B: K 5.1CH (maximum support 2160P/30Hz input and output video signals, audio signals Dolby-AC3, DTS)
C: 4K (video signal is one of the highest support 2160P/30Hz input and output of HD, audio signal according to the display device or the sound amplification device support format, the highest audio format. )
D: 1080P 2CH (maximum support 1080P/60Hz input and output video signal, audio signal support LPCM 2)
E: 1080P 5.1CH (maximum support 1080P/60Hz input and output video signals, audio signals Dolby-AC3, DTS.)
F: 1080P (video signal is one of the highest support 1080P/60Hz input and output of HD, audio signal according to the display device or the sound amplification device support format, the highest audio format. )
G: 1080P 3D 2CH (the highest support 1080P/60Hz and 1080P video signal input and output audio signal 3D 24Hz, support LPCM 2)
H: 3D 1080p 5.1CH (video signal is one of the highest support 1080P/60Hz and 3D 1080p 24Hz input and output, audio signal support Dolby-AC3, the DTS.
I: 3D 1080p Hd (video signal is one of the highest support 1080P/60Hz and 3D 1080p 24Hz input and output, audio signal according to the display device or the sound amplification device support format, the highest audio format. )
J: 1080I 2CH (maximum support 1080I/60Hz input and output video signal, audio signal support LPCM 2)
K: 1080I 5.1CH (maximum support 1080I/60Hz input and output video signals, audio signals Dolby-AC3, DTS.)
L: 1080i HD (video signal is one of the highest support 1080I/60Hz input and output, the audio signal according to the display device or the sound amplification device support format and set, take the highest audio format. )
M: 720P 2CH (maximum support 720P video signal input and output audio signal /60Hz, support LPCM 2)
N: 720P 5.1CH (maximum support 720P video signal input and output audio signal /60Hz, support Dolby-AC3, DTS.)
O: 720p Hd (video signal maximum support 720p /60Hz input and output, the audio signal according to the display device or the sound amplification device support format and set, take the highest audio format. )
P: Sink EDID (Copy the output EDID, copy the display or sound amplification equipment according to EDID model, adaptive EDID back-end equipment)
