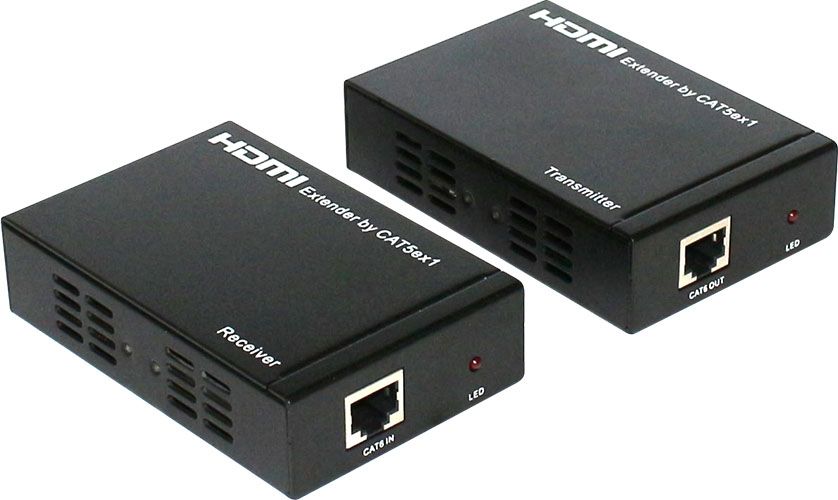

HDMI Extender over single 100m CAT6 (TCP/IP) with IR
81,00$
- Convert HDMI signal to standard TCP/IP and transmit by Internet cable or Lan.
- Apply M-JPEG technology to process image compressing.
- Super IR control system, independent DDC channel.
- Supported HDMI format: 480i/p@60Hz,576i/p@50Hz,720p@50/60Hz,1080i/p@50/60Hz
- HDCP 1.1 and HDMI 1.3b compatible.
- Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant
- Uncompressed audio support such as LPCM
- Support Lan bandwidth:100M.
- IR frequency: 38KHz
- Frequency Bandwidth: 2.25Gbps (single link)
- Transmission distance up to 100 meters @ 1080p
- Input port: Transmitter: HDMI, DC in. Receiver: Cat6.
- Output port: Transmitter: Cat6. Receiver: HDMI
Introduction:
The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender. Convert HDMI signal to standard TCP/IP and transmit by Internet cable or Lan. Apply M-JPEG technology to process image compressing. Super IR control system, independent DDC channel.
- Supported HDMI format: 480i/p@60Hz,576i/p@50Hz,720p@50/60Hz,1080i/p@50/60Hz
- HDCP 1.1 and HDMI 1.3b compatible.
- Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant
- Uncompressed audio support such as LPCM
- Support Lan bandwidth:100M.
- IR frequency: 38KHz
- Frequency Bandwidth: 2.25Gbps (single link)
- Transmission distance up to 100 meters @ 1080p
- Input port: Transmitter: HDMI, DC in. Receiver: Cat6.
- Output port: Transmitter: Cat6. Receiver: HDMI
Package:
- 1xHDMI Extender Transmitter
- 1xHDMI Extender Receiver
- 1xIR Sender
- 1xIR Receiver 2x5V DC Power Supply adaptor (US)
- 1xOperation Manual
Additional information
| Weight | 13 kg |
|---|---|
| Manufacturer | |
| Power Supply | |
| Accessories | IR transmitter<br>IR receiver<br>5V1A DC power adapter |
| size | 100*65*25 |
| Box Size | |
| Carton Meas. | |
| color | Black |
