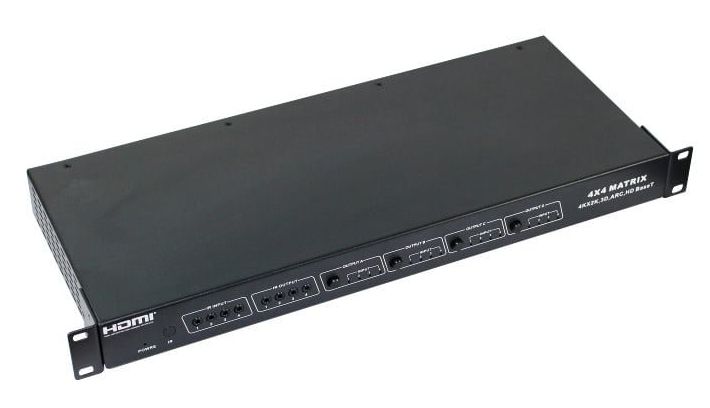

HDMI Matrix 4 x 4 With HDBaseT bypass

Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
1. Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
2. 3D HDMI 1.4a video format support.
3. 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock.
4. Supports deep color up to 48-bit per pixel.
5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).
6. Supports reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.
7. Full colorimetric including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color.
8. Operates for TMDS clock frequencies up to 300MHz.
Input Ports: 4 x HDMI Female
Output Ports: 4 x HDMI Female
