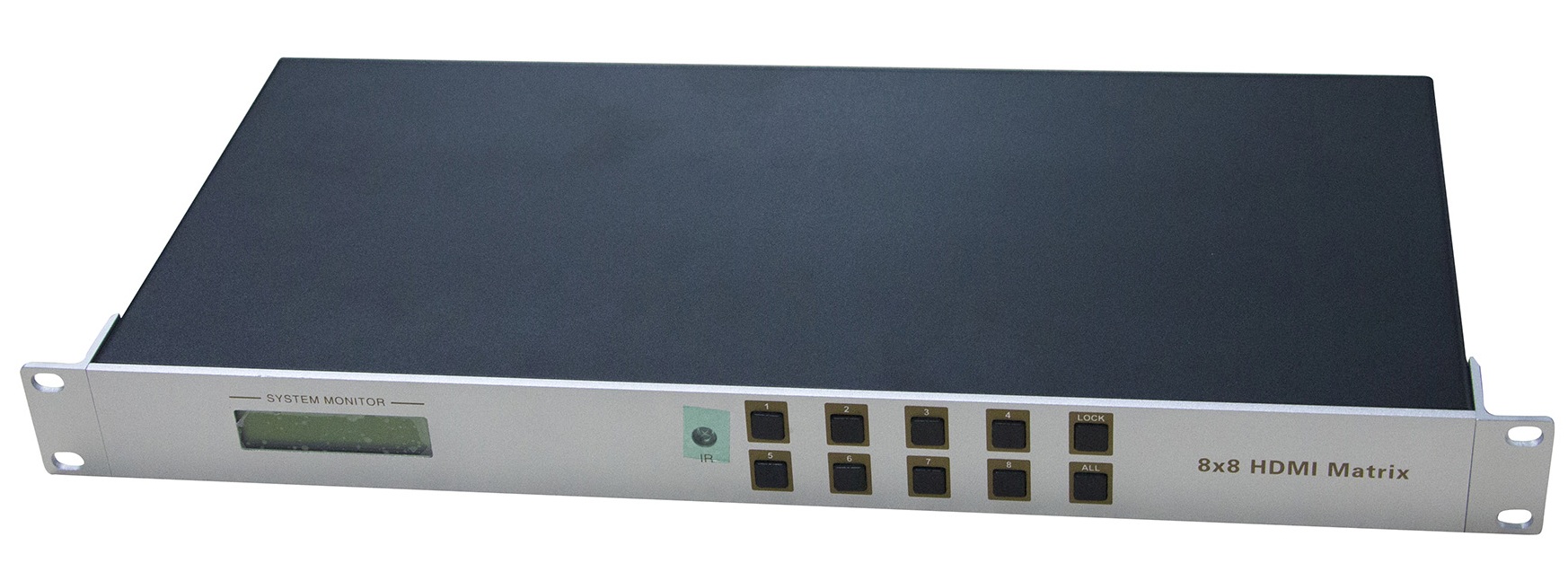

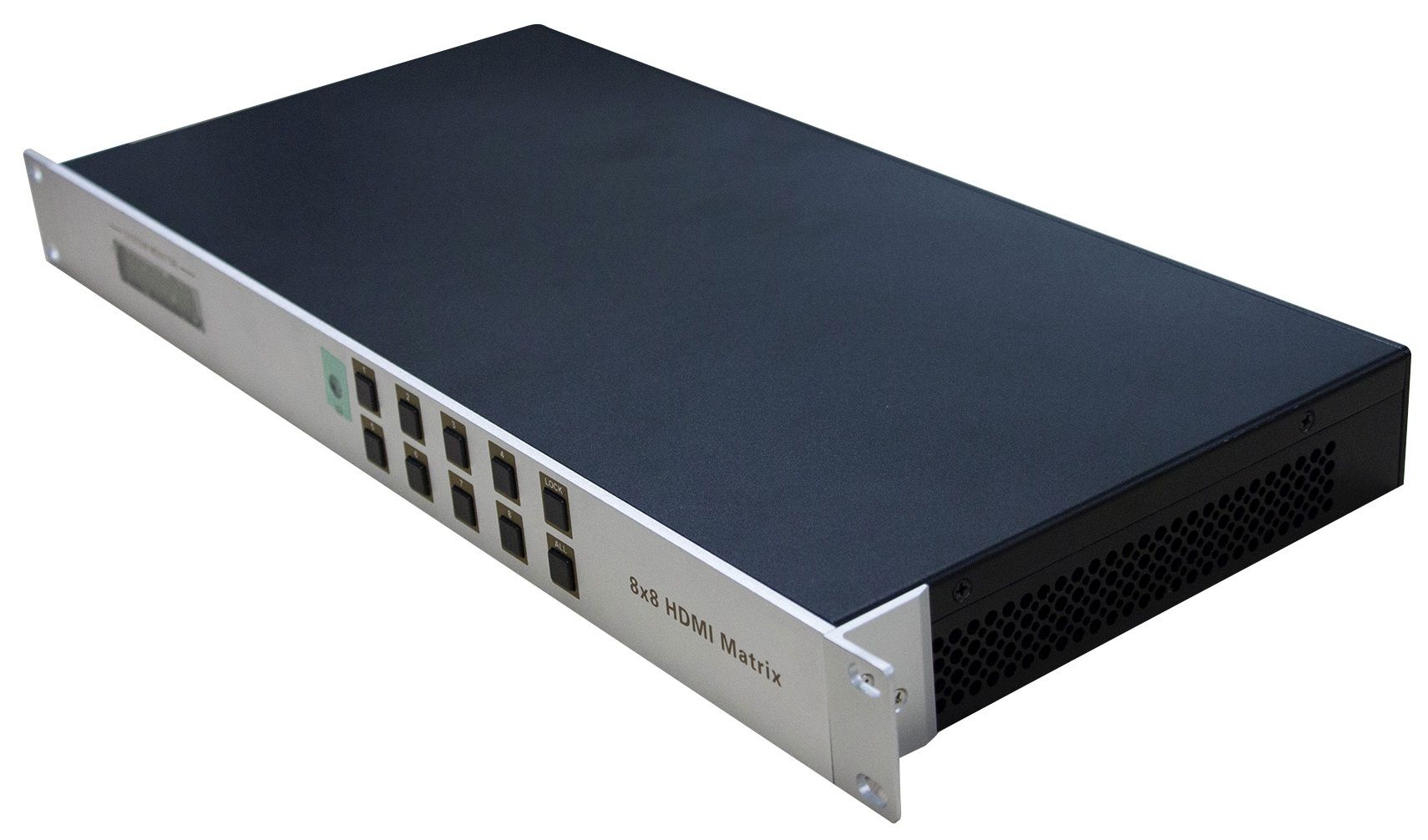

HDMI Matrix 8×8 HDMI Switcher with RS232

HDMX0008M1 is an 8-by-8 HDMI matrix. It allows any of the eight Input Channels (HDMI) to be routed to any of the eight Output Channels (HDMI), no matter the source is HDCP or not. Users can choose several different ways to control the matrix: by using infrared, RS232, and LAN and supplied remote control.

The matrix internal EDID library features default EDID configurations, in addition to native EDID data for any output/display.

HDMX0008M1 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:

• Allows up to eight HDMI audio/video devices to be independently switched to eight HDMI monitors, HDTV’s, or projectors.
• The eight output channels could show the same or different source simultaneously no matter the source is HDCP or not.
• Reading and saving EDID function from displays.
• Support high definition resolutions, including:1080p@60Hz@36 b/pixels, 3D, 1080i, 720p and other standard video formats.
• Each port support both HDMI and DVI inputs.
• With extra infrared extension receiver.
• Four switching modes: panel buttons, local IR, RS232 and Ethernet.
• HDCP compliant
• HDMI 1.3 supported.

Specifications:

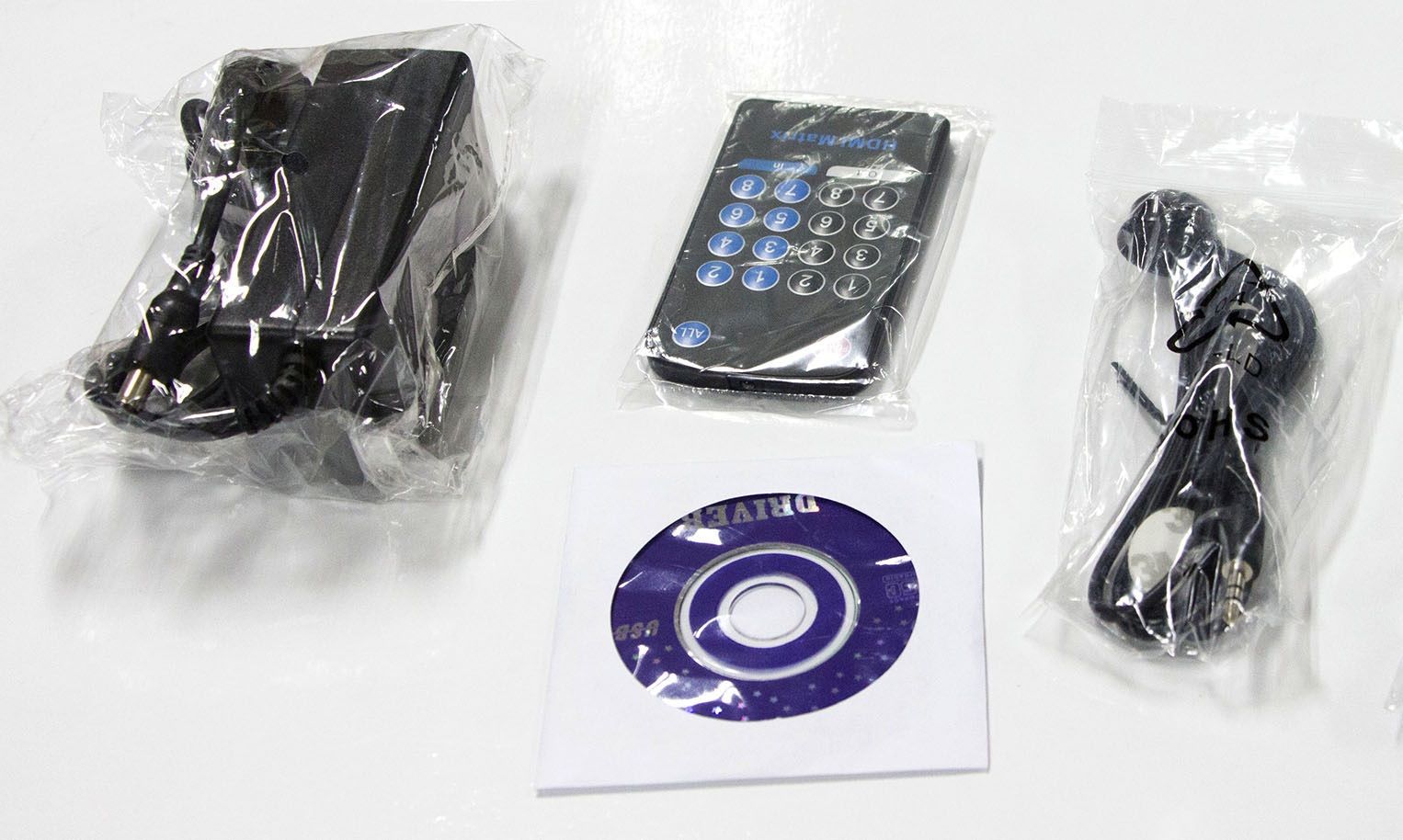

Package Contents:

• 1x Main unit
• 1x Remote
• 1x IR RX (IR receiver cable)
• 1x RS232 converter
• 12V/DC Power Supply
• Operating Instructions
