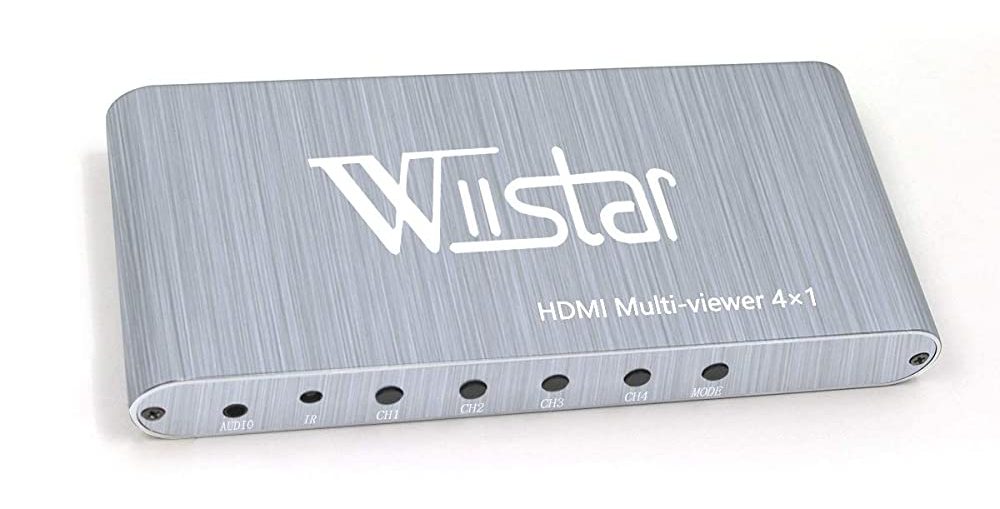

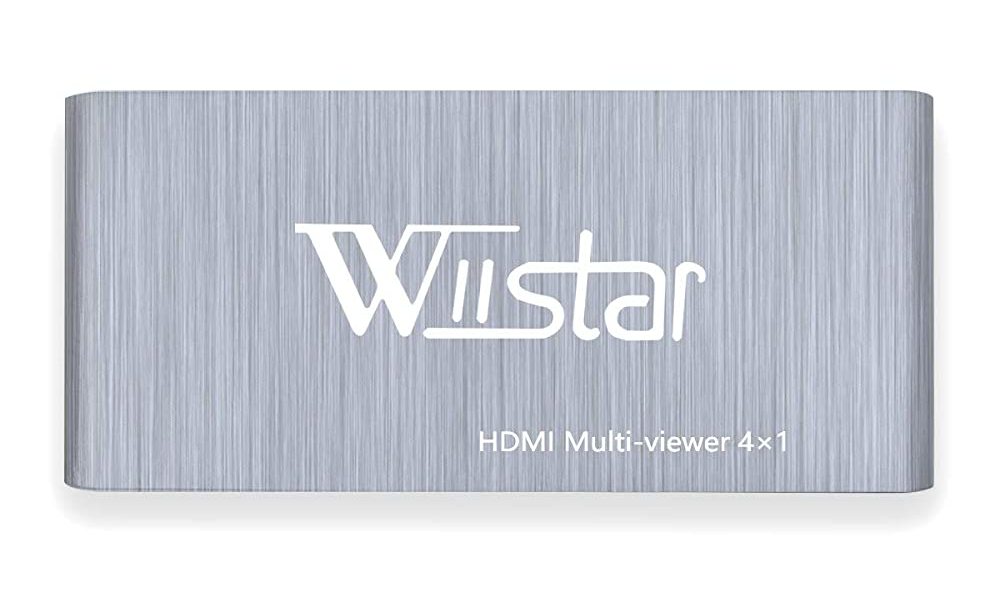

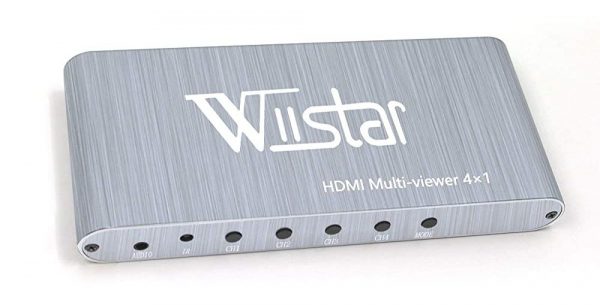

HDMI Quad Multi-Viewer Wiistar 4×1 1080p 3D for PS4 PC STB DVD Security Camera

This product is a high performance 4 by 1 Quad Multi-Viewer with seamless switcher. It supports four High definition input source display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD input freely. The product can be controled by various ways, through the front panel button control, IR control,  In addition,this produсt have basic version and extender version.The Extender version can extend the video and audio signals over single 50m CAT5e/6 with Bi-directional IR control.

2. Features

•   Compliant with HDMI 1.3a,HDCP 1.2；
•   Supports multiplexed HDMI 4-input and 1-output；
•   Supports up to 1080p High Definition resolution；
•   Support 4by1 Quad Multi-viewer and seamless switch；
•   Support scaler up,scaler down function；
•   Support multi output resolution；
•   Support digital audio format LPCM
•   IR system allowing for control of source at display end；
•   Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable(Extender Version)

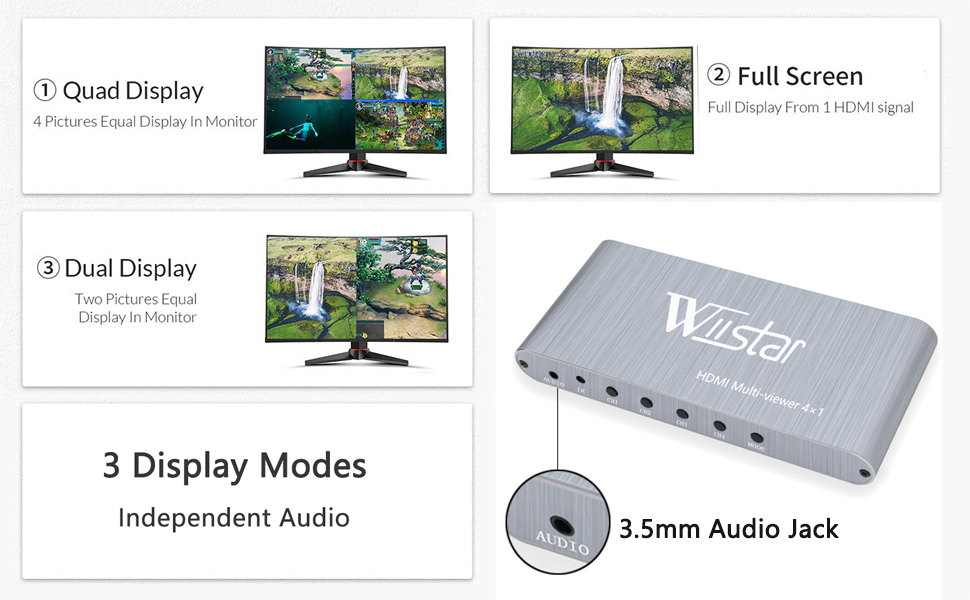

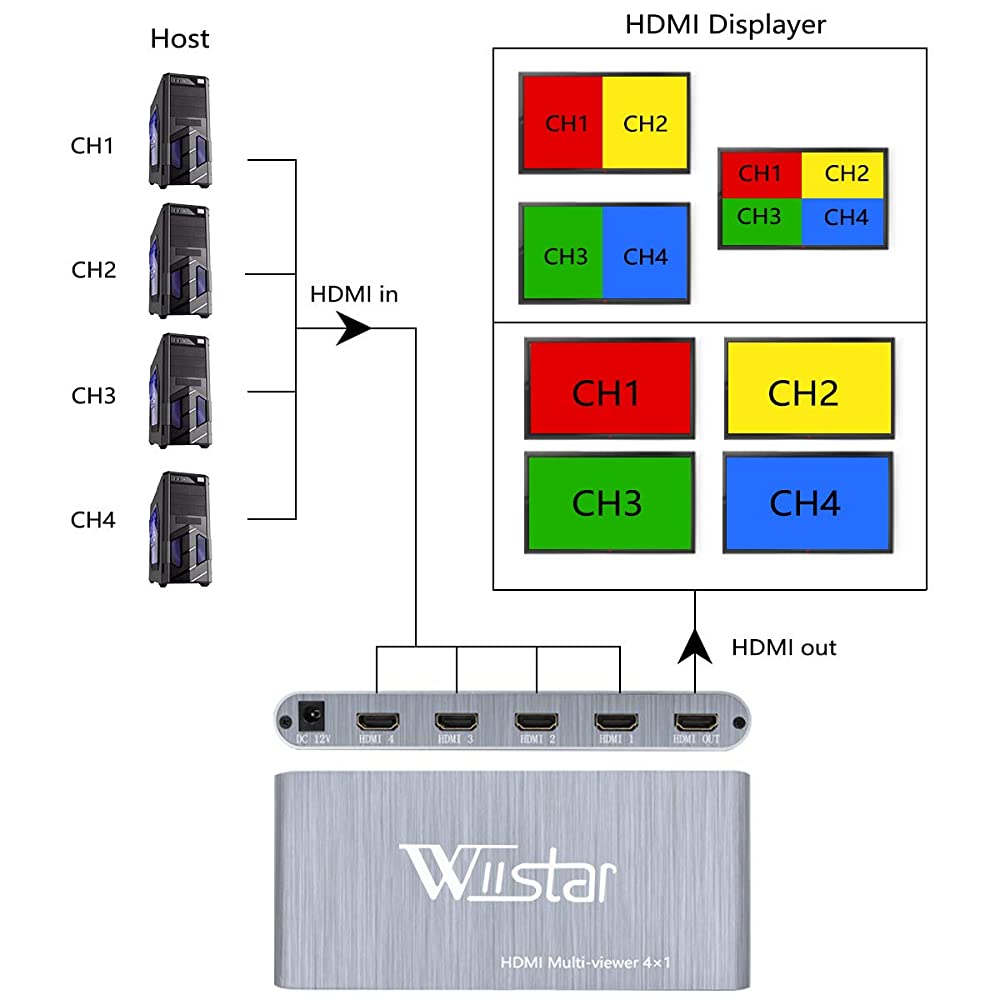

NOTE: Suppports 3 display modes: ① Full Screen; ② Quad display; ③ Dual display

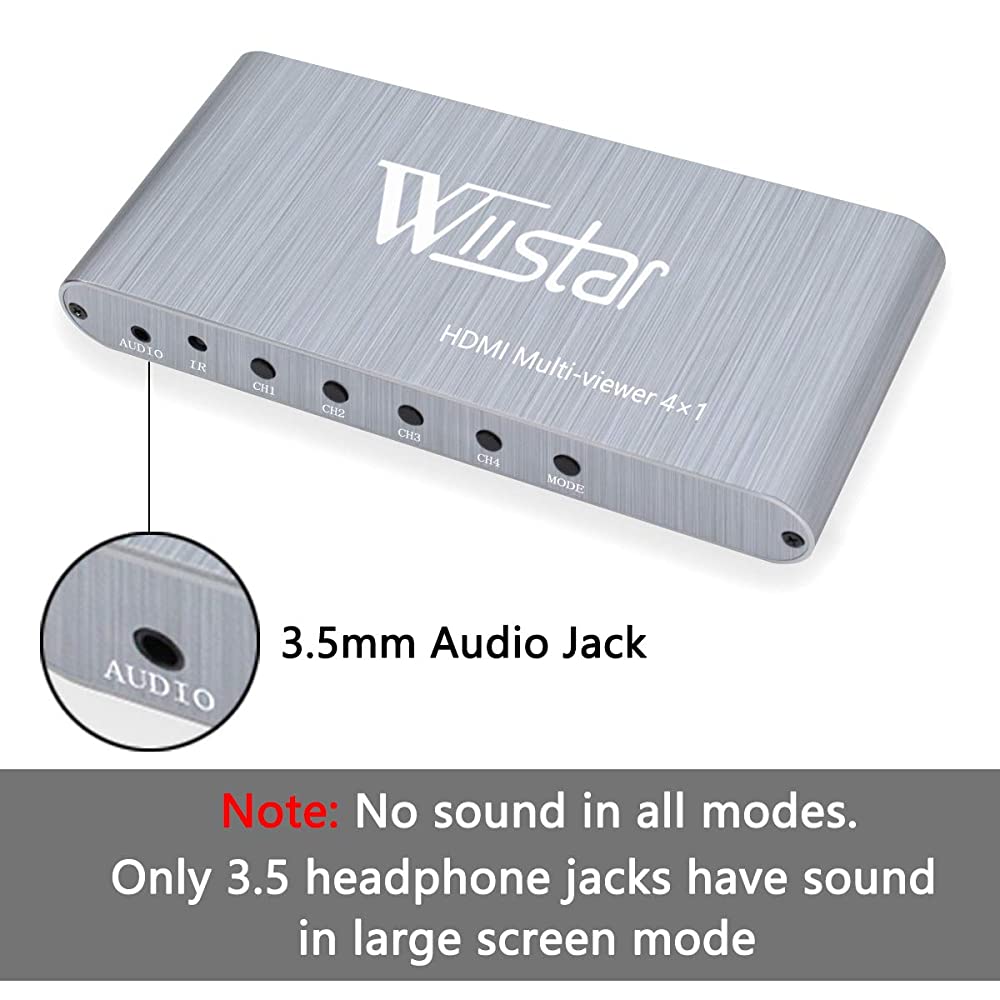

Only  large screen mode  has sound output from the 3.5mm Audio port，all other modes and all interfaces have not sound output

3. Specification

• Video Bandwidth :2.25Gbps

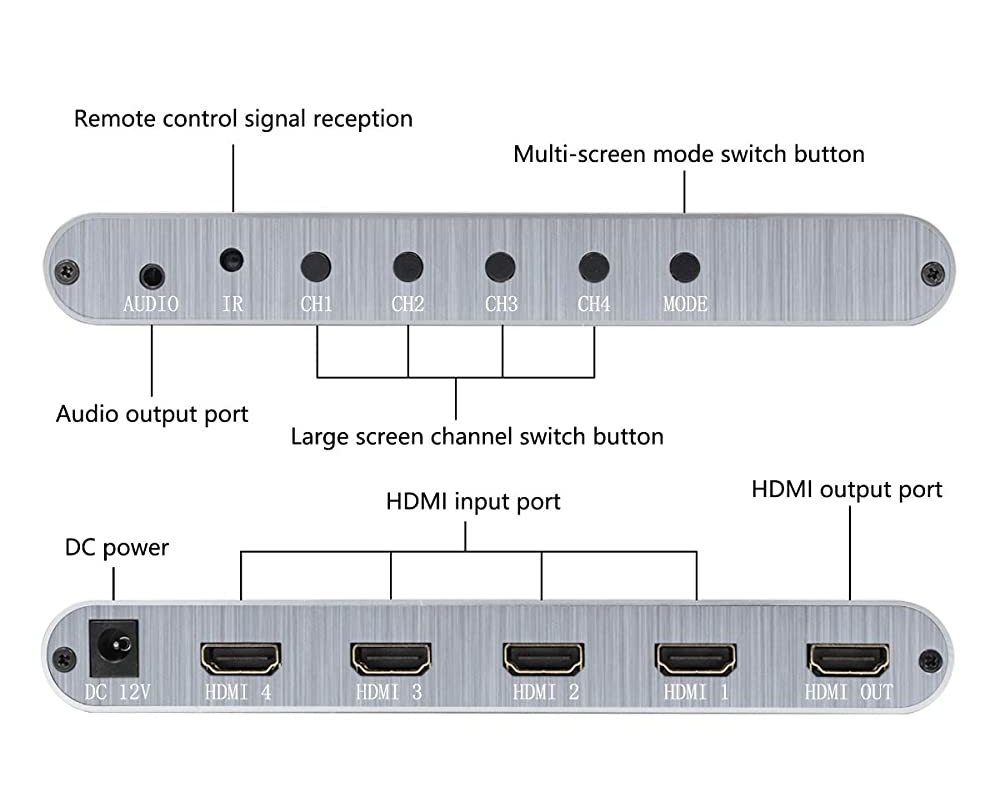

• Input Ports  :4 × HDMI (Female type),
• Output Ports    :1 × HDMI (Female type), 1 x 3.5mm Audio port
• Input Resolution  :480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
•   1080i50/60Hz,1080p24/30/50/60Hz,800×600@60,
•   1024×768@60,1280×720@60,1920×1080@60;
•  Output Resolution  :1080p,1080i,720p,1024×768,1360×768
•   Silkscreen Color  :Silver
• Operating Temperature :0 °C~40 °C/ 32 °F~104 °F
• Storage Temperature  :−20 °C ~ 60 °C/−4 °F ~140 °F
• Relative Humidity    :20~90 % RH (non-condensing)
• Power Consumption  :10 W

4.Package Contents

• Main Unit(HDMI 4 IN 1 OUT Switch)*1
• Power Adapter*1
• Remote Control*1
• User Manual*1
