HDMI Splitter 1×2 HDMI 3D 4K*2K CEC
20,50$

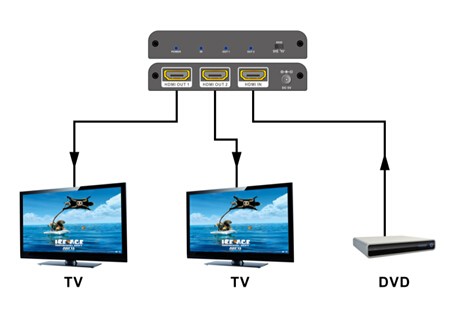

The 1×2 HDMI Splitter use a single HDMI source accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
The Splitter HDMI 1×2 use a single HDMI source accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Specifitions:
HDMI resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support video color format |
24bit/deep color 30bit,36bit |
Support audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
Max bandwidth |
225MHz |
Max baud rate |
6.75Gbps |
Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
Input/Output DDC signal |
5Volts p-p (TTL) |
Input cable distance |
≤10m AWG26 HDMI standard cable |
Output cable distance |
≤10m AWG26 HDMI standard cable |
Max working current |
150mA |
Power adapter format..Input |
AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A |
Operating Temperature range |
(-15 to +55 Celsius) |
Operating Humidity range |
5 to 90%RH (No Condensation) |
Dimension |
61.3×65.3×20.7 (mm) |
Weight |
105g |
Features:
- One HDMI input signal split to two HDMI sink devices;
- Support 3D;
- Support 4K X 2K;
- Support CEC;
- Support deep color 30bit, 36bit;
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC;
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
- Support signal retiming;
- Support input up to 10metres AWG26 HDMI standard cable length, output up to 10metres AWG26 cable length;
- No loss of quality;
- Installs in minutes;
- DC5V/1A power supply;
Notes:
Use the machine as the instruction listed to keep the long use lifetime of the machine.
- The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
- All parts will be free from the strong shake, hit, fall.
- Touching the power adaptor with the wet hands is prohibited.
- Hold the power adaptor head and do not pull the power cord when cut off from the socket.
- Turn the power off when the machine is not used for long time.
- Do not open the cover and do not touch the inside parts.
- Use the original factory power adaptor.
Before power on, check the connection line carefully. And make sure that all interfaces are normally connected.
Package includes:
- Splitter HDMI 1×2 HDMI
- Power adapter DC5V/1A
- User manual (Eng)
Additional information
Manufacturer | |
---|---|
Power Supply | |
EAN-code | |
color | Black |
