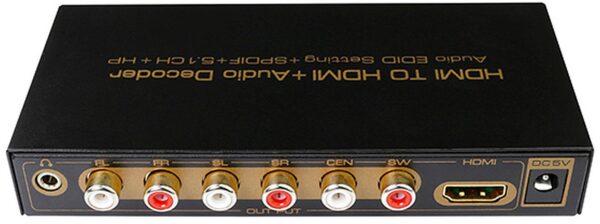

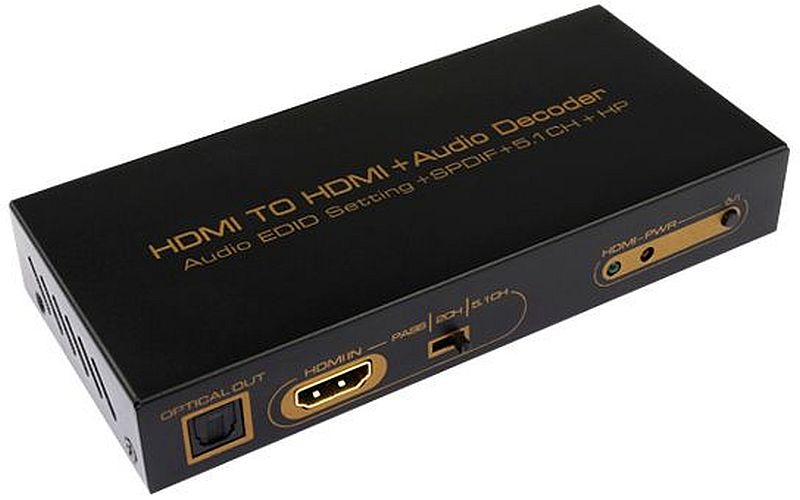

HDMI to HDMI + Audio AC3 DTS to 5.1 Decoder
60,00$
The HDMI TO HDMI Audio Decoder allows you to extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or analog 5.1 sound track output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format decoding. It is one perfect audio decoder for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.

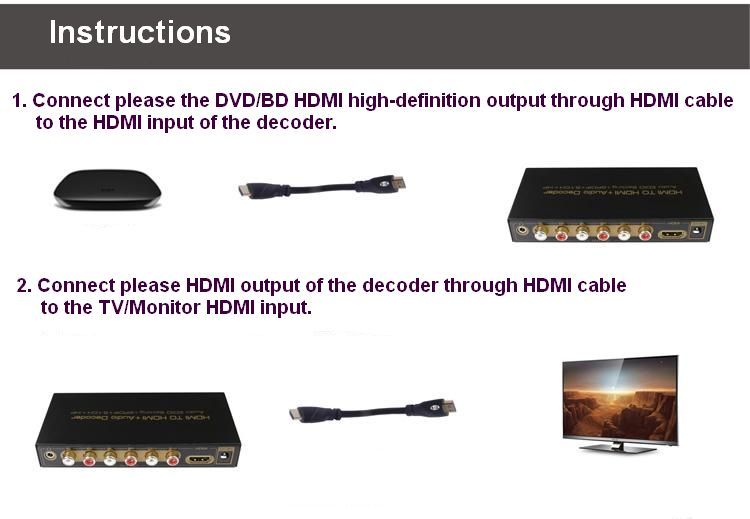

The HDMI TO HDMI audio decoders can help you to separate HDMI signal to synchronized HDMI signal and digital audio SPDIF optical output, after internal audio DSP decoding and high-quality DAC converter output 5.1 channel analog audio to your amplifier. Support Dolby Digital AC-3, DTS, LPCM and other digital audio formats decoding. With DVD player, Blu-ray player, Network player, HDMI high-definition output terminal set-top box, PS2, PS3, Xbox360, PC and other entertainment devices.
Main Functions

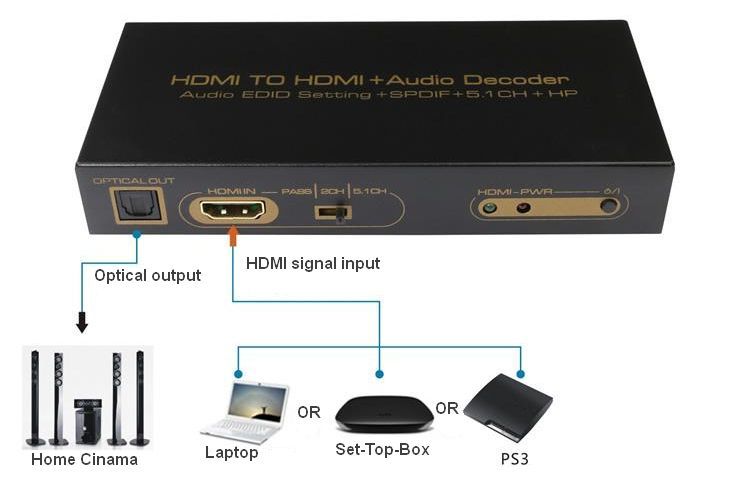

- 1 x HDMI input and 1 x HDMI output, can sync separation HDMI audio signal.

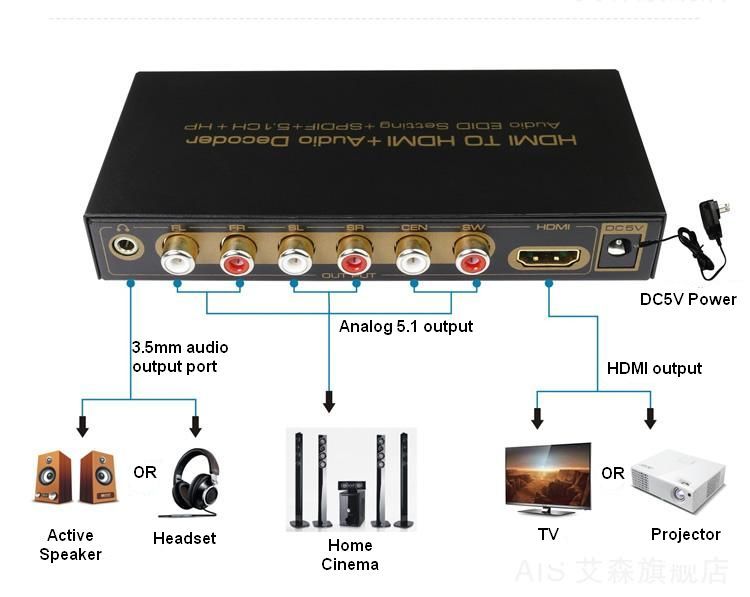

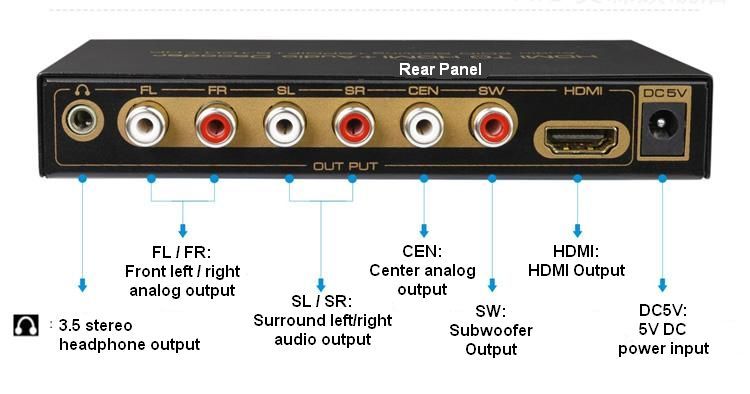

- Supports 1x SPDIF optical digital audio output, 6 channel RCA analog audio output and 1x headphone jack output.
- Support HDMI input up to 1080P/60Hz, support 3D (24/30fs)
- Support CEC and HDCP Support 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
- Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC
- Support digital audio formats : Dolby digital (AC3), DTS, LPCM, automatic identification signal format Headphone amplifier output, can drive the general 3.5mm earphone High tone quality, low noise DC5V/1A power adapter
Specifications
|
HDMI resolution |
up to 1080P/50/60fs (3D 24/30fs) |
|
Video color format |
Support 24bit/deep color 30bit, 36bit |
|
HDMI Audio Format |
DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD |
|
Digital audio decode format |
Dolby Digital (AC3)/DTS/LPCM 2CH |
|
HDMI Maximum bandwidth |
225MHz |
|
HDMI Maximum baud rate |
6.75Gbps |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p (TTL) |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
|
DSP sample frequency range |
32~96 KHz |
|
DSP Bit rate range |
16~24 Bit |
|
Analog output level (1kHz@0dB) |
1V RMS |
|
SNR @ 0dB (CCIR/ARM) |
>=85dB |
|
Distortion |
<=0.1% |
|
Frequency response |
20Hz~20KHz |
|
Headphone output power (1kHz@0dB RL=32) |
20mW |
|
HDMI input cable distance |
<=15m AWG26 HDMI standard cable |
|
HDMI output cable distance |
<=18m AWG26 HDMI standard cable |
|
Maximum working current |
500mA |
|
Power adapter format Input |
AC 100V~240V 50HZ/60Hz, DC5V/1A |
|
Operating Temperature range |
-10 to +55oC |
|
Storage Temperature range |
-20 to +60oC |
|
Operating Humidity range |
10 to 90%RH (No Condensation) |
|
Storage Humidity range |
5 to 95%RH (No Condensation) |
|
Dimensions |
139 x 64 x 22mm |
|
Weight |
220g |
