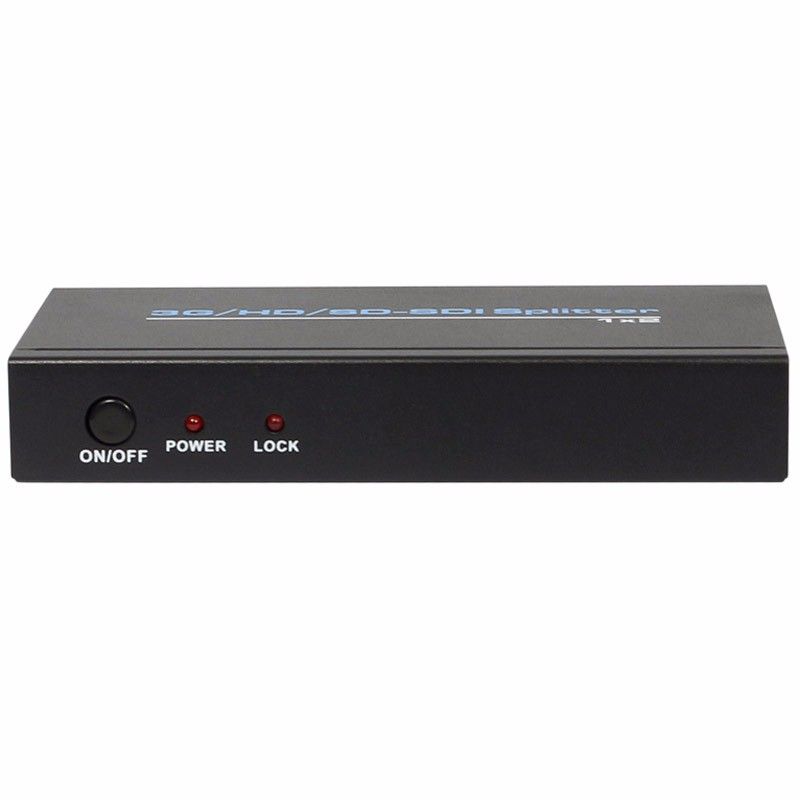

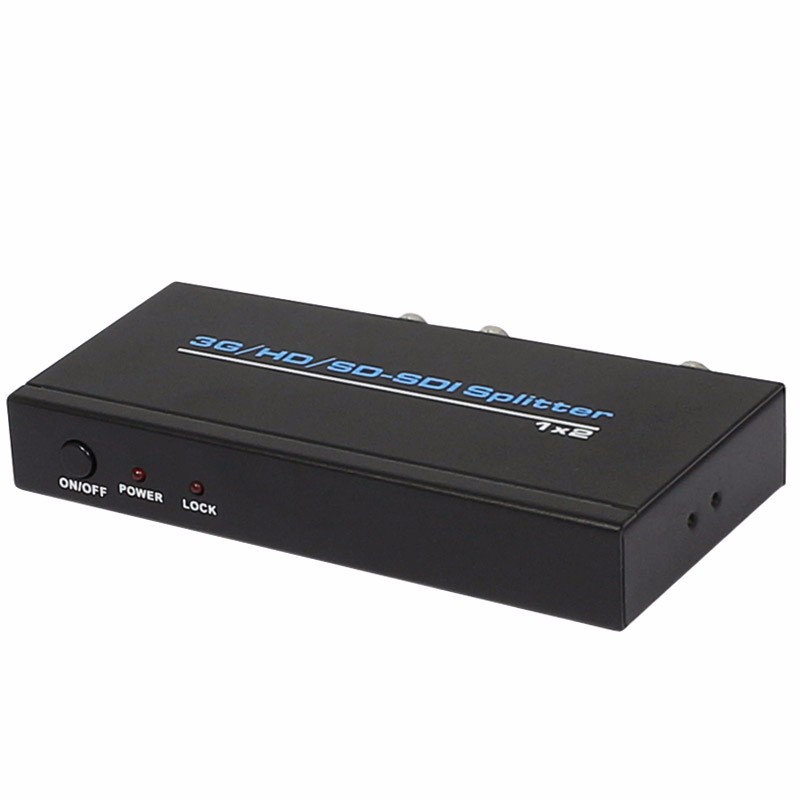

Splitter SDI 1×2 SDI, support SD-SDI / HD-SDI / 3G-SDI
75,00$

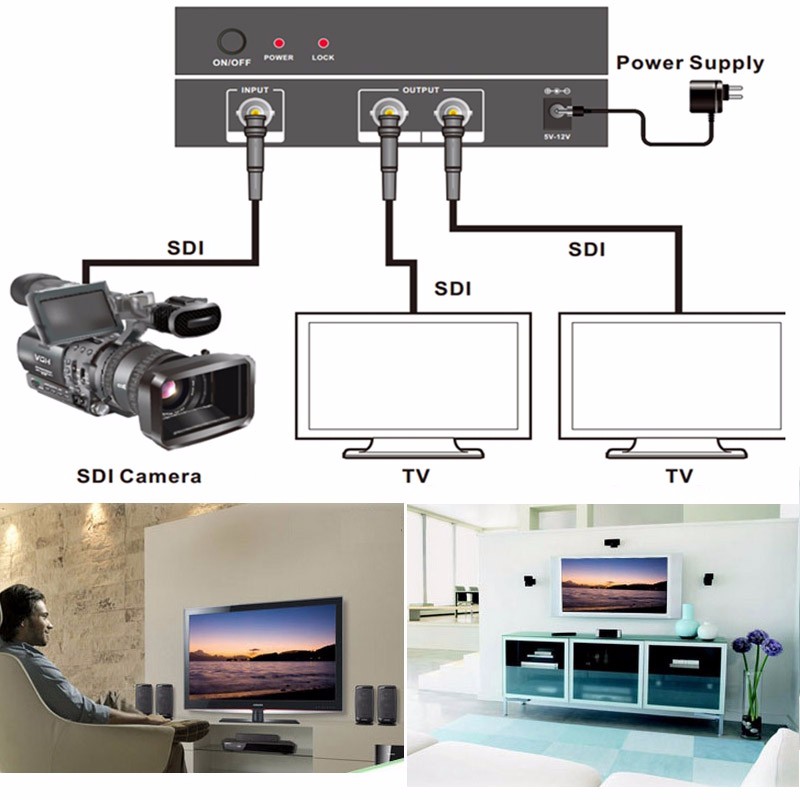

1 x 2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.
Introduction:
1 x 2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.
Features:
- 1 SDI input signal split to 2 SDI sink devices.
- Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
- Built-in cable equilibrium, clock recovery and drive.
- Support resolutions up to 1920×1080@60Hz.
- Support signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
- Support 5-12V wide voltage input.
Specification:

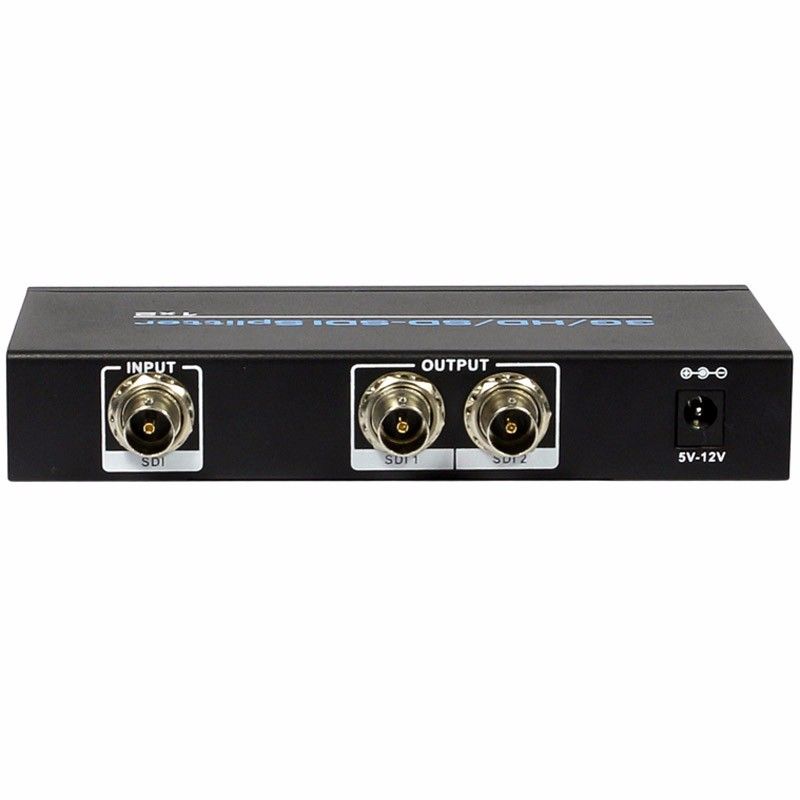

Input Port |
1 x BNC Female input port |
Output Port |
2 x BNC Female output ports |
SDI Transmission Rates |
SD-SDI (270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI (2.97Gb/s) |
Power |
DC 5.0V / 1.0A |
Frequency Bandwidth |
3.0Gbps |
Operating Temperature |
0 ~ 40 Degree Celsius |
Storage Temperature |
-20 ~ 60 Degree Celsius |
Operating Humidity |
20 ~ 90 Percent RH (Non-condensing) |
Power Consumption |
1.5W |
ESD Protection Human Body |
+-8kV (air-gap discharge) +-4kV (contact discharge) |
Size |
70*145*25mm |
Weight |
320g |

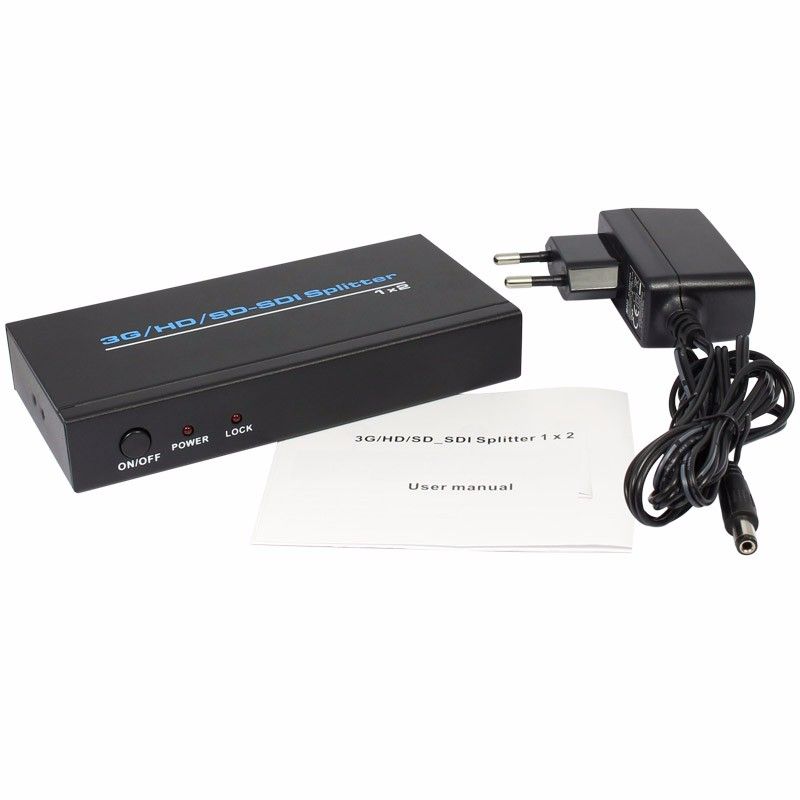

Package Include:
- 1 x UserManual
- 1 x PowerSupply
- 1 x SDI Splitter
Additional information
Manufacturer | |
---|---|
Power Supply | |
EAN-code | |
color | Black |
