Wireless HDMI extender 200m WiFi 5GHz, transmitter and receiver Full HD video and audio

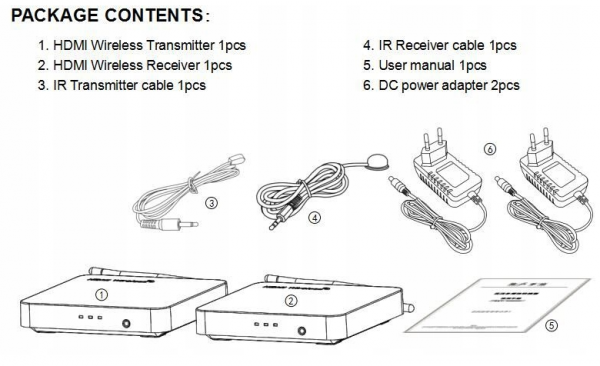

• Includes transmitter (TX) and receiver (RX). HDMI signal via wireless transmission from transmitter to receiver
• TX supports one HDMI output for a local screen monitor
• Supports HDMI resolution: 480i / 576i ~ 1080P @ 50 / 60Hz and SVGA ~ WUXGA
• A / V digital wireless audio / video transmission with 2.4G and 5GHz frequency, high transmission speed and high anti-interference ability
• Using external dual gain antennas. Full HD 1080p wirelessly transmits up to 200 meters in open space. (May affect environmental usage)
• It supports an infrared remote control to control the source device from the display side
• OSD support to inform you about the device status
• Simple Plug and Play function. Full hardware design, no software installation required
• Web Support configuration interface, simple and easy to use

This product will allow the user to send HD content over a wireless network. HDMI sources in a wireless set extend the image and sound in high definition to any HDTV display at a distance of up to 200 meters.

The amplifier complies with the TCP / IP Wireless Transport Protocol standard, therefore it has a high transmission speed and high ability to prevent interference. HDMI Wireless Extender is widely used in office presentations, lectures, education, conferences, family entertainment etc.

Announcement: Full HD 1080p wirelessly transmits up to 200 meters in open space.

Operation and connection:

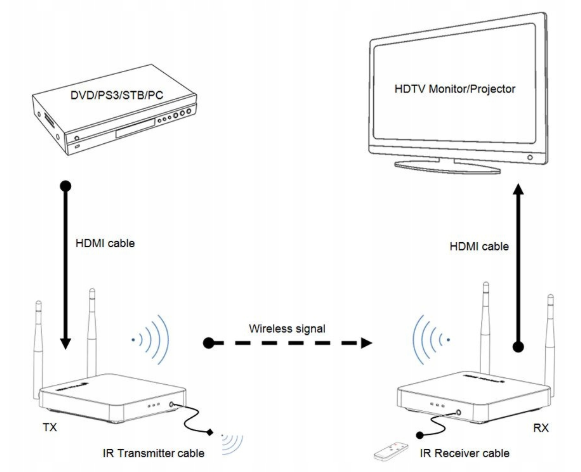

1. Connect one HDMI cable from the DVD / BD player to the HDMI input jack on the wireless TX device.
2. Connect one HDMI cable from the TV / monitor to the HDMI output socket of the wireless RX HDMI device.
3. Connect the IR emitter cable to the TX TX wireless and the IR emitter cable must point towards the control device.
4. Connect the IR receiver cable to the wireless RX HDMI.
5. Connect the 5V power supply to TX and RX and insert into the socket.

Network Settings:

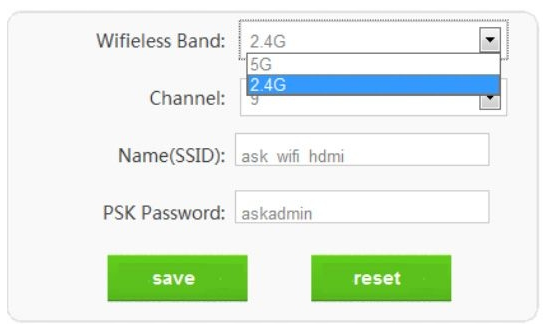

To prevent interference from the same frequency device, the HDMI Extender wireless device supports operating frequency setting, channel transmission and SSID via WEB. For security reasons, the user should change the SSID and password when logging in for the first time. Please do the following:

• Connect the 5V power supply to the transmitter and receiver, and insert into the socket.
• Turn on the WLAN of your mobile phone / computer, search and connect SSID: HDMI_Wireless, Enter the default password: 00000000.
• Modify the mobile phone / PC’s IP address type to static / permanent, and the IP address should be set in 192.168.1. XXX address segment range, e.g. 192.168.1.100.

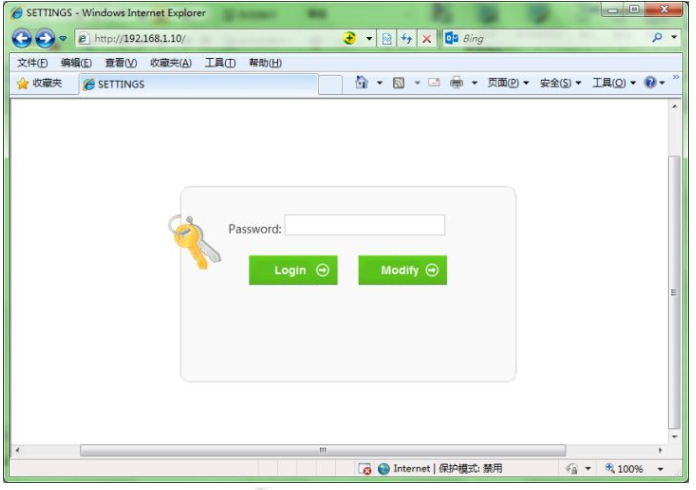

• Open IE browser and enter 192.168.1.10 in the address bar, click “Enter”.

• Enter the default login password: admin, click “Login”, open the settings interface. If you want to change the login password, click “Modify”, after modification click “save” to save and exit. Restore factory settings after clicking “reset”.
• If you have forgotten your password, you can restore the factory settings. Steps as below:

First connect the power adapter to the wireless extension cord, the second use one needle to insert the IR IN / OUT port to press the Reset button; If the status and the HDMI status light blink three times, the reset operation was successful.

Note: You must reset the transmitting (RX) and receiving (TX) devices, then you can reconnect the transmitter and receiver.

Specification:

• HDMI Compliance: HDMI1.3 / HDCP1.4
• HDMI resolution: up to 1080P @ 50 / 60Hz & SVGA / XGA / WXGA / SXGA / WXGA + / UXGA / WSXGA + / WUXGA
• HDMI Audio Format: LPCM2.0
• HDMI Max bandwidth: 225MHz
• HDMI Max baud rate: 6.75Gbps
• Input / Output TMDS signal: 0.5 ~ 1.5Volts pp (TTL)
• Input / Output DDC signal: 5Volts pp (TTL)
• HDMI output cable distance: ≤12m AWG26 HDMI standard cable
• Antenna type: External dual 3dBi gain antenna
• Wireless standard: IEEE 802.11a / b / g / n
• Wireless Band: 2.4GHz, 5GHz ISM Band
• Max Data rates: 2T2R up to 300Mbps
• Transmit Output Power （IPEX）: 16 ± 2dBm
• Transmission distance: up to 200 m (in open space)
• IR Carrier frequency: 38KHz
• TX / RX Max working current: 1A
• Power adapter format Input: AC 100V ～ 240V 50HZ / 60Hz, DC5V / 2A
• Operating Temperature range: -5 to + 45 ℃
• Storage Temperature range: -20 to + 60 ℃
• Operating Humidity range: 10 to 90% RH (No Condensation)
• Storage Humidity range: 5 to 95% RH (No Condensation)
• Case Dimension (L x W x H): 127.5×127.5×25 (mm)

Comments:

Please use the device in accordance with the instructions to preserve the long life of the device.

1. Please use the device in accordance with the instructions to preserve the long life of the device.
2. The device should be placed away from humid, high temperature, dusty and oxidizing environment.
3. All parts must be reserved from strong shaking, impact, falling.
4. Touching the adapter with wet hands is prohibited.
5. Hold the power supply head and do not pull on the power cord when disconnected from the power outlet.
6. Turn off the power when the devices are not used for a long time.
7. Do not open the housing and do not touch the internal parts.
8. Use the original factory power supply.
