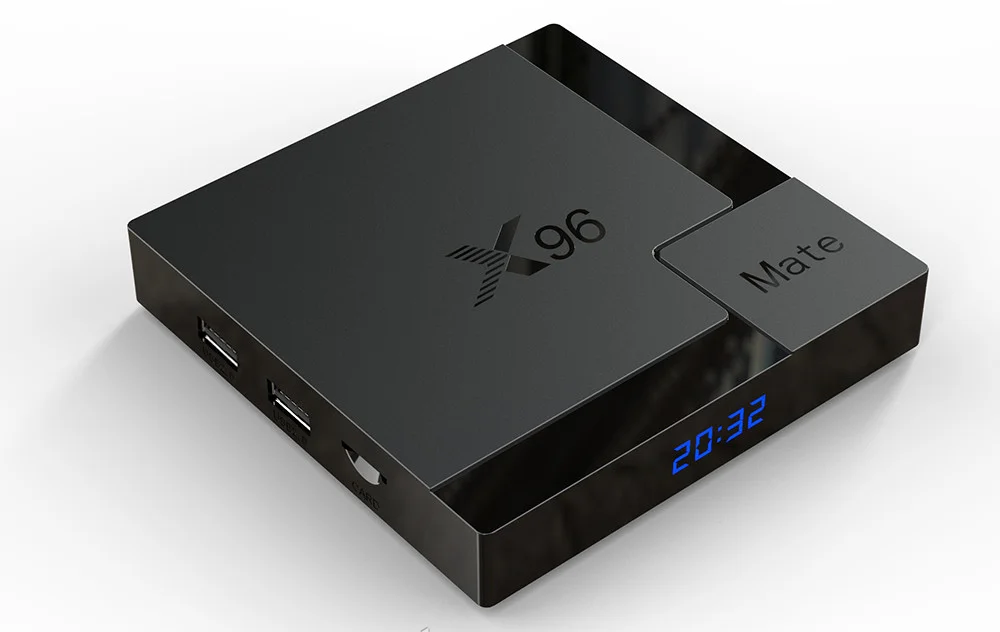

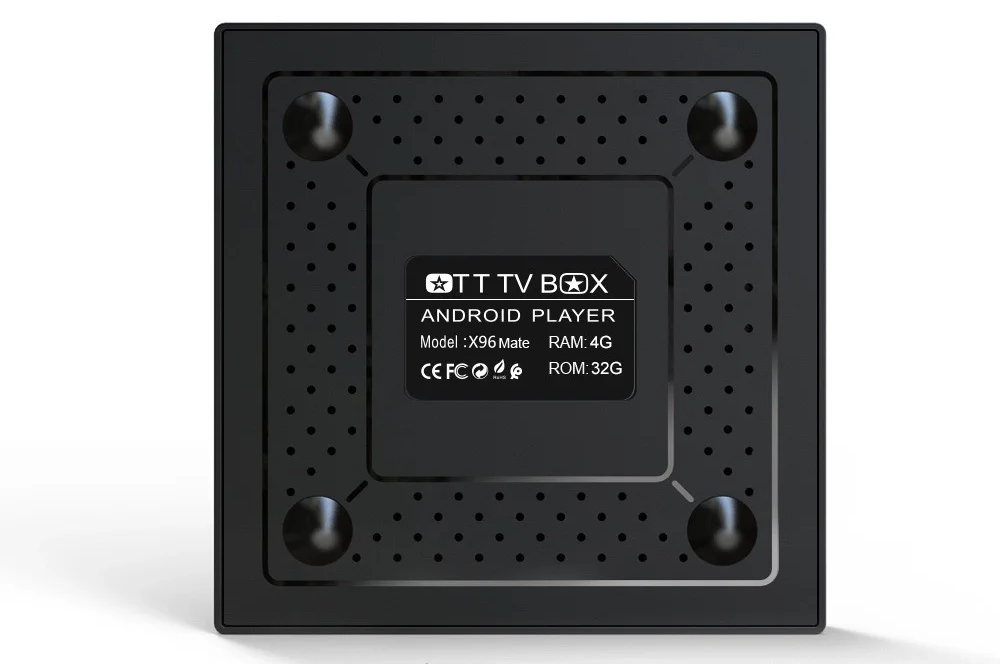

X96 MATE Android 10.0 Allwinner H616 4G/32G


10 in stock

96 Mate is a new 6K TV Box from the X96 brand, powered by one of the newer and low-cost Allwinner H616. More details and prices can be found below.

SKU: H616 Category:

X96 Mate TV Box Android 10.0 Allwinner H616 4GB 32GB Smart tv box 2.4G 5G wifi 4K H.265 Netflix Youtube Google Media Player Box


  1. Allwinner H616 Quad Core ARM Cortex A53 ;
  2. GPU:G31 OPenGL3.2 ;
  3. Android 10.0 OS;
  4. Support 100M Ethernet, 2.4GHz Wifi;

Package includes

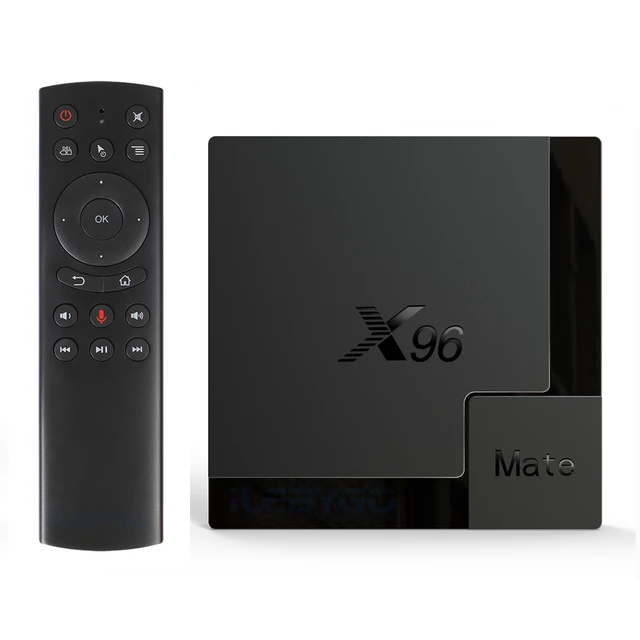

  • 1 x X96 MATE TV Box
  • 1 x Remote control
  • 1 x Power Supply
  • 1 x HDMI Cable
  • 1 x User Manual

CPU Allwinner H616 Quad Core ARM Cortex A53
GPU G31 OPenGL3.2
Memory DDR3:4GB
Flash eMMC:32GB/64GB
WiFi IEEE 802.11 b/g/n/ac
Moudle Plastic : Black Color
I/O 1*HD 4K*2K UHD Output, HDMI 2.0A
1*AV OUT 480i/576i standard definition output
2*USB 1 * USB 3.0 ; 1*USB 2.0
1*IR Reciver Remote Reciver Connect
1*RJ45 Ethernet Interface;Support 10/100M
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/2A;
OS Android 10.0
Video Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4Kx2K60fps+1x1080P60fps
Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
Video Decoding
– VP9 Profile 2 up to 4Kx2K60fps
– H.265 Main10L5.1 up to 4Kx2K60fps,or 6K30fps
– AVS2-P2 Profile up to 4Kx2K60fps
– H.264 BP/MP/HPL4.2 up to 4Kx2K30fps
– H.263 BP up to 1080P60fps
– MPEG-4 SP/ASPL5 up to 1080P60fps (ISO-14496)
– MPEG-2 MP/HL up to 1080P60fps (ISO-13818)
– MPEG-1 MP/HL up to 1080P60fps (ISO-11172)
– Xvid up to 1080P60fps
– Sorenson Spark up to 1080P60fps
– VP8 up to 1080P60fps
– AVS/AVS+ JiZhun Profile up to 1080P60fps
– WMV9/VC1 SP/MP/AP up to 1080P60fps
– JPEG HFIF file format up to 45MPPS
– Multiple language and multiple format sub-title video support
– MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
– Supports JPEG thumbnail, scaling, rotation and transition effects
– Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Audio Codec
-Two audiio digital-to-analog(DAC) channels
-Support 16-bit and 20-bit sample rate
-8kHz to 192kHz DAC sample rate
-95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms
-One128*24-bits FIFO for DAC data transmit
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

Additional information
