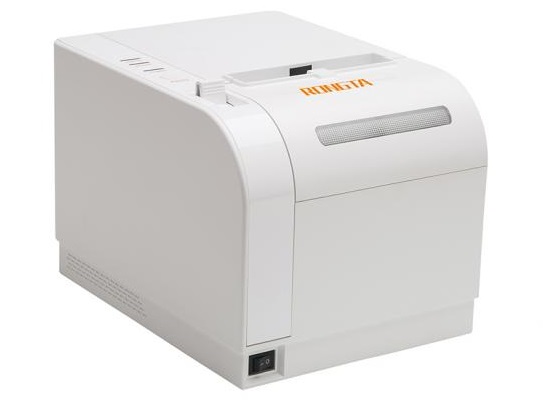

Thermal Receipt Printer Rongta RP820 USB+Serial+Ethernet, white
Roll over image to zoom in
RP820 80mm Thermal Receipt Printer
1. Elegant and functional design

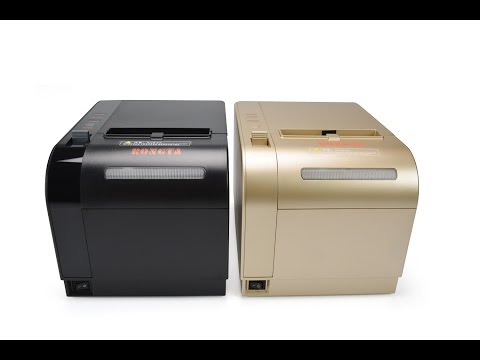

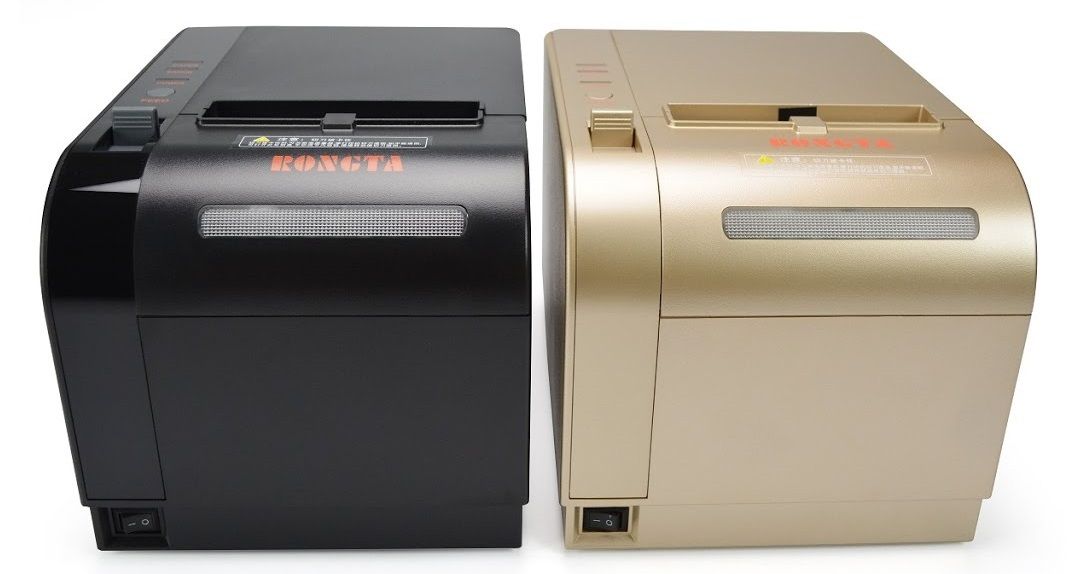

★ Black/luxury gold color optional
★ Color light order alarm(optional), Beeper order alarm, paper end&paper near end detection
★ Flexible installation on countertop or wall using optional bracket
★ Support Wifi
2. Efficient and stable printing
★ 250mm/s high speed printing, easy to maintain, improve working effciency

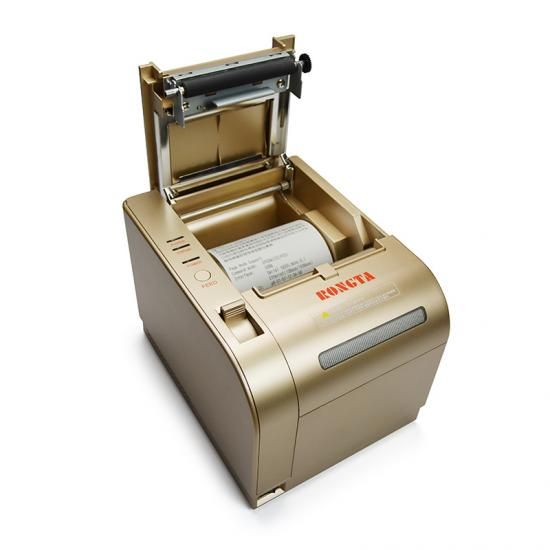

★ Drop-in paper loading, with auto cutter, partial/full cut optional
3. Huge Compatibility

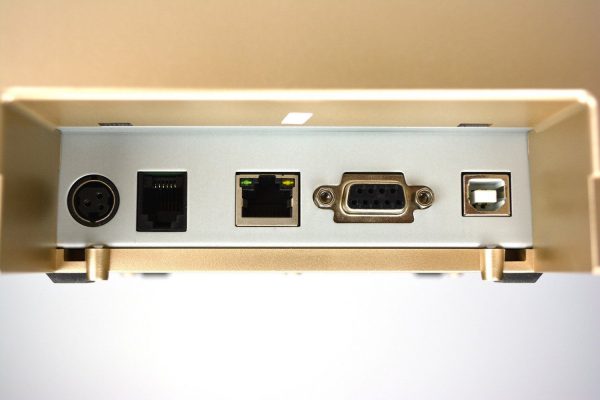

★ Parallel,Serial,USB, and Ethernet interfaces optional(support two in one, or three in one)
★ Suitable for kitchen, reception and other appliances
| Printing method | Direct thermal printing | |
| Effective printing width | 72mm or 64mm | |
| Resolution | 203dpi(8 dots/mm) | |
| Printing speed | 250mm/s | |
| Printing density | 384 dots/line or 576 dots/line | |
| Character set | GB18030 (Simplified Chinese) | |
| Print font | ASCII Font A：12×24 | |
| ASCII Font B：9×24 | ||
| Chinese: 24×24 | ||
| Character per line | Font A-42 lines or 48 lines/Font B-56 lines or 64 lines/ Chinese-21 lines or 24 lines |
|
| Paper specification |
Paper width | 79.5±0.5mm |
| Paper roll diameter | Φ80mm | |
| Paper loading | Easy paper loading | |
| Barcodes | Barcode type | UPC-A,UPC-C,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128 |
| Reliability | MCBF | 6 million lines |
| Thermal printing head | 200 million impulses (100km) | |
| Auto cutter | 1 million cuts | |
| Interface | US、UP、UP-A、USE-P、USE-A、USE-V、WUS-A、WUS | |
| Paper out detection function | optional | |
| Emulation | ESC/POS/OPOS | |
| Driver | WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/Mac |
|
| Power supply | DC 24V,2.5A | |
| Cash drawer Control | DC 24V，1A | |
| Certificate | 3C、CE、FCCID 、ROHS、REACH | |
| Dimension (LxWxH ) | 190×145×140mm | |
| Environment | temperature | working temperature: 0~45℃ |
| Storage：-10~60℃ | ||
| humidity | working humidity : 20-90% | |
| Storage：10-90%（paper exclused） | ||
Zusätzliche Informationen
| Printing speed [mm/s] | |
|---|---|
| Print Resolution [dpi] | |
| Roll width [mm] | |
| Roll Diameter [mm] | |
| RS232 | |
| USB | |
| RJ45 | |
| Manufacturer | |
| Media Width [mm] | |
| Sensor GAP | |
| Sensor Black Mark | |
| Sensor Notsch | |
| Reliability | |
| Storage temperature | -10 ~ 60 ℃ |
| Temperature operating | |
| POWER SUPPLY | |
| size | 190 × 145 × 140 |
