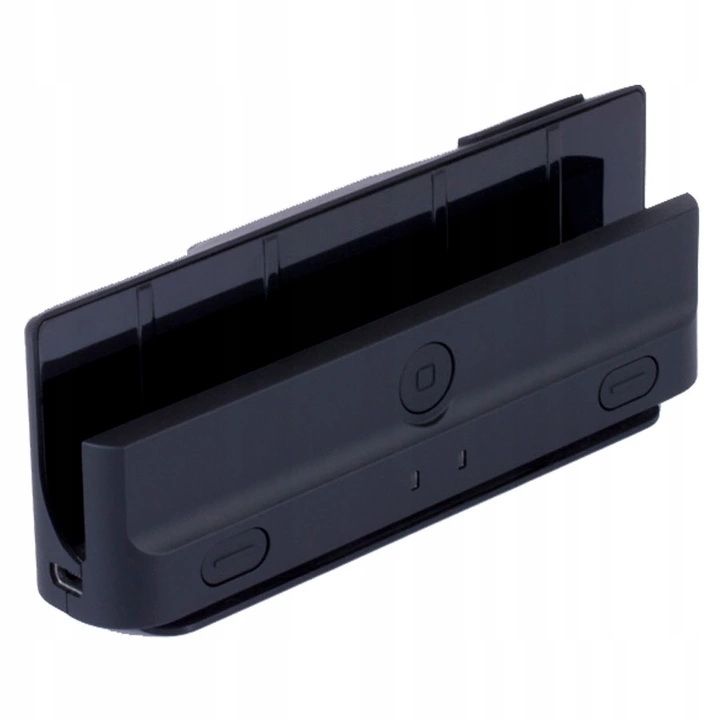

INFINEA TAB4 is a solution developed especially for devices with iOS. It is a combination of a 1D and 2D barcode scanner and a magnetic card reader, transforming these devices into advanced mobile solutions. In contrast, wireless communication options enable the transfer of collected data in real time. The ergonomic shape and light weight make it an ideal solution wherever mobile devices are necessary. Its advanced features, performance, options and accessories make it suitable for use in many areas.

Depending on the needs, the devices can be equipped with 1D and 2D readers, magnetic card readers, BT and RFID modules. Safety, ergonomics and work efficiency improve the available protective casing, holsters and pistol grips, desk chargers.

All devices are compatible with over 100 fully-functioning iOS applications. We also provide SDKs to enable the development and integration of new and existing applications.

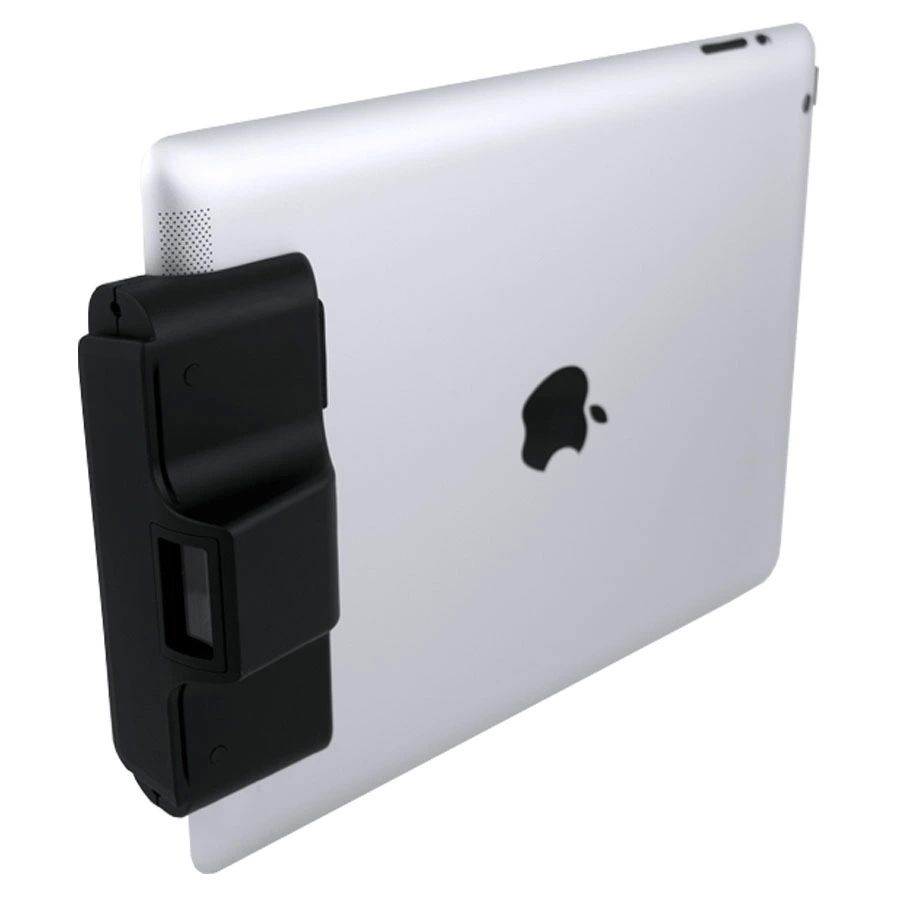

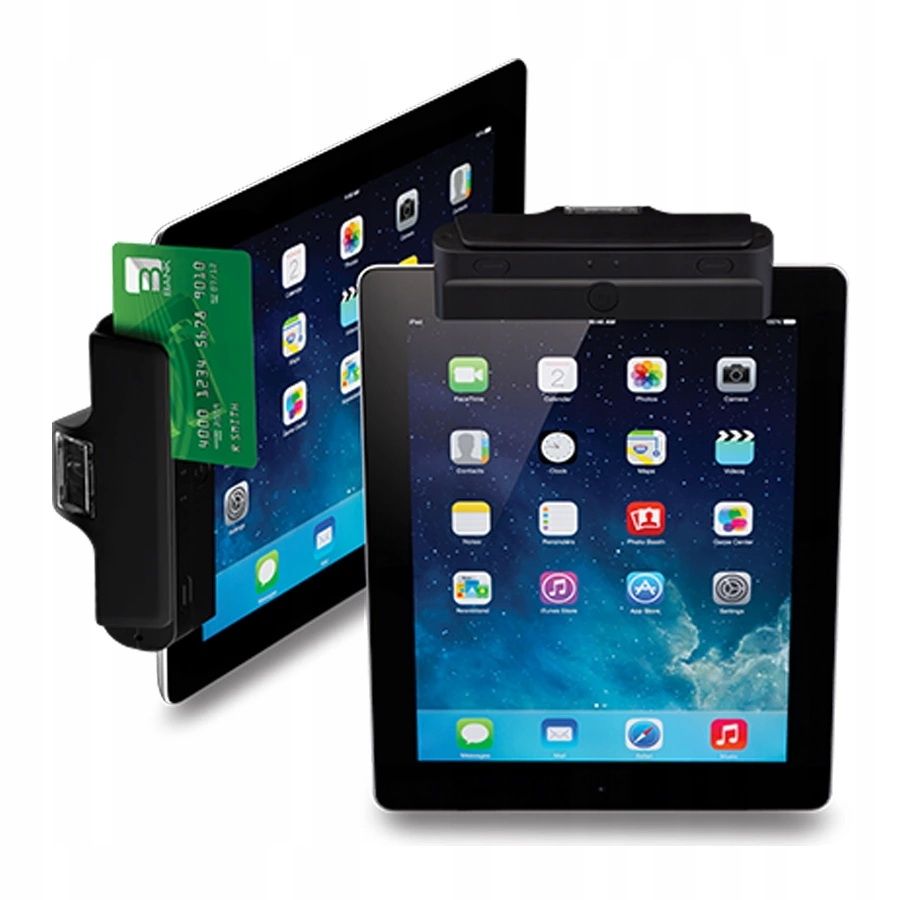

INFINEA TAB4 is dedicated to iPad 4, iPad Air, iPad Air 2, iPad mini 2, iPad mini 4.

• Keyboard and buttons: Scan button
• Magnetic card reader: Three paths – two-way
• Encryption of magnetic card reader: AES-256, DUKPT for AES-128 and 3DES
• Chip card reader: MiFARE Mini MiFARE Classic 1K / 4K, MiFare Ultra-Light / Ultra-Light-C, MiFARE PLUS 2K / 4K, ISO 14443 A & B, ISO 15693, DESFire, FeliCa
• 1D Reader: 1D Opticon MDL1000 * – Laser Barcode Scan Engine (optional)
• Supported 1D codes: JAN / UPC / EAN incl. Add on, Codabar / NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI / Plessey, S-Code, Telepen, Tri-Optic, UK / Plessey, Postal code: Chinese Post, Korean Postal Authority code, Composite codes, MicroPDF417, PDF417
• 2D reader: 2D Newland EM3070 * – Image Sensor 752×480 CMOS (option), 2D Intermec EA-30 – Image Sensor 752×480 CMOS (optional), Opticon MDI3100 – Image Sensor 752×480 CMOS (optional)
• Supported 1D and 2D Symbols: Code 128, EAN-13, EAN-8, code 39, UPC-A, UPC-E, Codabar, Interleaved2 of 5, ITF-6, ITF-14, ISBN, code 93, UCC / EAN -128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, PDF417, Date
• Connections: 9-pin Apple connector, USB BT 2.0 Class 2 (optional) – SPP – Serial port, external serial port
• Dedicated devices: iPad 4, iPad Air, iPad Air 2, iPad mini 2, iPad mini 4
• Signaling: 2 LEDs informing about the battery status
• Audio functions: Power supply
• Electromagnetic buzzer: DC 5V via mini USB, 5V DC power supply for single or 5-station charging station
• Battery: Reliability
• 3.7V / 1100mAh lithium-ion battery: 1,000,000 magnetic strokes
• Certifications: CE, FCC, PCI PTS 3.x (when the Secure Magnetic Card Reader is installed), Apple® Mfi
• Dimension X x D x H

76.8 x 156.5 x 21.7 mm with a 1D reader,

76.8 x 156.5 x 26.7 mm with a 2D reader

• Weight: Operating temperature range
• 115 g with battery and a 2D reader (without iPad):-10 ° C to + 40 ° C / 5 to 90% RH
• Range of storage temperatures: Accessories
• -20 ° C to + 50 ° C / 5 to 90% RH: Charging station for one device (GT1), charging station for 5 devices (GT5)
