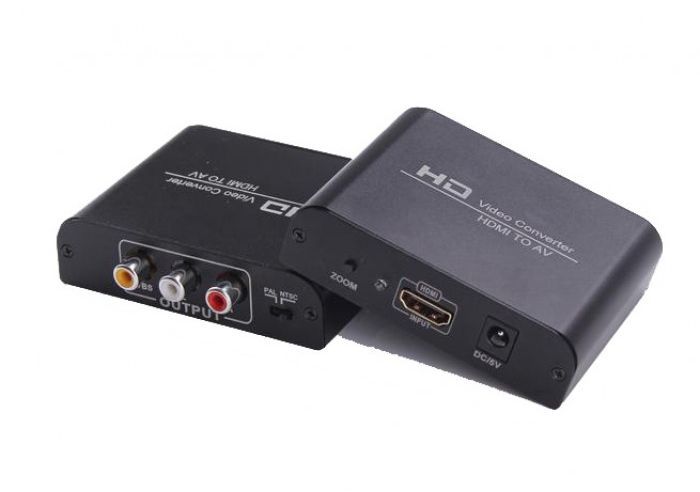

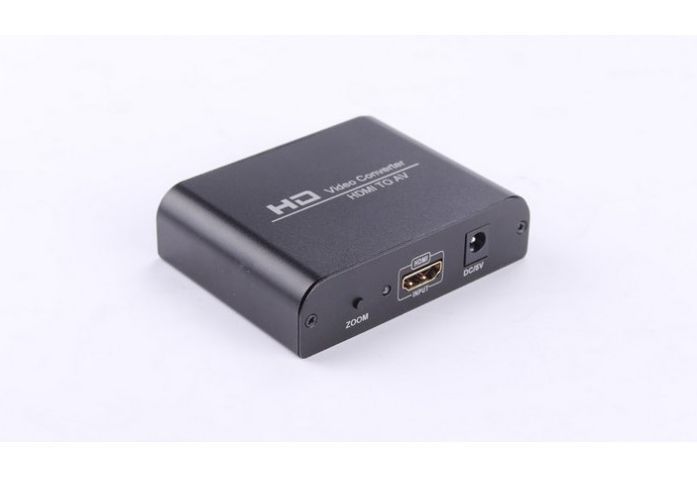

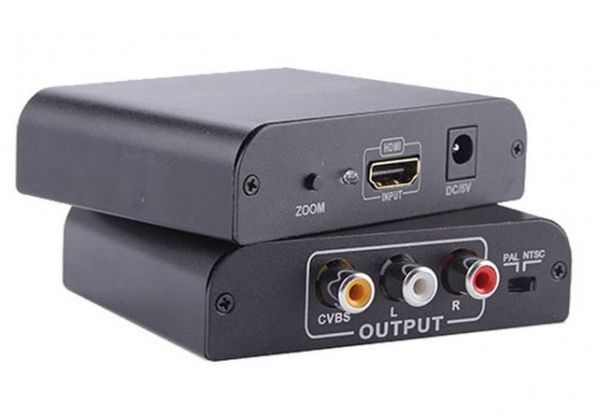

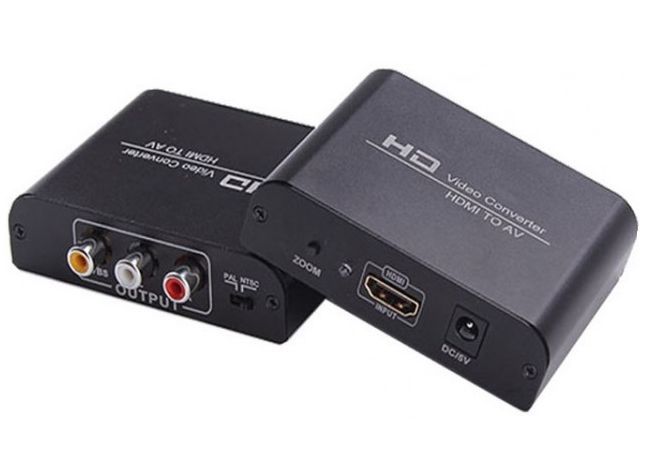

Converter HDMI to AV Composite Full HD
19,00$
Description:
The HDMI to AV signal converter will convert HDMI video signal and 2CH audio signal to AV (CVBS composite video signal and FL / FR stereo audio signals. Support NTSC 480i and PAL 576i standard TVs.
Features:
- input: hdmi
- output: av/rca composite, r/l audio
- support highest video resolution 1080p
- support uncompressed audio such as LPCM
- hdmi digital signal to Composite , R/L Audio
- HDMI transmission Rate:5Gbps
- No need to install drivers, portable, flexible, plug and play.
- Low power
- Support NTSC and PAL two standard TV formats output
- Compliant with HDMI 1.3
Specification:
|
Signal Inputs |
HDMI Signal |
|
Output Video |
Composite Signal (Yellow,White,Red) |
|
Dimensions(mm) |
66(D)x55(W)x20(H) |
|
Wight (g) |
40 |
|
HDMI Input Resolution |
640×480@60Hz, 800×600@60Hz, 1024×768@60Hz, 1280×720@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1600×1200@60Hz, 1920×1080@60Hz, 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz. |
|
CVBS output |
PAL, NTSC-M, (NTSC-J) |
|
Limited Warranty |
1 Year Parts and Labor |
|
Operating Temperature |
0°C to +70°C |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10°C to +80°C |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Supply |
USB Power Cable |
|
Power consumption (Max) |
5W |
