Industrial fanless mini PC Nettop Computer HTPC V7 i7-7500U DDR4 mSATA HDMI VGA
530,00$ – 590,00$

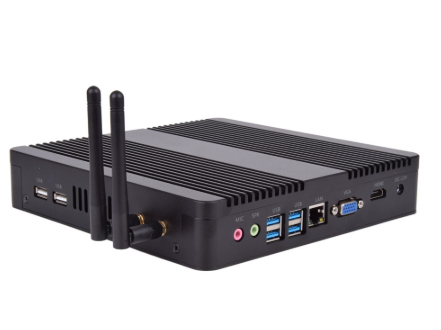

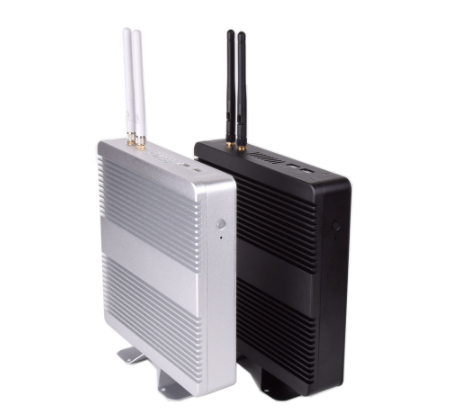

- Full Aluminum Silver/Black color shell, Exquisite production craft on outside design, product dimension 200*200*40MM only.
- Built-in Wi-Fi or Bluetooth with dual external antennas for option.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 17W or 15W, save much energy and eco-friendly.
- Can install MSATA SSD+2.5” SATA HDD together.

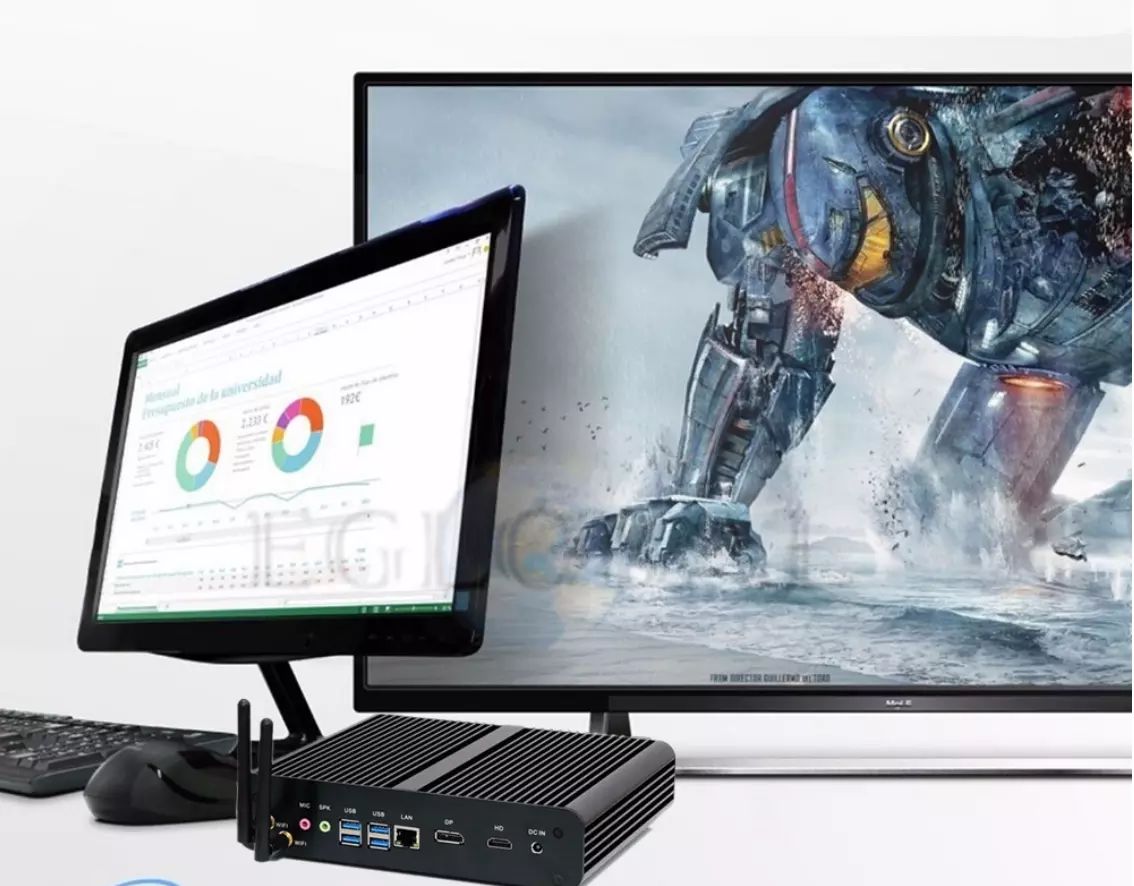

- Support VGA+ HDMI dual display output synchronously.

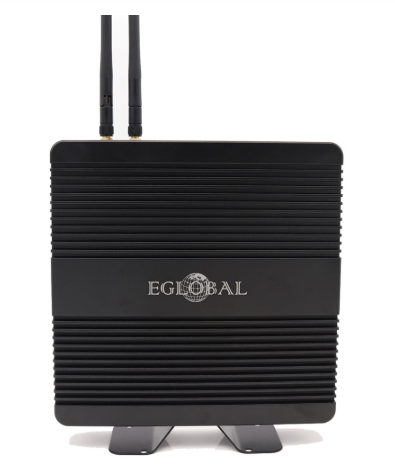

- Can stand up by free bracket and can be mounted back of monitor by VESA mount.

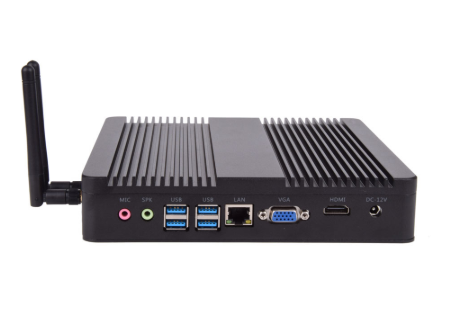

![]({{media url="wysiwyg/4/industrial-fanless-mini-pc-nettop-computer-1.png"}})
Specifications:
|
Basic Information: |
|
|
CPU |
Intel Core i3-5005u/i3-6006U/i3-7100U/i5-4200U/i5-5250U/i5-7200U/i7-4500U |
|
TDP |
15W |
|
BOIS |
AMI BIOS, ACPI supported |
|
Chipset |
Refer to CPU |
|
Memory |
2* SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB Dual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600 |
|
OS |
Windows 7/Windows 8/Windows 10/Linux |
|
PXE |
YES |
|
Audio |
ALC662 sound chip, 6-channel Intel Lynx Point-LP HDA |
|
Network |
Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |
|
Video |
Refer to CPU |
|

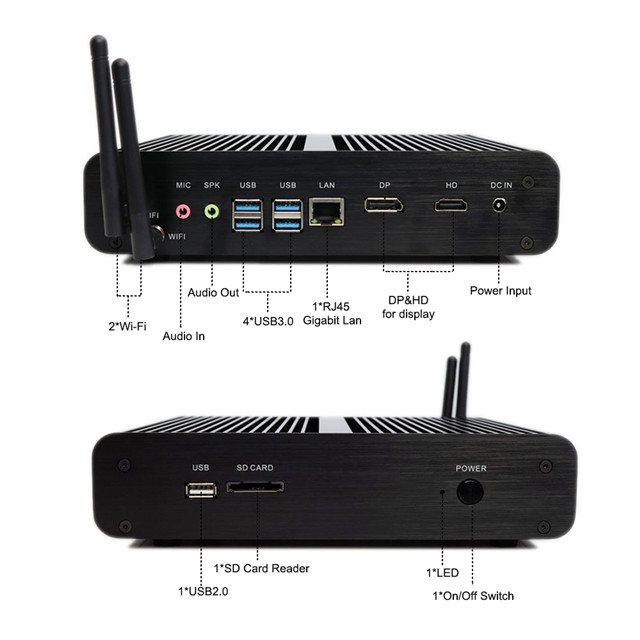

Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x DC In |
|
LED |
1 x LED |
|
USB |
2 x USB2.0, 4 x USB3.0 |
|
Display |
1 x VGA, 1 x HDMI |
|
LAN |
1 x RJ45 Intel Giga LAN |
|
Audio |
1 x MIC, 1 x SPK |
|
Storage |
|
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
|
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
|
Wi-Fi |
|
|
Module |
1 x mini PCIE-half port for Wi-Fi module |
|
Antenna |
2 x inner RF cables and 2 x external antennas, |
|
Power and Working Environment |
|
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC +12V~+19V, recommend 12V/5A |
|
Operating Temperature |
0/70 Centigrade(32F~140F) |
|
Storage Temperature |
-20/+85 Centigrade |
|
Relative Humidity |
0%~90% (non-condensing) |
|

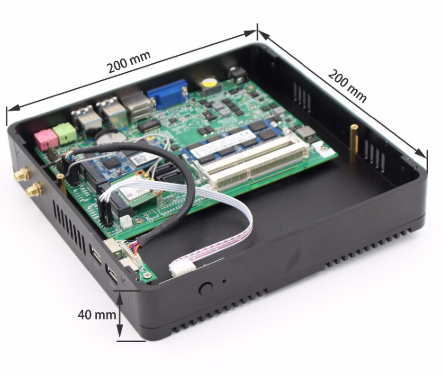

Product Dimension & Details |
|
|
Size |
200*200*40mm |
|
Weight |
Gross 2.5kg |
|
Shell |
Black color aluminum alloy(any customized color for bulk order) |
|
Mounting |
4 Mounting holes on case |
|
Cooling Mode |
Fanless |
|
Functions |
Support calls on function automatically, Wake-On-LAN |
|
Package Content |
|
|
Standard |
1X Mini PC, 1X Power Adapter, , 1xPower Cord, 1xScrews Bag, 1x Bracket (Stand&Mount) |
|
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1x VESA mount |
- CPU: Onboard Intel Core:
- i5 4200U 1.6GHz Max 2.6GHz(Turbo boost Technology) 2 Core 4 threads
- i7 4500U 1.8GHz, Max 3.0GHz (Turbo boost Technology)2 Core 4 threads
- i5 5250U 1.6GHz Max 2.7GHz(Turbo boost Technology) 2 Core 4 threads
- i5 5005U 2.0GHz, Max(Turbo boost Technology) 2 Core 4 threads
- i5-5250U 1.6GHz max 2.7GHz 2 Core 4 threads, 3M Cache, Intel HD Graphics 6000(300MHz~950MHz)
- i3-6006U 2.0GHz Dual Core 4 thread, 3M Cache, Intel HD Graphics 520(300~900MHz)
- i3-7100U 2.4GHz 2 Core 4 threads, 3M Cache, Intel HD Graphics 620(300MHz~1GHz)
- i5-7200U 2.5GHz max 3.1GHz 2 Core 4 threads, 3M Cache, Intel HD Graphics 620(300MHz~1GHz)
These options add extra cost
- USB Infrared remote (can turn power off but not turn on)
- 300M WiFi uprade to 5GHz AC WiFi & Bluetooth
- Bluetooth 4.0 USB Dongle
- External USB DVD-ROM
- External USB Bluray DVD-ROM
- USB 2.4GHz Air Keyboard& Mouse
- Genuine OEM windows license sticker
- 500GB 2.5” HDD, 1TB 2.5” HDD, 2TB 2.5” HDD
- 3G Module, 4G Module
