Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10

  • SKU: PCG03
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-0
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-0
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4504
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4505
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4506
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4507
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4508
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4509
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4515
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4516
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4513
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4523
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4524
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4514
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4520
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4517
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4518
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4519
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4521
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4522
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4512
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4527
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4528
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4529
Mini PC MeLE PCG03 Quad Core HTPC Atom Z3735F 2GB RAM 1080P HDMI 1.4 VGA LAN WiFi Bluetooth Windows 10-4511
Roll over image to zoom in
Click to open expanded view

187,99$

Out of stock

  • Intel mini-HTPC with pre-installed fully licenced official Windows 10 with Bing NTE
  • 2GB RAM + 32GB eMMC SSD.
  • 64bit Intel Bay Trail chipset with Intel Gen7 HD graphics.

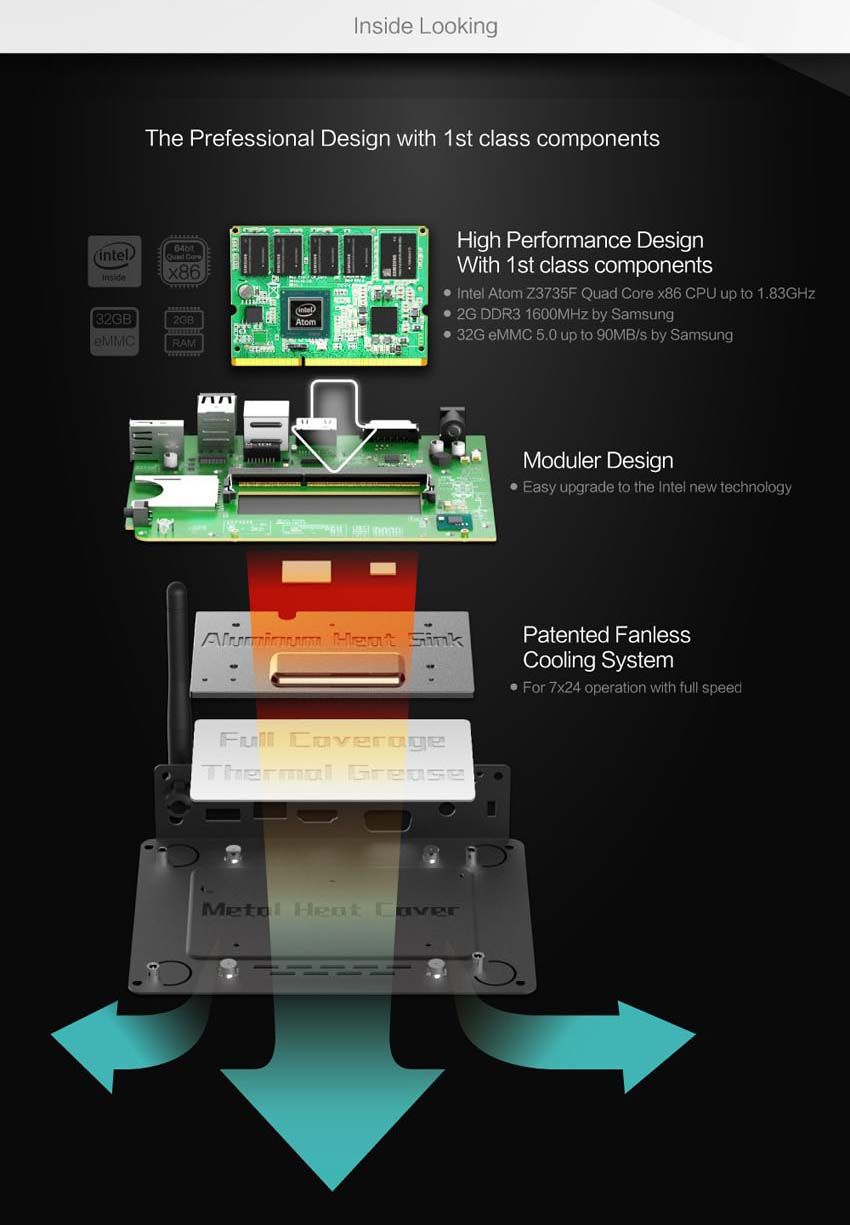

  • Fanless & low power consumption, get 1 MeLE mini PC with 1 year lower electricity bill tariffs

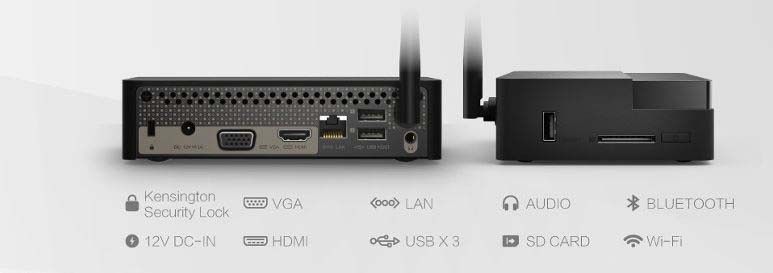

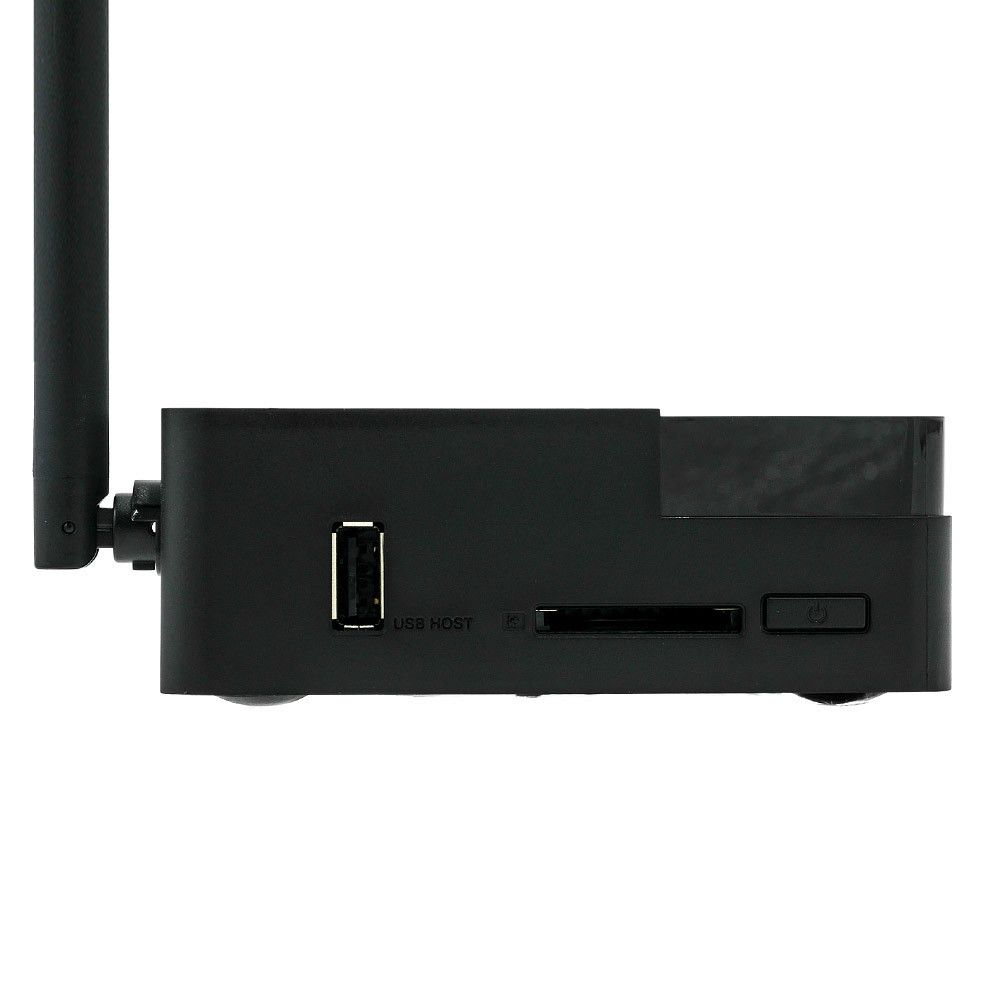

  • Full connectivity interface: Lan/WiFi 802.n/Blue tooth4.0/ 3.5mm stereo/3*USB host/Kensington security lock /VGA/HDMI/SD card reader
  • Dual display with VGA and HDMI at the same time, Perfect work with Kodi/XBMC
  • Dolby Digital and DTS HD-Audio.
Add to wishlist
Compare
SKU: PCG03 Category: Tags: ,

You may also like

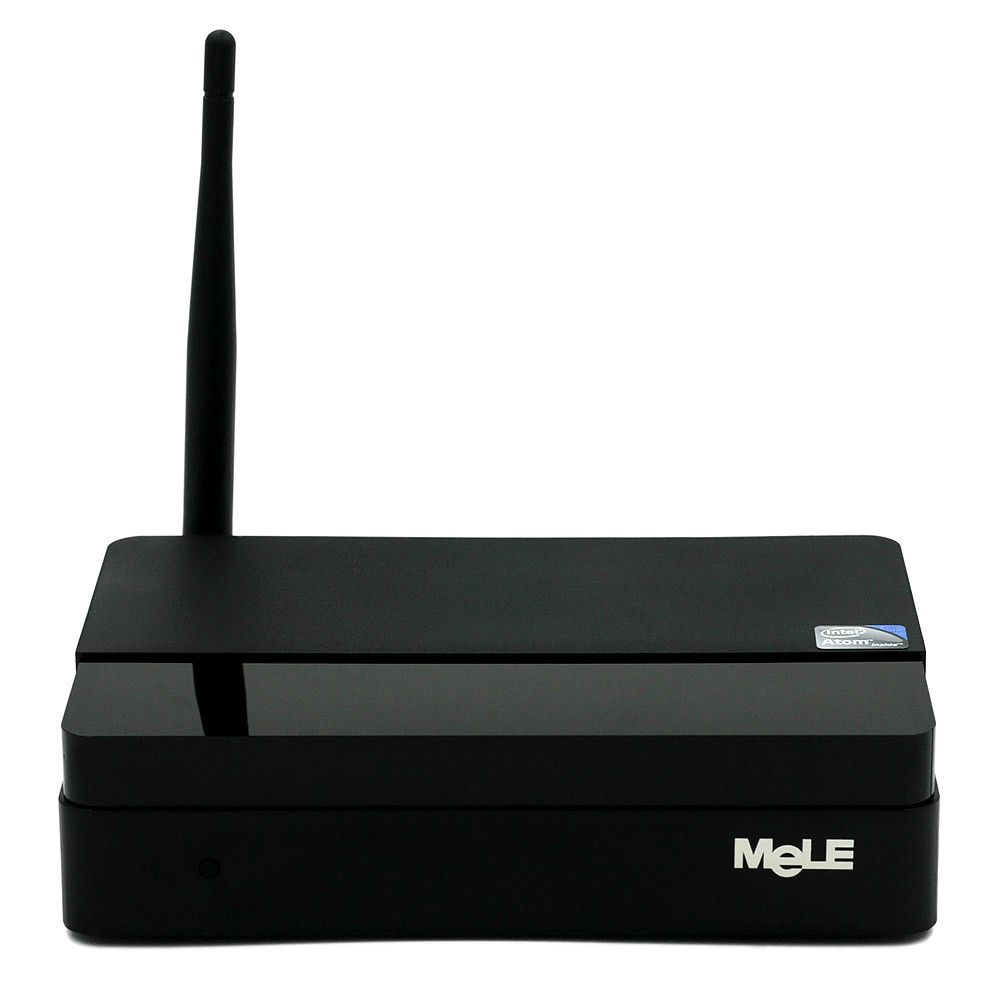

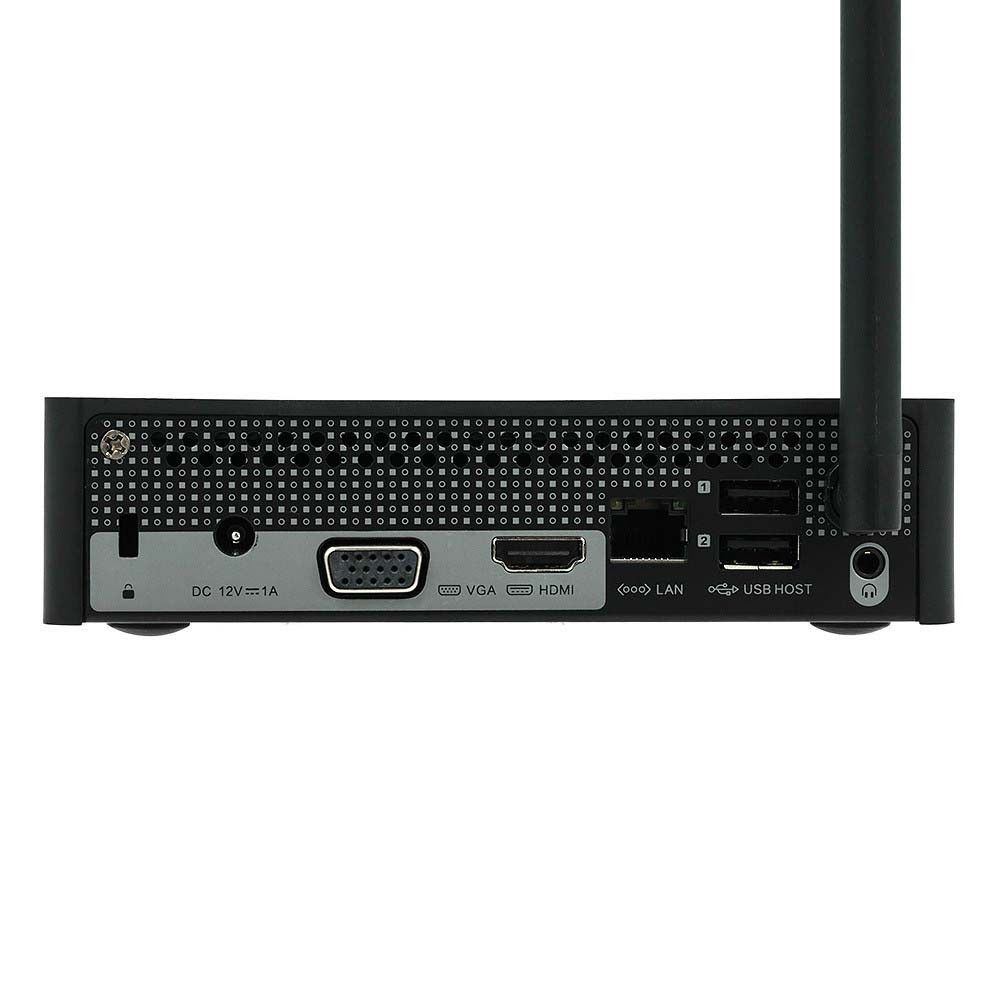

MeLE PCG03 is a miniature PC, Mini HTPC, which is based on a hardware platform Intel Bay Trail-T 64-bit with passive cooling quad-core processor Intel Atom Atom Z3735F (1.33 ~ 1.83GGts), which support for Intel Burst four threads, 2 MB L2 cache and an integrated graphics controller Intel HD Graphics Technology 2.0 (311 MHz/646 MHz). PCG03 has 2GB of RAM DDR3, 32GB eMMC and has a memory support expansion by SD cards and external hard drives. Equipped with all the necessary interfaces: there are on the back side video outputs: HDMI and D-Sub/VGA, three ports USB 2.0, plus there is a network card 100Mb/s, support for 802.11n/g/b WiFi, analog 3.5 mm audio jack for headset. PCG03 characterized by small dimensions 150x120x40mm: operated MeLE PCG03 by x86 OS Windows 10 with Bing.

It should be noted that processor is cooled passively and accordingly no noise, so it is widely used:

  • as a home multimedia HTPC, i.e. for video, music,
  • for games if don’t require a powerful graphics card,
  • as media center for TV.

It may also be used

  • as an office computer or even
  • for industrial applications, for example,
  • shops and restaurants as a workplace cashier or waiter (POS-system).

Product Description

  • MeLE PCG03
  • Hardware:
  • CPU:Intel Atom Z3735F Quad Core x86 CPU up to 1.83GHz
  • GPU: Intel HD Graphics
  • RAM: 2G DDR3L
  • ROM: 32GB eMMC,Expandable via SD/SDHC up to 512MB
  • Ethernet: 10/100Mbps Ethernet
  • WiFi: 802.11n
  • Bluetooth: Bluetooth 4.0
  • Size: 150mm*120mm*40mm
  • Kensington Security Lock: Yes
  • Operation System: Official Windows 10 for entry Desktop/aios

Connectivity

  • Video output: VGA, HDMI 1.4
  • Audio output: 3.5mm stereo
  • USB Ports: USB 2.0 Host X 3
  • SD card reader: support SD/SDHC card

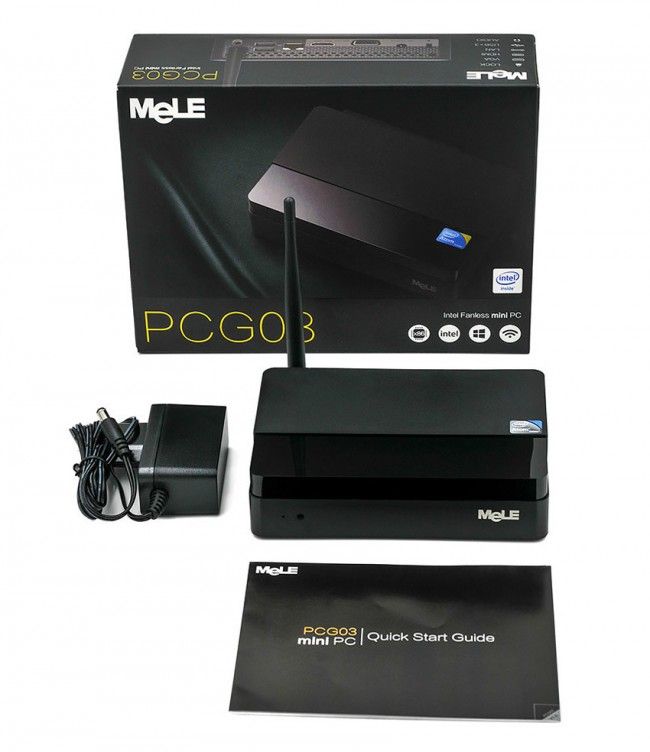

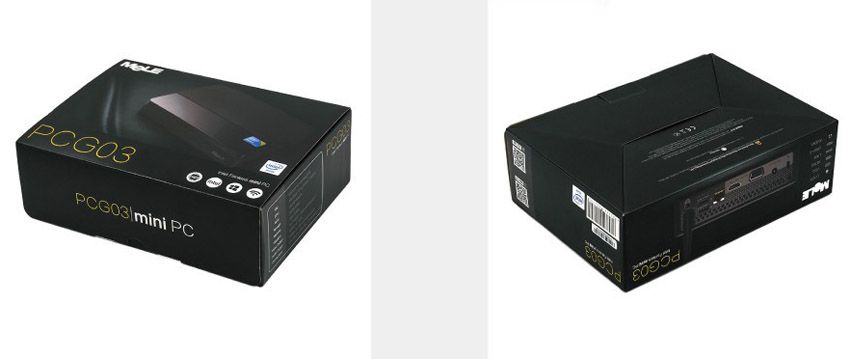

Package content:

  • 1 x MeLE PCG03
  • 1 x 12V power adaptor


Specification
Model No. PCG03

Hardware
CPU Chipset Intel Baytrail-T
Model Z3735F
Frequency 1.33Ghz to1.83GHz
GPU Model Intel HD Graphic(Gen7 LP)
Multi-Media (Hardware decoding) Picture BMP, JPG, GIF, PNG
Video MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1 ,MVC,AVS,MJPEG. (UP TO 1080P)
Audio MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3
RAM DDR3 2GB DDR3L
ROM Flash eMMC 32GB
SATA HDD support N/A
SSD SSD support N/A

Software
OS OS Version Windows 10 with Bing NTE
Language 16 countries’ languages pre-installed
FLASH FLASH hardware decoding; FLASH 11
HTML5 Supported

Internet
WIFI WIFI module WIFI 802.11b/g/n+BT 4.0
3G USB 3G dongle 3G Dongle Supported (WCDMA/EVDO/TD-SCDMA)
Ethernet 10/100M 10/100M RJ45 Ethernet

Connector
Card Micro/TF max support 128G Micro/TF card reader (SD pop-up)
USB external storage and data transfer USB2.0 * 3
Other HDD (SATA) N/A
Video HDMI output HDMI 1.4 * 1
VGA output VGA * 1
Audio Audio output 3.5mm earphone
Audio Input Micphone (Combo 3.5″)
Input device Mouse USB mouse , wired & wireless
Keyboard USB keyboard , wired & wireless
Button system control power button * 1
Indicator system indicator standby * 1 ; working * 1 ; WiFi light * 1
DC-IN Power 12V/1A

Power
CMOS battery Chargeable lithium cell x 1
Power adaptor 12V/1A (GS) x 1

Dimensional
Unit Size 150 x 104 x 36.5mm
Weight 350g

Additional information

Weight 350 kg
Chipset

Memory

ROM Storage

EAN-code

Power Supply

WiFi

Bluetooth

3D

3G

I/O

<table border="0">
<tbody>
<tr>
<td>
<p><span class="font0">Card</span></p>
</td>
<td>
<p><span class="font0">Micro/TF</span></p>
</td>
<td>
<p><span class="font0">max support 128G Micro/TF card reader (SD pop-up)</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">USB</span></p>
</td>
<td>
<p><span class="font0">external storage and data transfer</span></p>
</td>
<td>
<p><span class="font0">USB2.0 * 3</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">Other</span></p>
</td>
<td>
<p><span class="font0">HDD (SATA)</span></p>
</td>
<td>
<p><span class="font0">N/A</span></p>
</td>
</tr>
<tr>
<td rowspan="2">
<p><span class="font0">Video</span></p>
</td>
<td>
<p><span class="font0">HDMI output</span></p>
</td>
<td>
<p><span class="font0">HDMI 1.4 * 1</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">VGA output</span></p>
</td>
<td>
<p><span class="font0">VGA * 1</span></p>
</td>
</tr>
<tr>
<td rowspan="2">
<p><span class="font0">Audio</span></p>
</td>
<td>
<p><span class="font0">Audio output</span></p>
</td>
<td>
<p><span class="font0">3.5mm earphone</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">Audio Input</span></p>
</td>
<td>
<p><span class="font0">Micphone (Combo 3.5")</span></p>
</td>
</tr>
<tr>
<td rowspan="2">
<p><span class="font0">Input device</span></p>
</td>
<td>
<p><span class="font0">Mouse</span></p>
</td>
<td>
<p><span class="font0">USB mouse , wired & wireless</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">Keyboard</span></p>
</td>
<td>
<p><span class="font0">USB keyboard , wired & wireless</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">Button</span></p>
</td>
<td>
<p><span class="font0">system control</span></p>
</td>
<td>
<p><span class="font0">power button * 1</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">Indicator</span></p>
</td>
<td>
<p><span class="font0">system indicator</span></p>
</td>
<td>
<p><span class="font0">standby * 1 ; working * 1 ; WiFi light * 1</span></p>
</td>
</tr>
<tr>
<td>
<p><span class="font0">DC-IN</span></p>
</td>
<td>
<p><span class="font0">Power</span></p>
</td>
<td>
<p><span class="font0">12V/1A</span></p>
</td>
</tr>
</tbody>
</table>
Manufacturer

Support language

Decoder format

All windows
Media format

All windows
Music format

All windows
Photo format

All windows
Other formats

All windows
Applications

All windows
size

150 x 104 x 36.5mm
color

Black
