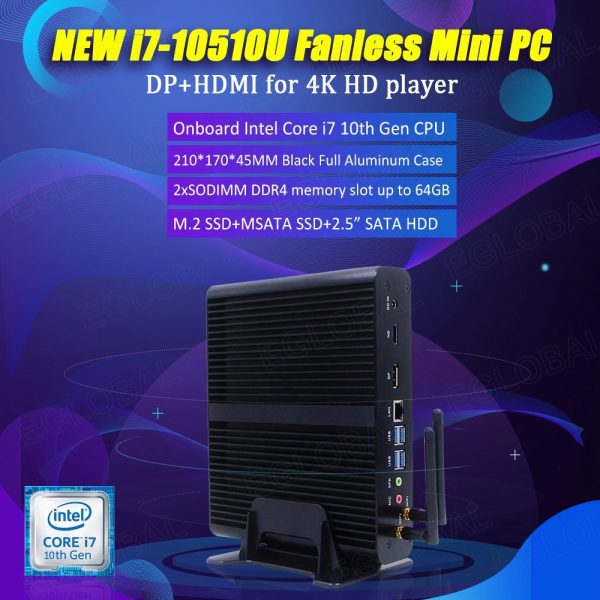

Industrial fanless mini PC Nettop Computer HTPC V7 Intel Core™ i7-10510 DDR4 mSATA HDMI DP

750,00$810,00$

  • Latest powerful processor Intel 10th Gen and 2xSODIMM DDR4 memory slots up to 64GB stronger performance and give you a smooth experience.

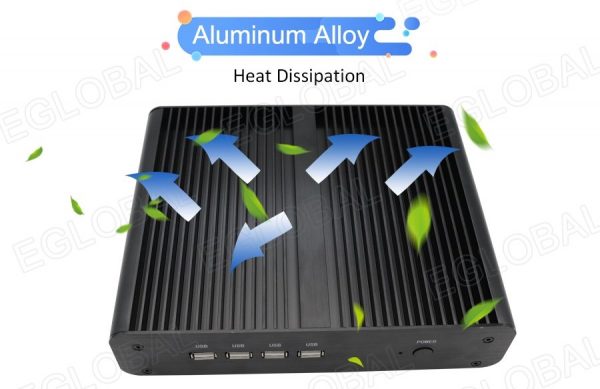

  • Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.
  • Fanless system without cooling fan, no any noise, work as long as 24 hours.
  • Low consumption TDP only 15W, save much energy and eco-friendly.

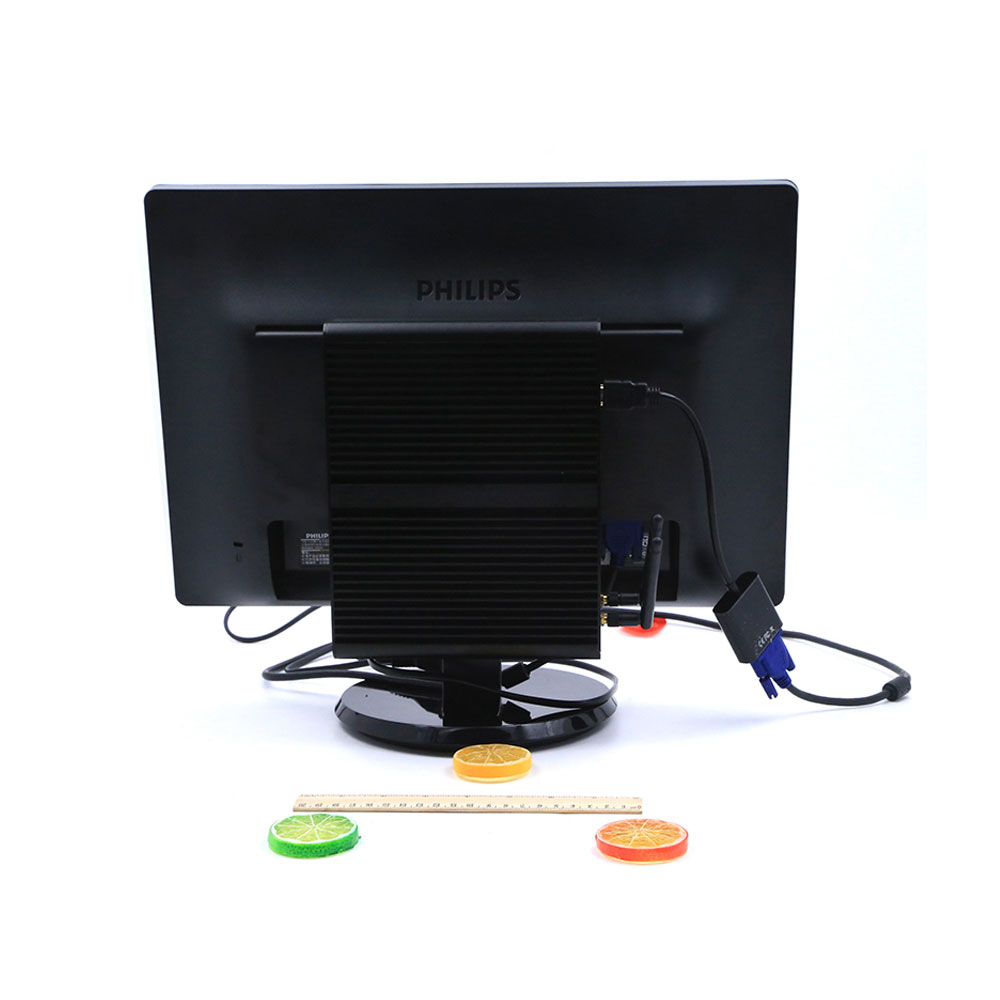

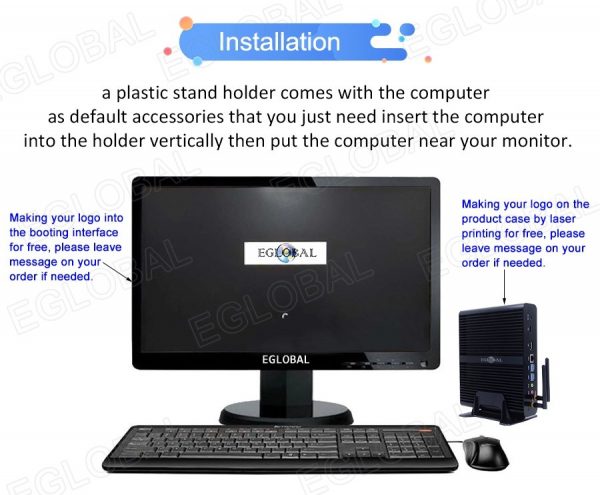

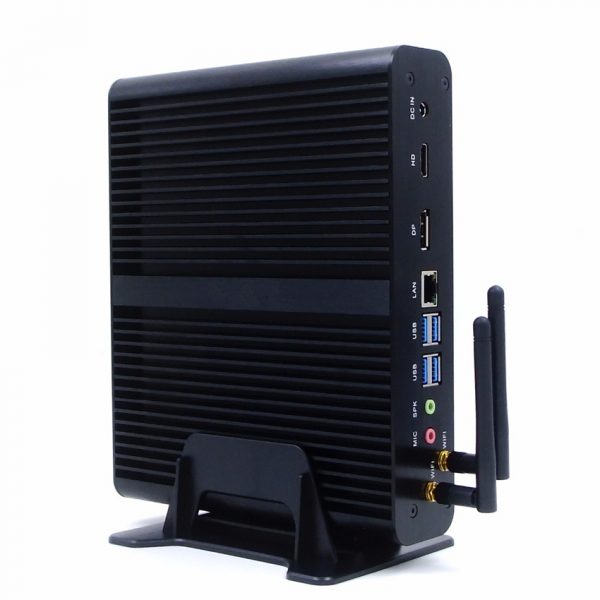

  • Can stand up by free bracket or can be mounted back of monitor or wall.

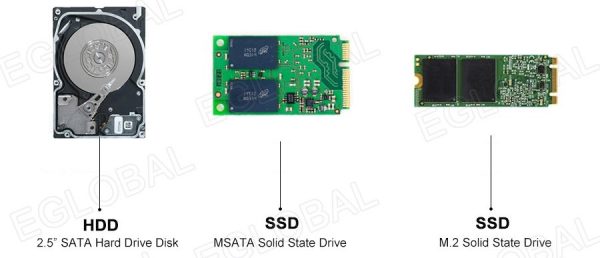

  • Can install M.2 SSD+MSATA SSD+2.5” SATA HDD together.
  • Support DP + HDMI dual display output synchronously.
Clear
CompareSold By: VenBOX online store
SKU: V7-10510U Categories: ,

Specifications:

Basic Information:
CPU Onboard Intel Comet Lake Intel Core i7 10510U 1.8GHz up to 4.90GHz Quad Cores 8 Threads
TDP 15W
Motherboard 170 x 170mm customized size
BOIS AMI BIOS, ACPI supported
Chipset Intel Comet Lake
Memory 2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB/64GB DDR4-2666, LPDDR3-2133
OS Windows 10/Linux

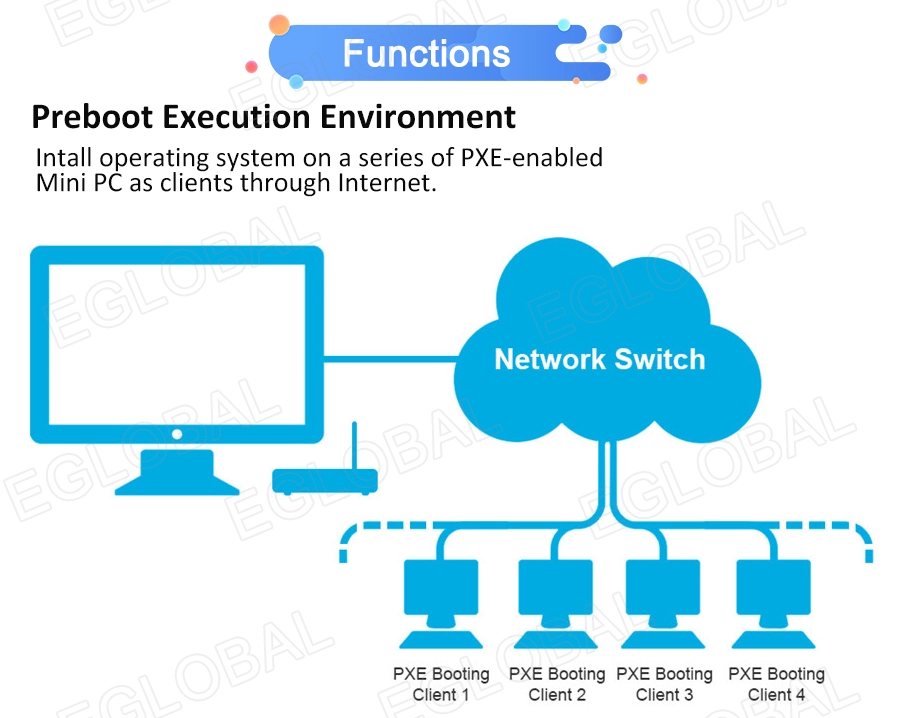

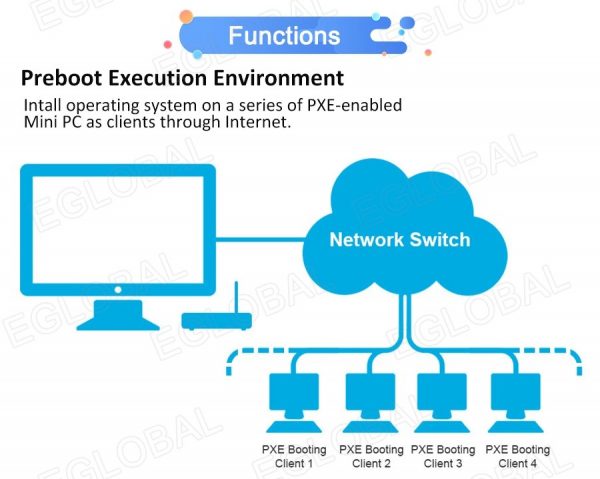

PXE YES
Audio ALC897 chip, 7.1 channel sound Intel Lynx Point-LP HDA

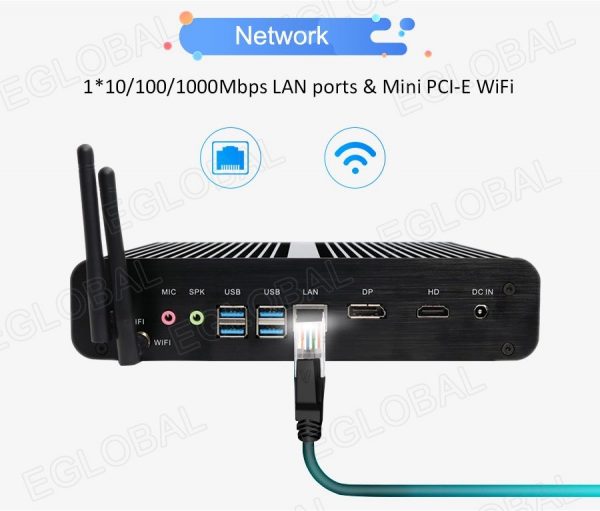

Network Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Video Intel® UHD Graphics
Wi-Fi:

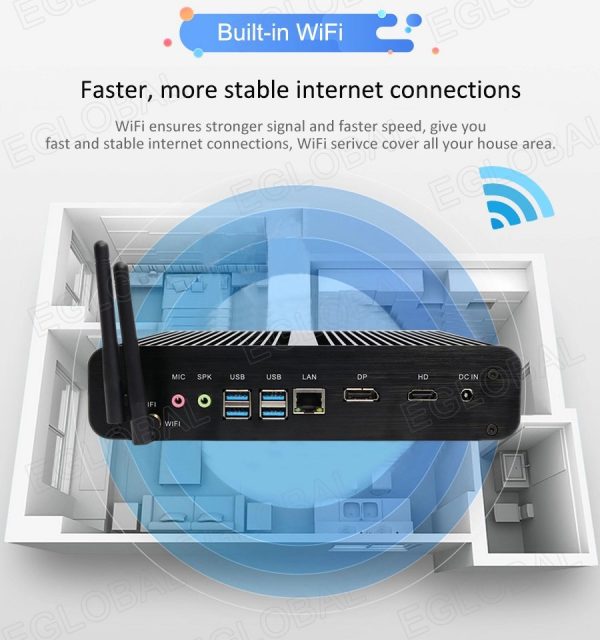

Module 1 x mini-PCIE port for Wi-Fi module
Antenna 2 x inner RF cables and 2 x external antennas
Power and Working Environment:
Input DC100-240V AC/50-60Hz
Output DC +12V~+19V, recommend 19V/3~5A
Operating Temperature 0/70 Centigrade
Storage Temperature -20/+80 Centigrade
Relative Humidity 0%~90% (non-condensing)

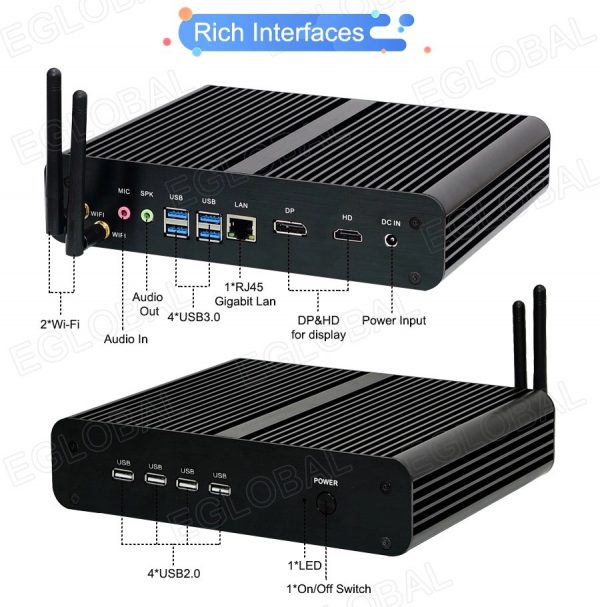

Input/output port:
Switch 1 x Power On/Off Switch
Power 1 x 12V DC In
LED 1 x LED
USB
  • 4 x USB2.0,
  • 4 x USB3.0
Display 1 x DP, 1 x HDMI
LAN 1 x RJ45 Giga LAN
Audio 1 x MIC, 1 x SPK

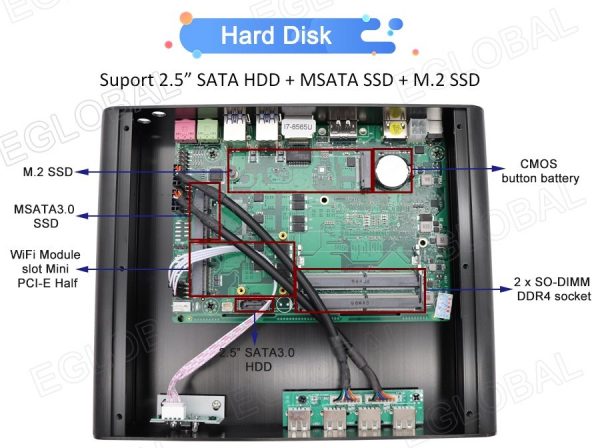

Storage:
MSATA
  • 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
  • 1 x M.2 slot for M.2 SSD, support 6Gb/s
SATA 2 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Product Dimension & Details:

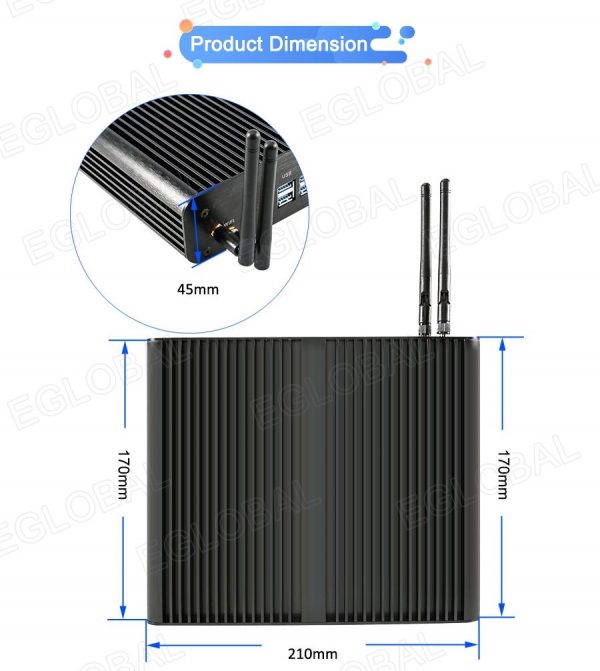

Size 210*170*45mm
Weight Net 1.8kg, Gross 2.7kg
Shell Black color aluminum alloy
Cooling Mode Fanless

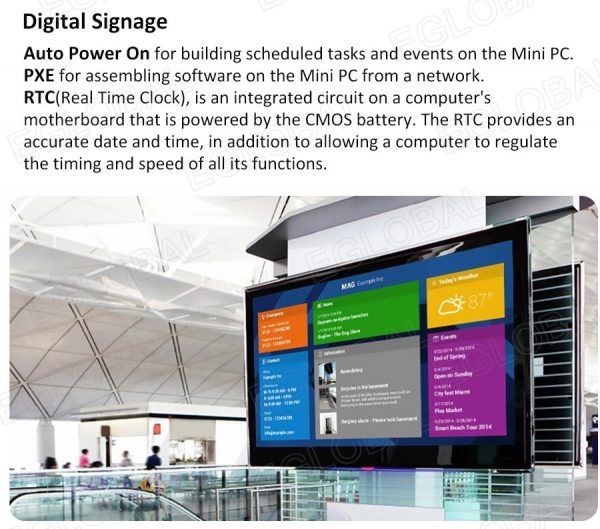

Functions Calls on function automatically, RTC, AWAL
Package Content:
Standard
  • 1xMini PC,
  • 1xPower Adapter,
  • 1xPower Cord,
  • 1xScrews Bag,
  • 1xBracket
Optional
  • Wi-Fi antennas,
  • 1xHDMI cable,
  • 1xUser Manual,

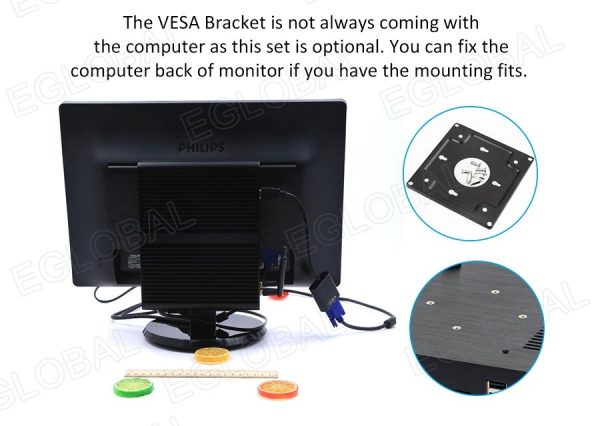

  • 1xVESA mount

These options add extra cost

  1. USB Infrared remote (can turn power off but not turn on)
  2. 300M WiFi uprade to 5GHz AC WiFi & Bluetooth
  3. Bluetooth 4.0 USB Dongle
  4. External USB DVD-ROM
  5. External USB Bluray DVD-ROM
  6. USB 2.4GHz Air Keyboard& Mouse
  7. Genuine OEM windows license sticker
  8. 500GB 2.5” HDD, 1TB 2.5” HDD, 2TB 2.5” HDD
  9. 3G Module, 4G Module






















Additional information

Weight 1.8 kg
CPU

Chipset

Graphics Card

Memory

, ,

HDD

, ,

ROM Storage

, ,

Сonnection type

Bluetooth

Carton Meas.

Connection interfaces

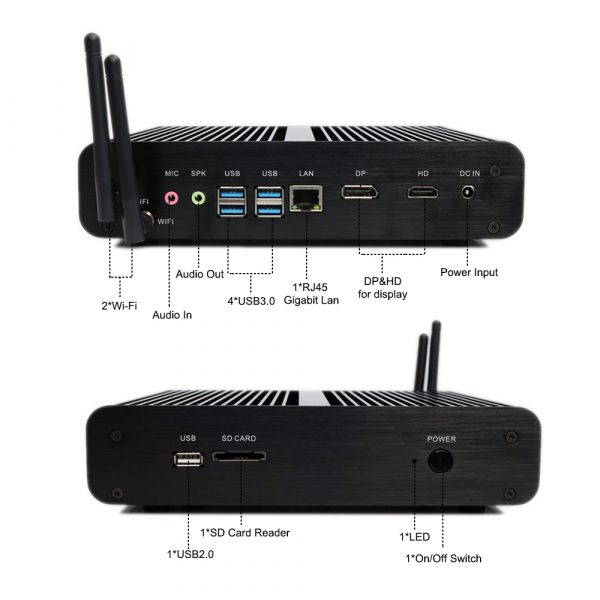

I/O

<table border="0" cellspacing="0" cellpadding="0">
<tbody>
<tr>
<td>Front panel ports</td>
<td>
<ul>
<li>1* Power indicator and switch,</li>
<li>4* USB2.0</li>
</ul>
</td>
</tr>
<tr>

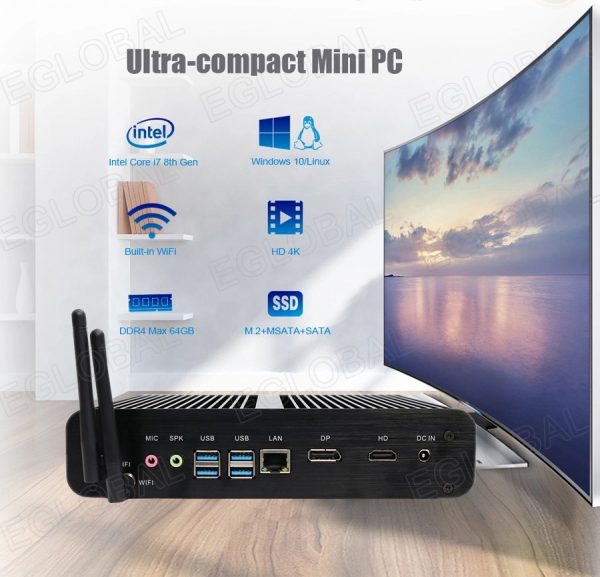

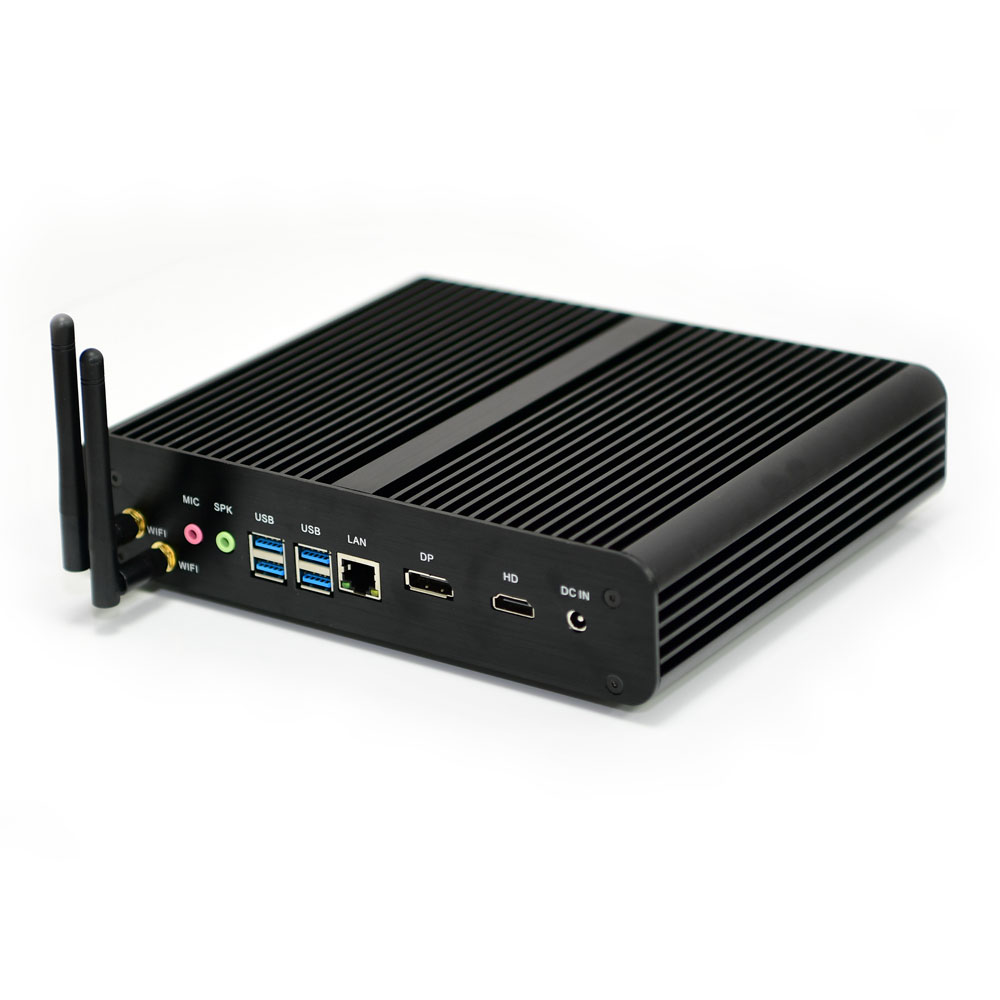

<td>Backside ports</td>
<td>
<ul>
<li>2*WiFi antennas ,</li>
<li>1*MIC,</li>
<li>1*SPK,</li>
<li>4*USB3.0,</li>
<li>1*LAN,</li>
<li>1*DP,</li>
<li>1*HDMI,</li>
<li>1*DC IN</li>
</ul>
</td>
</tr>
<tr>
<td>Internal ports</td>
<td>
<ul>
<li>1*mSATA3.0 port, support 6Gb/s</li>
<li>1*M.2 SSD port, support 6Gb/s</li>
<li>1*SATA3.0 port, support 6Gb/s</li>
<li>1*mini-PCIE port (WIFI&BT)</li>
</ul>
</td>
</tr>
</tbody>
</table>

Battery type

No Battery

OS

Support language

Power Supply

color

Black

Material

size

170*170*45mm

Box Size

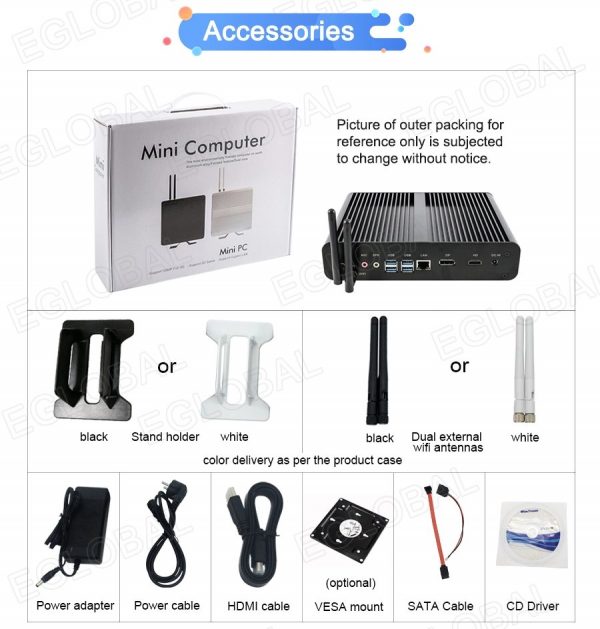

Accessories

<ul>
<li>1*Mini PC</li>
<li>1*Power adapter</li>
<li>1*HDMI cable</li>
<li>1*CD driver</li>
<li>1*Desk bracket</li>
<li>1*Set of SATA power and data cables (for 2.5'' hard drive installation)</li>
<li>2*WiFi antennas</li>
<li>1*Vesa Bracket (Optional)<br>
</li>
</ul>

Manufacturer
