Digital SPDIF/Coaxial to Analog RCA Stereo Audio Converter HDA-2MB
Roll over image to zoom in
27,00$
Converts digital audio S/PDIF or Coaxial signals to analog L/R RCA signals and 3.5mm analog audio.
- Digital interpolation filter and digital to analog converter (DAC)
- Accepts uncompressed digital audio input
- 2-channel LPCM (Linear Pulse Code Modulation)
- 24-bit S/PDIF incoming bitstream on left and right channels
- Support data rate up to SPDIF 192kHz@24bits for Analog L/R conversion

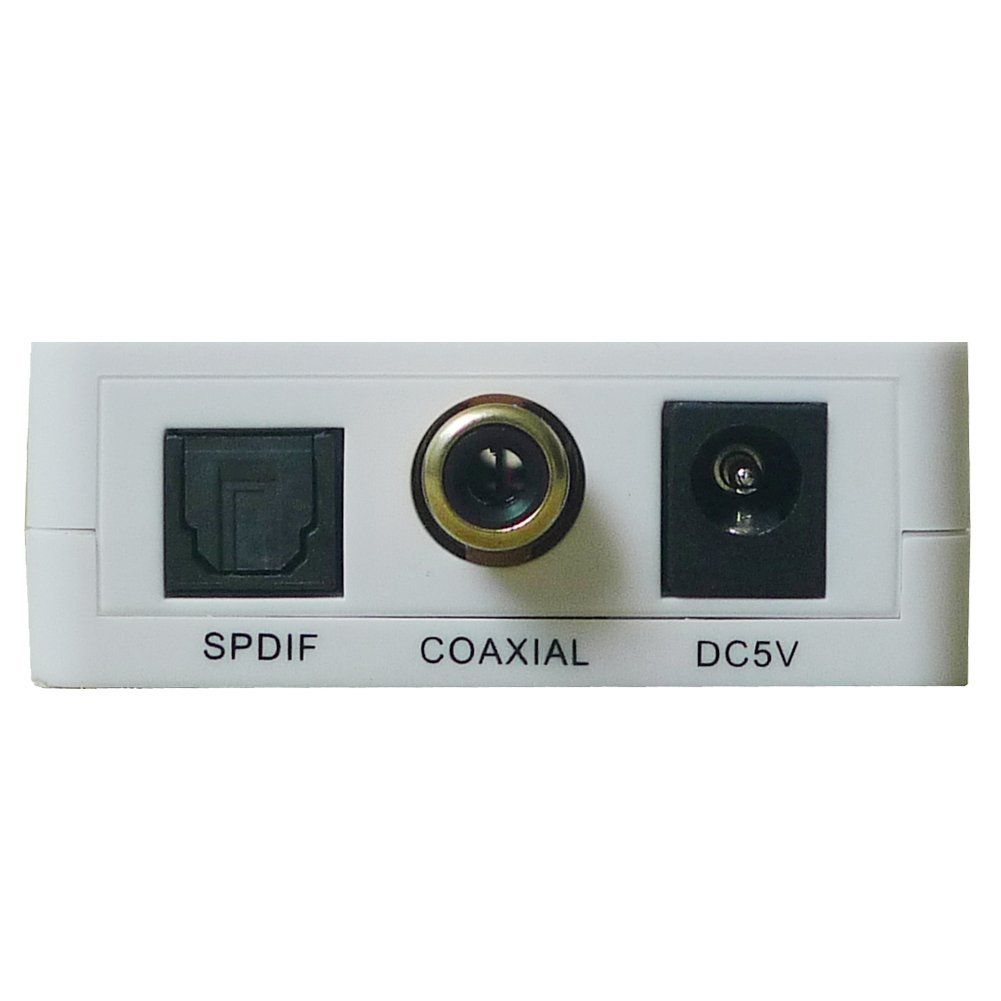

- Input port: DC in, Optical (TOSlink), Coaxial

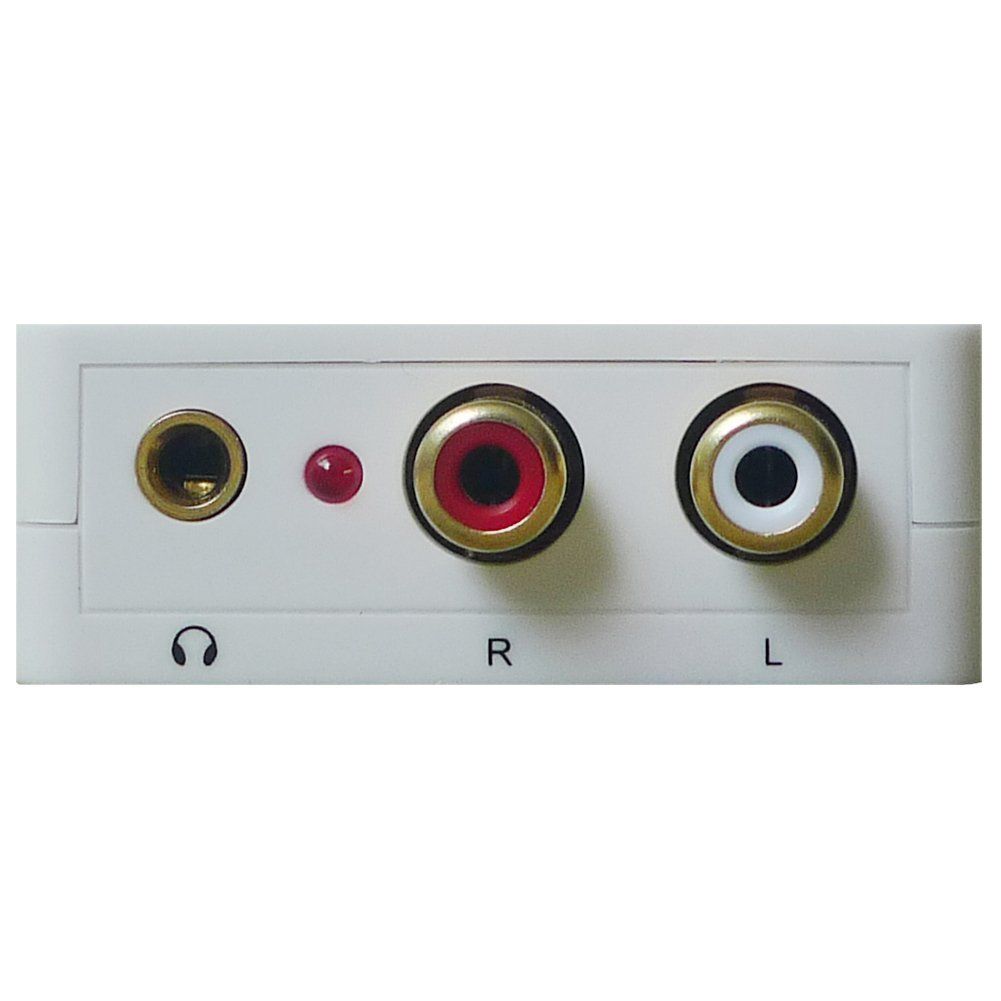

- Output port: L/R RCA, 3.5mm analog audio.

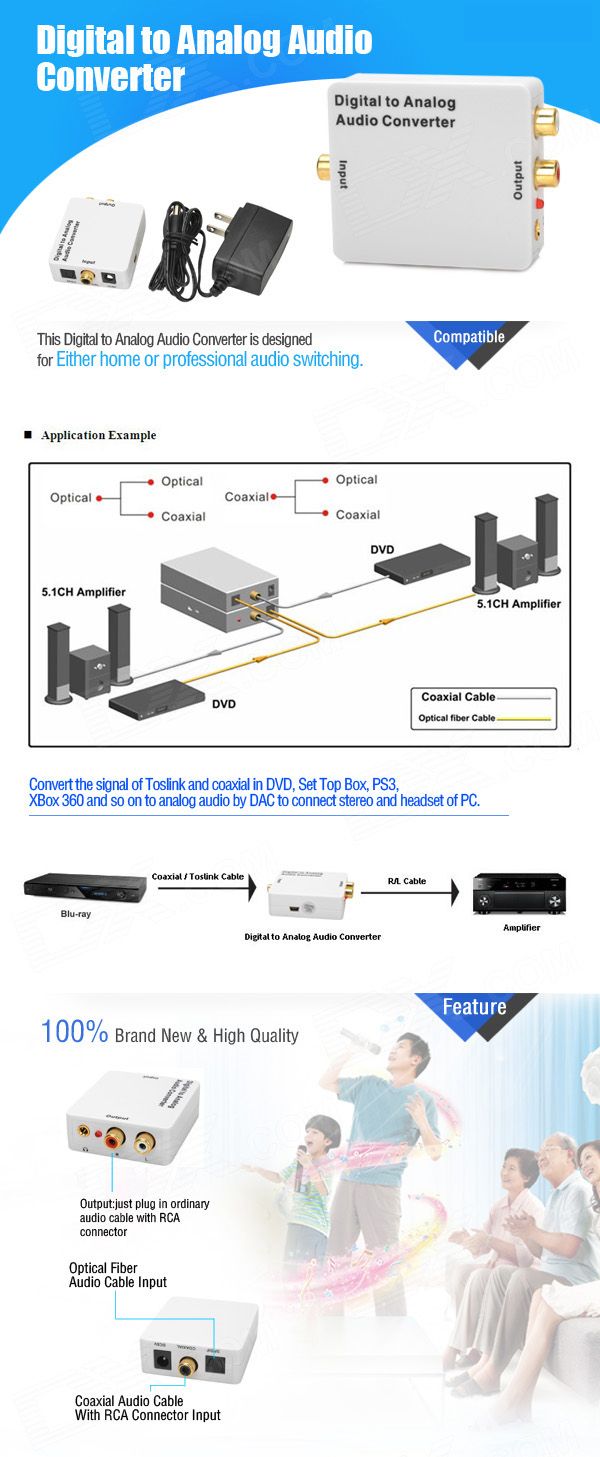

This Digital to Analogue Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analogue L/R audio and available for connexion to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to instal.
This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
- 1. Converts Coaxial or Toslink digital audio signals to analogue L/R audio
- 2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.
- 3. 24-bit SPDIF incoming bit stream on left and right channels
- 4. Provides electromagnetic-noise-free transmission.
- 5. Easy to instal and simple to operate.
Specification
| Model | HDA-2MB |
| Color | White |
| Material | Plastic |
| Interface Type | SPDIF, Coaxial, RCA |
| Power Supply | 2-Flat-Pin plug / 100~240V / 0.15A |
| Certification | CE / FCC / RoHS |
| Support sampling rate | 32KHz, 44.1KHz, 48KHz, 96KHz. |
| I/O ports: |
Input ports:
Output ports:
|
| Packing List | 1 x Audio converter 1 x 2-Flat-Pin plug power adapter (147cm-cable) 1 x English user manual |
Additional information
| Weight | 11 kg |
|---|---|
| Manufacturer | |
| Power Supply | |
| Accessories | 5V/1A DC power adapter<br>operation manual |
| size | 73*55*20 |
| Box Size | |
| Carton Meas. | |
| color | Black |
