ICT 3Q8
Roll over image to zoom in
2 350,00$

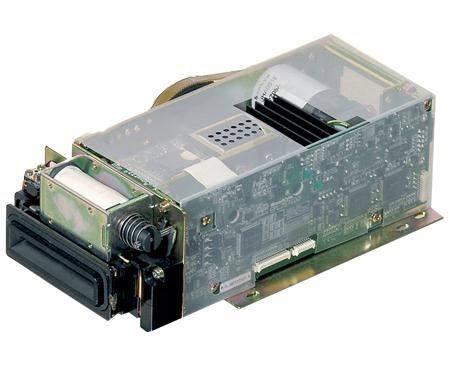

Automated hybrid device for reading magnetic, microprocessor and contactless cards.
ICT 3Q8 is a motorized reading / writing device for three-track magnetic cards (ISO / IEC 7811) and chip cards (ISO / IEC 7811) equipped with a high-performance magnetic head and a contact mechanism for chip cards with a high time between failures.
The devices are equipped with anti-vandal chemical-resistant stainless steel curtain, which completely covers the slot and is equipped with a mechanical card width detector and a two-track magnetic pre-reading head.
Devices can be equipped with RS232 and USB interfaces.
ICT 3Q8 are equipped with 1 SAM socket on the board; It is possible to expand their number to 4 by installing external SAM sockets.
These card readers are designed for installation in ATMs, multi-functional kiosks, vending machines and other self-service devices.
Specification
|
Type of |
Motorized |
|
Magnetic card |
Reading 3 tracks (ISO7810 / 11) |
|
Chip card |
Read / write |
|
EMV4.0 |
Certified |
|
Shutter |
Fully closing steel safety shutter |
|
Card detection |
Card width sensor and pre-read head for magnetic strip |
|
Dll |
Is available |
|
Power supply |
+24 Vdc |
|
Interface |
Serial RS232 / USB |
|
Additions |
Expansion to 4 external SAM sockets |
|
Dimensions |
111.5 x 217.3 x 67.9 mm |
|
MTBF time |
1M cycles |
|
Card capture function |
Is available |
Additional information
| Manufacturer |
|---|
