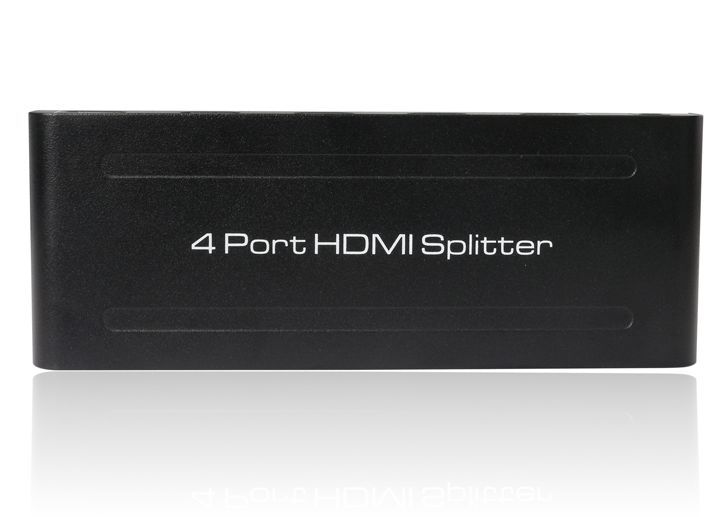

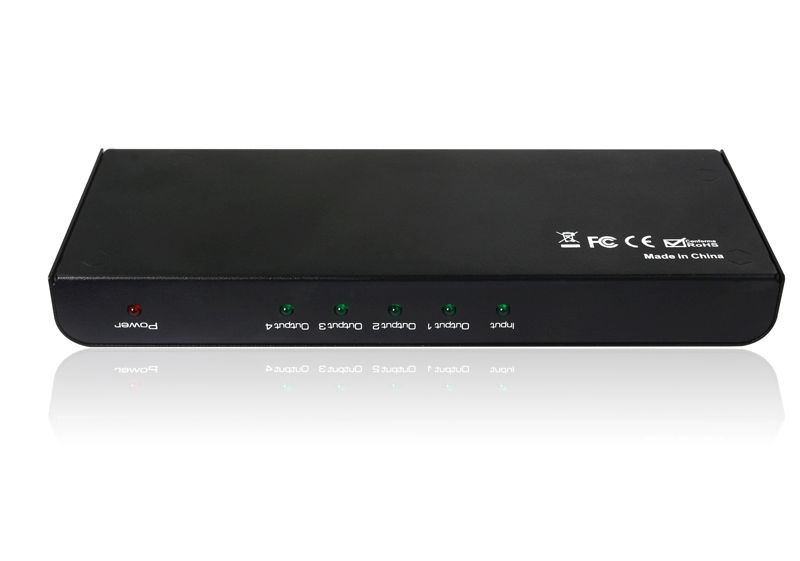

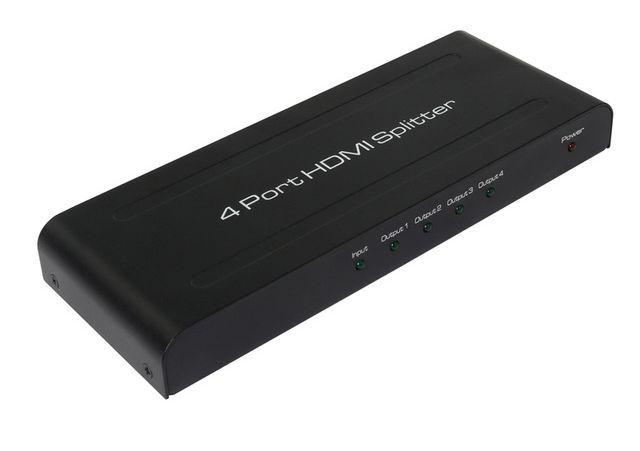

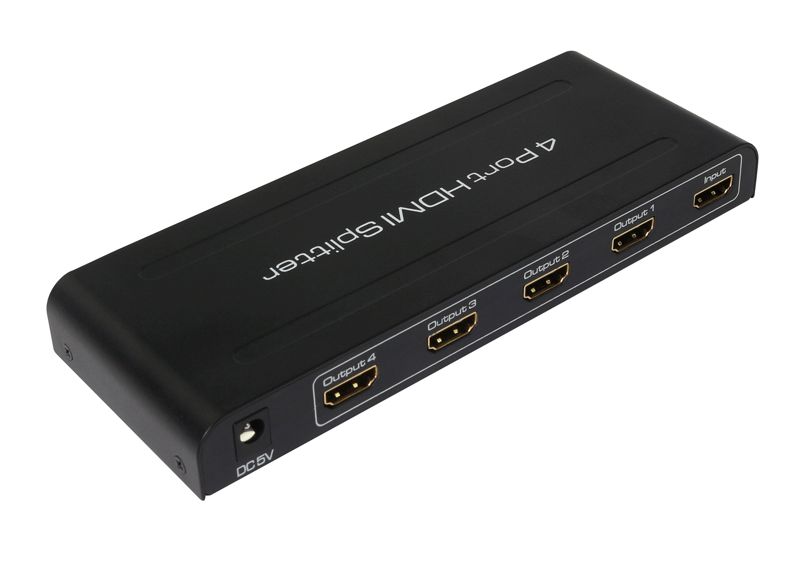

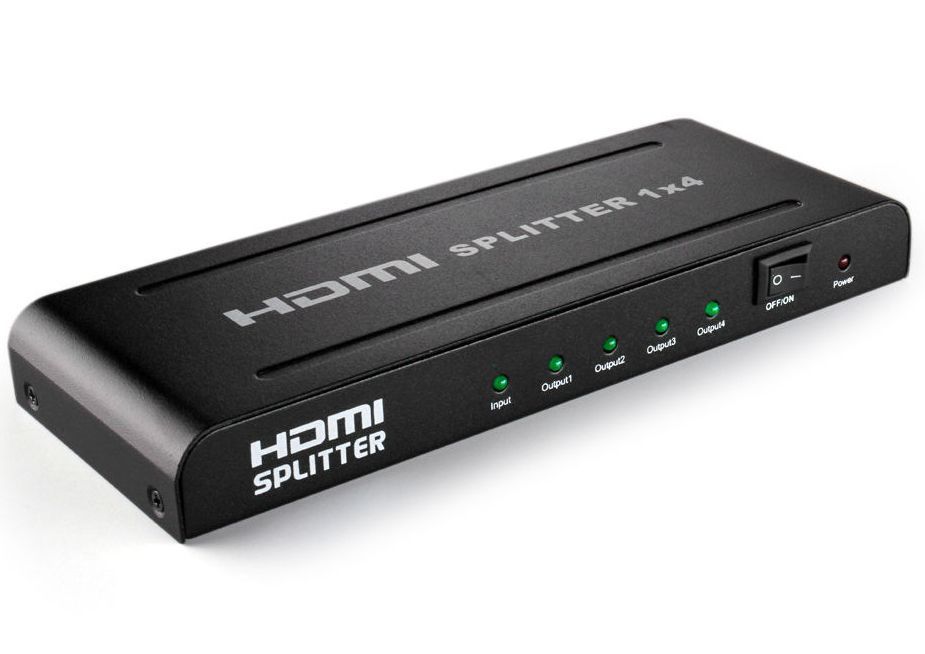

HDMI Splitter 1×4 HDMI Support Full HD, 3D, CEC

FEATURES:

• One HDMI input signal split to four HDMI sink devices
• Support  Full HD, Full 3D
• Support CEC
• Support deep color 30bit, 36bit
• Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
• Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Support signal retiming
• Support input up to 15metres AWG26 HDMI standard cable length,output up to 20metres AWG26 cable length
• No loss of quality
• Installs in minutes
• Power supply DC5V/1A

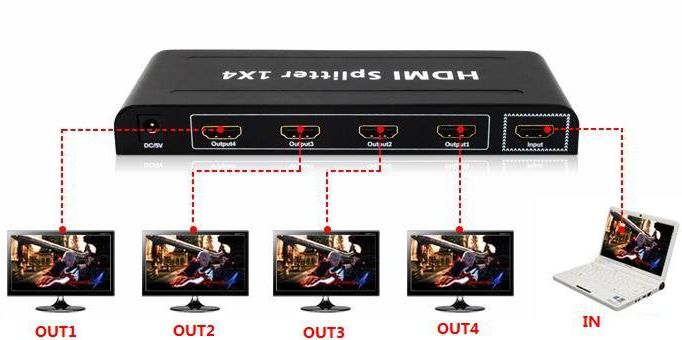

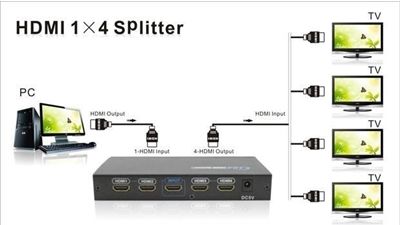

Operating and Connecting:

1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1×4 Splitter.

SPECIFICATIONS:

• HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Support video color format: 24bit/deep color 30bit,36bit
• Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Max bandwidth: 340MHz
• Max baud rate: 10.2Gbps
• Input/Output TMDS signal:  0.5~1.5Volts p-p(TTL)
• Input/Output DDC signal:  5Volts p-p (TTL)
• Input cable distance: ≤15m HDMI AWG26
• Output cable distance: ≤20m AWG26 HDMI standard cable
• Max working current: 600mA
• Power adapter format:
• Input: AC (50HZ, 60HZ) 100V-240V;
• Output: DC5V/1A
• Operating Temperature range: (-15 to +55 Celsius)
• Operating Humidity range: 5 to 90%RH (No Condensation)
• Dimension (L x W x H): 180X68X21(mm)
• Weight: 262g
