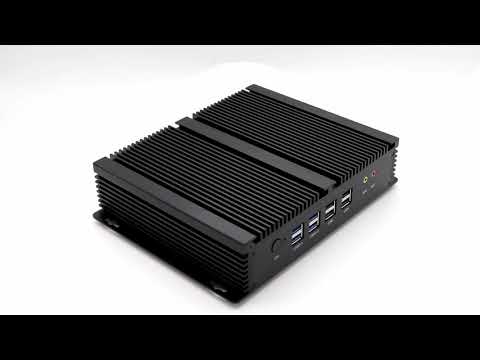

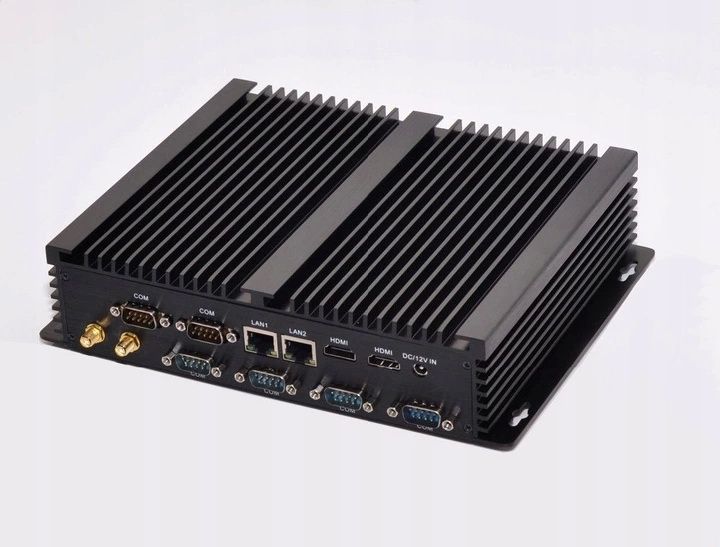

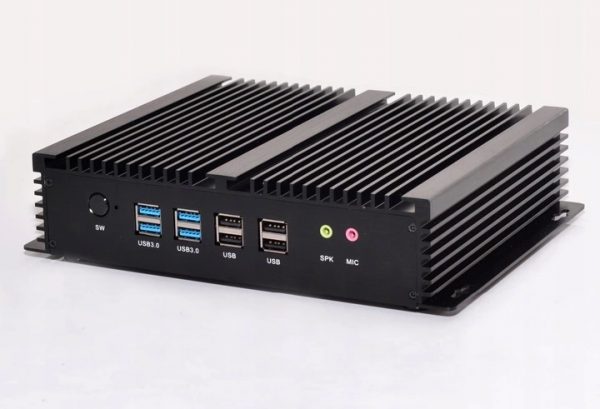

Industrial mini PC with powerful Intel i7 5500U processor,  8G RAM, 128G SSD, 2xRJ-45 and 6xRS232

Efficient fanless computer with passive cooling for industrial applications: in commerce, production, offices. Well equipped with interfaces for connecting different peripherals (6 x RS232!)

Features and benefits:

• fanless mini PC with passive cooling and with Intel Core i7 on board
• Wireless communication: 300MB WiFi with 2 antennas
• Operating system:  Optional: Windows 7, Windows 10, Ubuntu Linux
• Languages: Available in many languages ​​(> 32)
• Cooling: no fan

What can this mini computer do?

• Office work: MC Office, Skype, Google, Outlook and other app. to handle the workplace and work perfectly;
• Design work: Photoshop, CoreL DRAW, Dreamweaver, ILLustrator, Flash, Indesign and others.
• Games: support for most online games and PC games such as Dota 2, Counter-Strike (CS), World of Warcraft (WoW), etc. 3D game support.
• Entertainment: Supports blu ray 1080P, KODI and other video playback.

Specifications:

• Chipset: Intel QS77 Express
• Processor: Intel Core i7 5500U
• Graphics processor: Intel® HD Graphics 6000, Blu-ray 1080P support
• Basic code: Broadwell-U

• Technique: 14 nm
• Cache (cache):
• – L1 – 2 x 32kB
• – L2 – 2 x 256kB
• – L3 – 4MB
• BIOS: AMI BIOS, Supported by ACPI
• Support for the function call automatically
• Wake-on-LAN support
• Features: Hyper-Threading, virtualization technology, 64-bit processing
• Memory: 8Gb, 2 x DDR3L SDRAM memory slots (Up to 16 GB DDR3L 1333/1600)
• Storage: SSD: 128Gb (HDD: 500GB / 1TB (Optional)
• Sound card: ALC892 HiFi, 6-channel sound
• WiFI with dual antenna, 802.11b / g / n

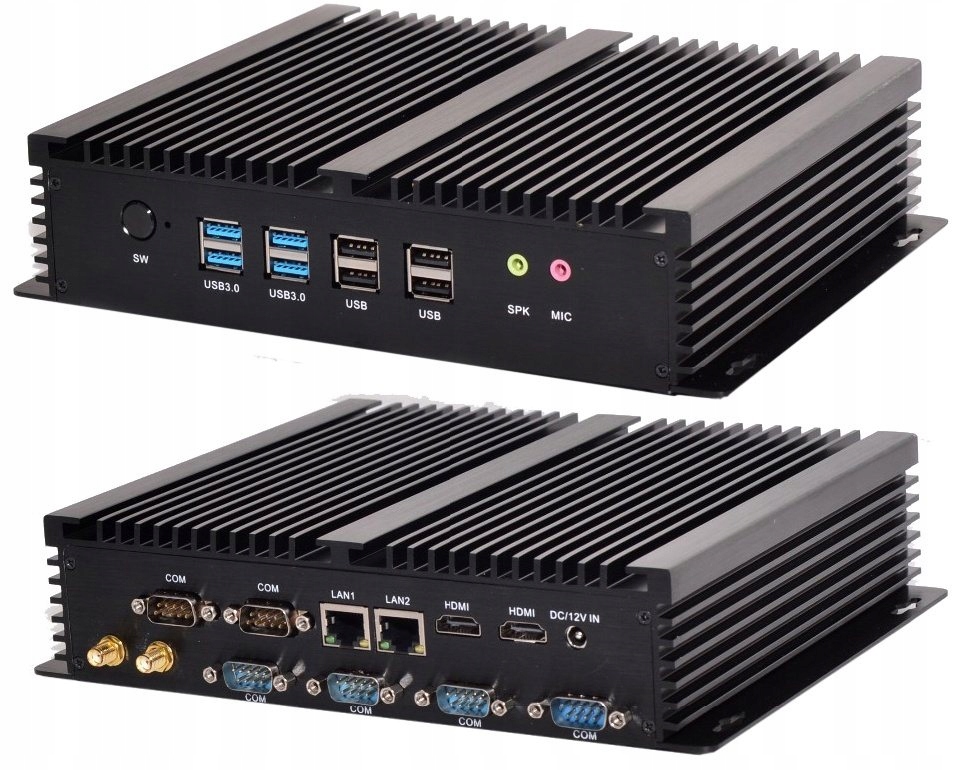

• Entry / Exit Ports:
• Display ports:

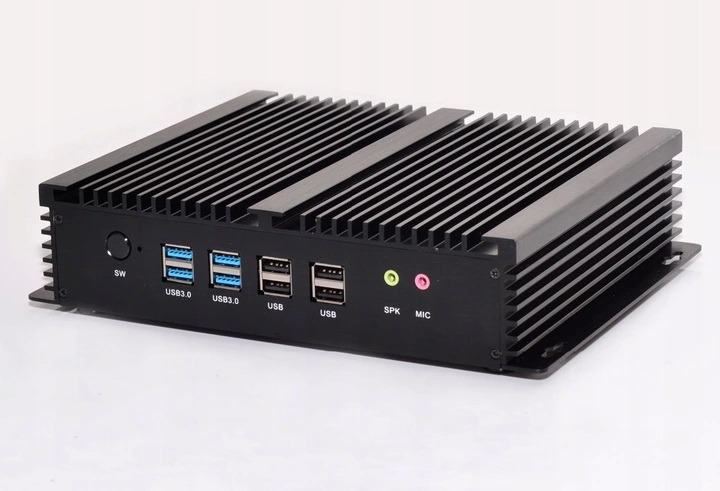

• USB ports:
• – 4 x USB 3.0
• – 4 x USB 2.0

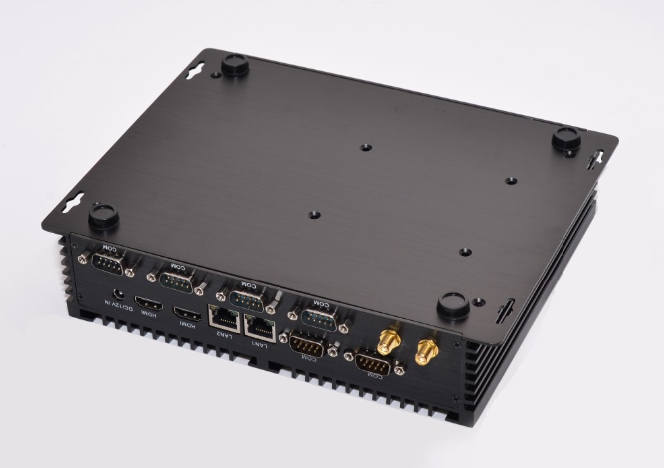

• COM ports:
• 6 x RS232
• SATA ports:
• – 1 x MSATA 3.0, 6 Gb / s;
• – 1 x SATA 3.0, 6 Gb / s
• Operating system:
• – Default installed: Windows 7 (without license),
• – Optional: Windows 7/10 Home / Pro, or Linux
