Splitter HDMI 1×4 HDMI VIDEO WALL CVBS VGA HDMI USB HDV-TW14

Splitter HDMI 1×4 HDM TV Wall support CVBS/VGA/HDMI/USB play input sources to be freely arranged on 4 displays. The embedded scaler converts signals from the input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to 1920×1080. All the operation and control can be done through IR, Ethernet and RS-232.
The HDMI TV Wall is widely used in KTV, hotels, bars, leisure centers, shopping malls, television stores ,cinemas, products display, media advertising, building, education and training, Brand stores, airports, subway, etc.

Characteristic:

• Compatible with HDMI1.3, DVI1.0;
• Output divided into 4 screens (2×2 video screen) bezel correction;
• Supports management via infrared, Ethernet and RS232;

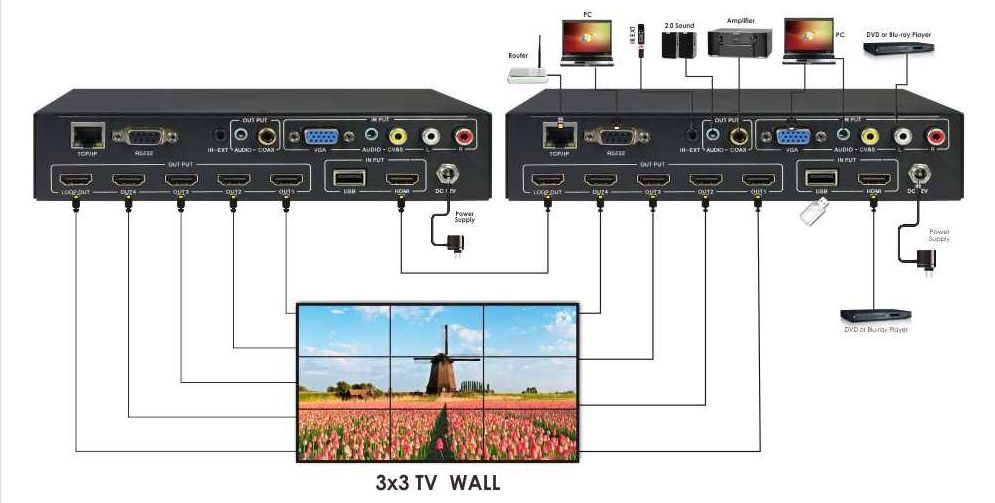

• Supports cascading of 9 video display monitors (3×3);
• Supports CVBS / VGA / HDMI and USB – video, audio and offended;
• Advanced video deinterlacing for 480i and 576i improve SD video input;

Input formats:

• CVBS: PAL, NTSC, SECAM with stereo audio;
• VGA: 640×480 @ 60Hz, 60Hz 1024×768 800×600 @ 60Hz, 60Hz 1280×1024 @ 60Hz 1280×720 to 1360×768 at 60 Hz to 60 Hz 1440×900, 1680×1050 @ 60Hz 1920×1080 @ 60Hz with music audio equipment;
• HDMI 1080p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 720p @ 50 / 60Hz, 576i / p, 480i / p, 640×480 at 60 Hz, 60 Hz 800×600 1024×768 @ 60Hz, 60Hz 1280×1024 @ 60Hz 1280×720 to 1360×768 @ 60Hz 1440×900 @ 60Hz, 60Hz @ 1680×1050, 1920×1080 at 60 Hz;
• USB: MPEG, H.264, RM / RMVB, JPEG, BMP, PNG, MPEG1 / 2, MP3;
• The maximum output resolution 1080p60Hz;
• Ideal as a divider screen, video converter and video switcher;

Specifikations:

Package Contents:

• HDMI 1 x4 TV Wall 1pcs
• 12V/2.5A DC power adaptor 1pcs
• Operation Manual 1pcs
• 38KHz IR Receiver cable 1pcs
• TV Wall Remote 1pcs
• RS232 cable 1pcs
