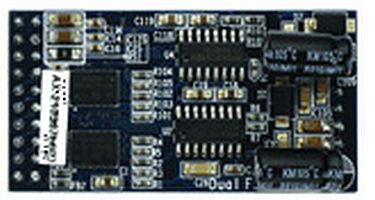

Dual FXS module FXS 200

Specification:

– Fully support Asterisk/Trixbox/Elastix
– Support zaptel/Dahdi driver
– 8 dual FXO/FXS modules , each module supports 2 ports , total 16 FXO/FXS interfaces
– 16 RJ11 interfaces via expand RJ45-RJ11 converter
– 16 ports for connecting POTS lines or analog telephones
– PCI 2.2 compliant
– Suitable for SOHO PBX / VoiceMail / IVR.

Content:

– 1 x 1600P motherboard
– 8 x Dual FXO/FXS modules
– 4 x Converter ( RJ45 ->RJ11)
– 4 x Cables (RJ45)
– CD manual

–Description:

The Asterisk card 1600P is a half-length PCI 2.2-compliant card that supports FXS and FXO station interfaces for connecting analog telephones and analog POTS lines through a PC.
-It’s a PCI Card for Asterisk, TrixBox,Elastix and other Open Source Telephony projects
-The card is fully compatible with all analog Digium and other similar analog cards and modules with no changes to the drivers.
-FXO modules are used to plug existing analog telephone lines into your phone system.
With the Asterisk card X1600P, Open Source Asterisk PBX software and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment which includes all the sophisticated features of a high-end PBX/Voicemail platform.
Scalable and Effective SOHO Solution, Target Applications
-Small Office Home Office (SOHO) applications
-Gateway Termination to Analog Telephones
-Add Inexpensive Analog Phones to Existing PBXs
-Wireless Point-to-Point Applications between Asterisk Servers
Services and Features
-Caller ID and Call Waiting Caller ID
-ADSI Telephones
-PCI Half-length Slot
-RJ-11C Connector

Modules
Motherboard: X1600P
FXO module(FXO-200): 0~8 pcs ( Each module supports dual channels)
FXS module(FXS-200): 0~8 pcs ( Each module supports dual channels)

Size
25.5X12X2 cm

	OEM services
		Label, Sticker
		Logo silk screen printing
		Customized gift box
		Re-designing PCB
